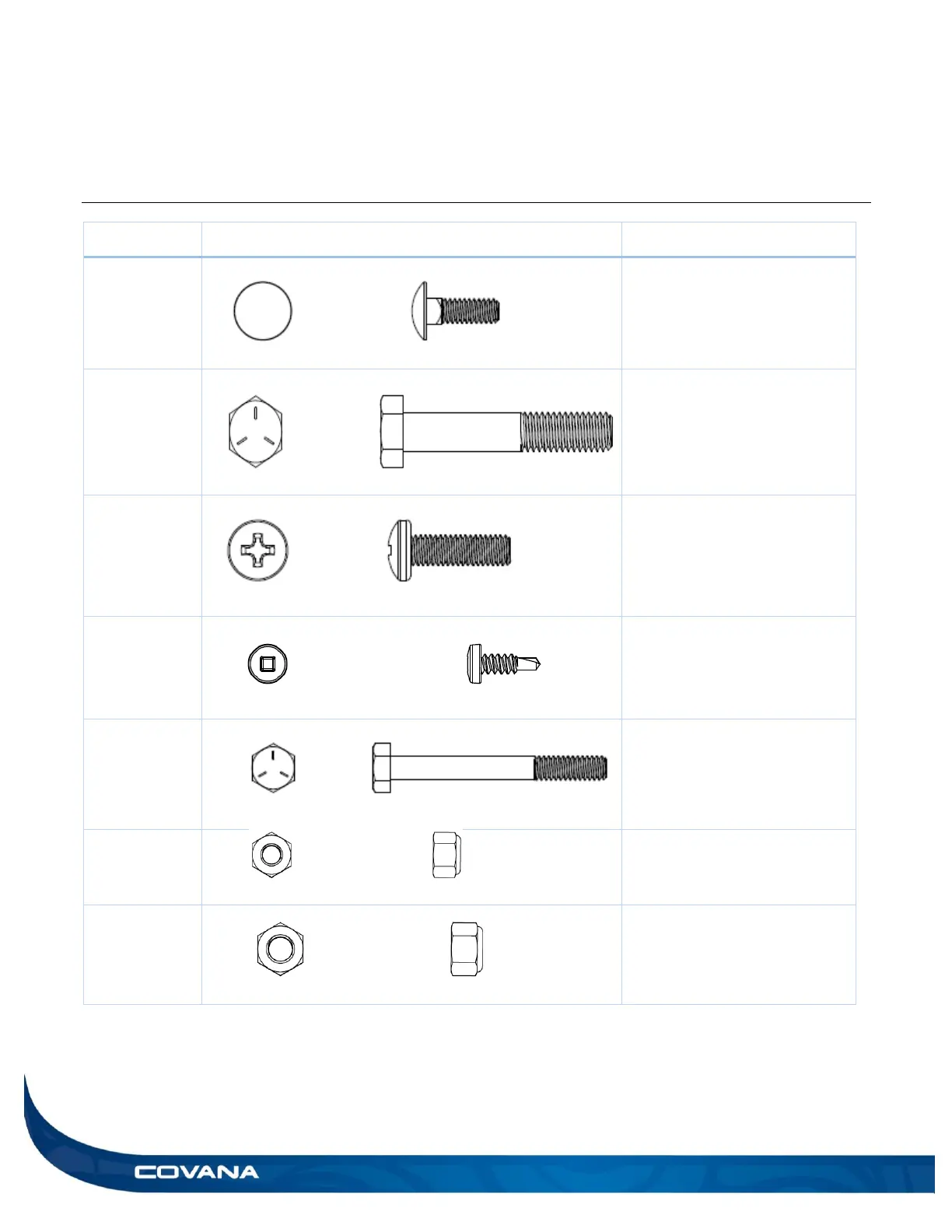

HARDWARE IDENTIFICATION TABLE
Quantity
Visual representation
Description
4
1/4″-20 x 3/4″ carriage bolt
used to assemble the front
frame cut-out.
17
5/16″-18 x 2″ hexagonal bolt
used to assemble the lower
frame.
19
M6 x 20 mm screw used to
hold the inner and outer shell
together.
17
#8 x 1/2″ self-drilling Robertson
screw used to fasten the inner
sleeve to the Covana cover.
4
1/4″-20 x 2 1/4″ hexagonal bolt
used to assemble the feet of
the posts.
8
1/4″″-20 Nylon- insert locknut.
Used to assemble the feet of
the posts and the front cut-out.
17
5/16″-18 nylon-insert locknut
used to connect the U-frames.
