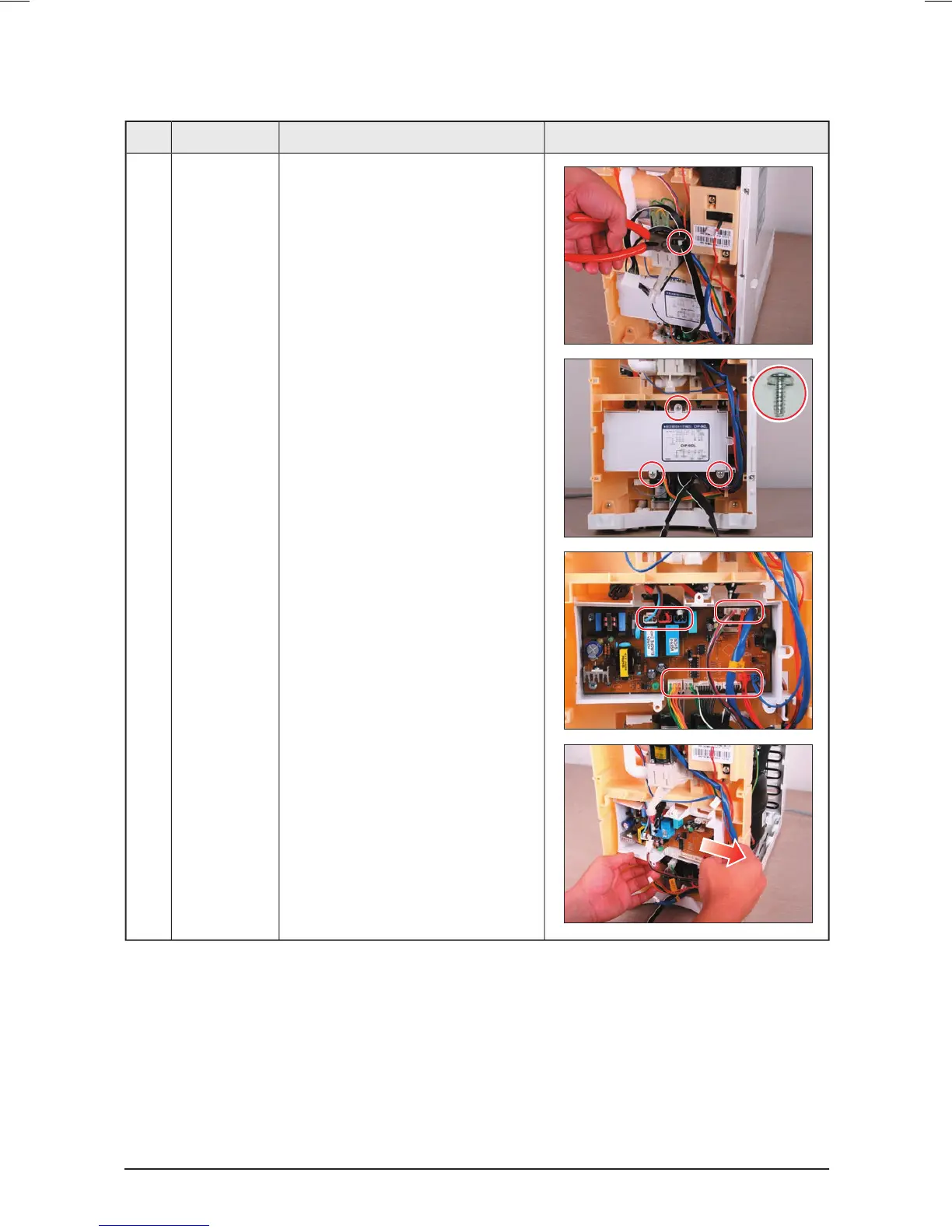

4-2-5 Separating the front cover part (2)
No. Part name Explanation Reference picture
1 Main PBA
assy
1) Cut the cable tie using a nipper
.
2) Remove the 3 screws from the
main PBA assy.
: 3-4x12 T
AP
3) Separate all connectors
connected to the main PBA assy.
4) Pull out the main PBA assy
toward the front and then
separate it in the right-hand
direction.
