Fault diagnosis
Coway co., Ltd
5-19
4. Extracting a set quantity
In a set quantity extraction, the extraction quantity is maintained at a set level by controlling the
extraction valve when cold, hot, or room temperature water is selected and the extraction switch is
inputted once (100ms).
If the extraction switch is inputted once again, the extraction stops.
When an error occurs, the error display and its function takes priority.

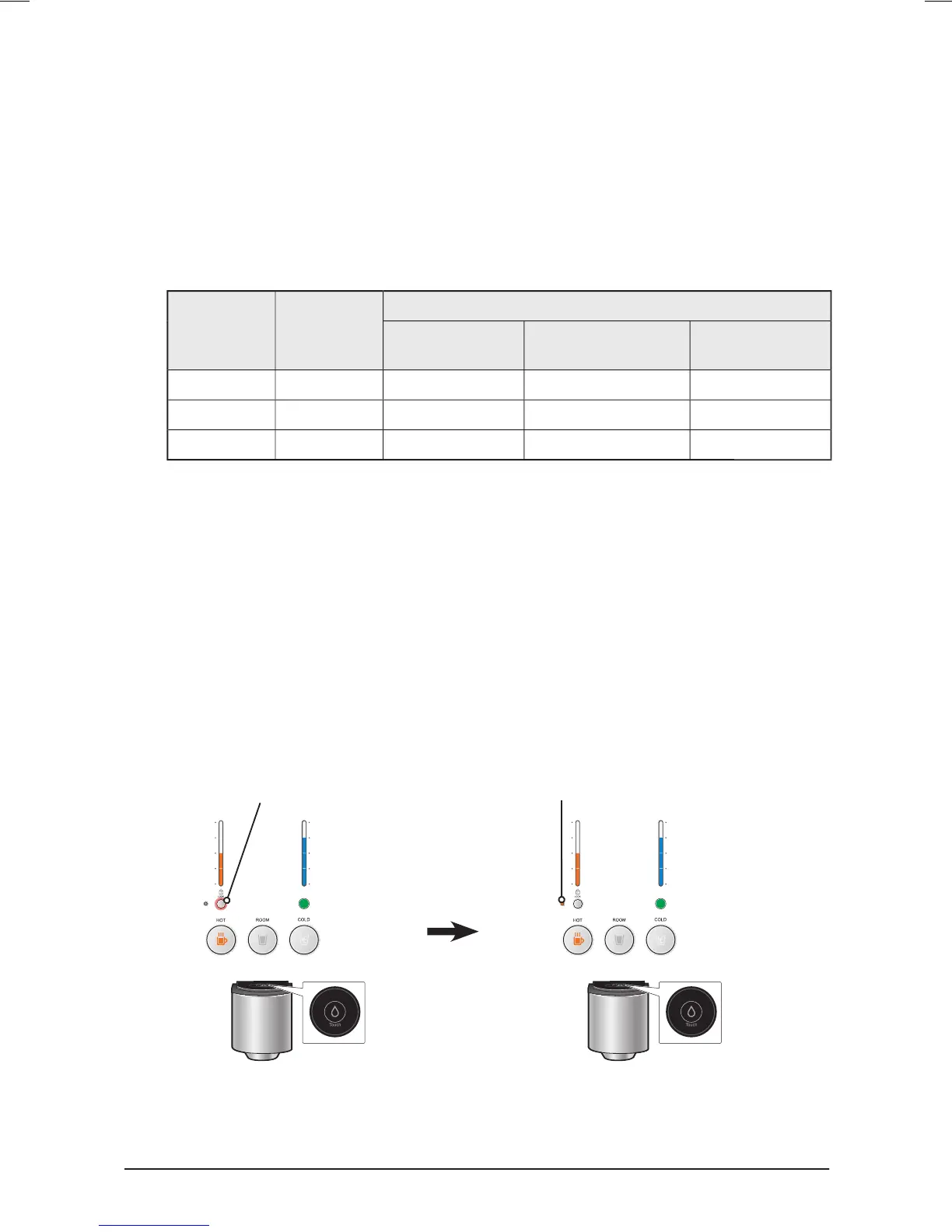

1) Set quantity extraction steps (DEFAULT-120cc)
Low water
level sensor
full water
level sensor
Extraction V/V ON_TIME (sec)
Hot water
Room temperature
water
Cold water
OPEN OPEN 5.6 5.1 5.6
SHORT
OPEN 5.3 4.8 5.3
SHORT
SHORT 5.1 4.6 5.1
The extraction time changes according to the set quantity extraction adjustment.
(See page 5-21)
5. Extracting water continuously
When extraction switch is detected continuously for 2 seconds (2000ms), the continuous extraction
(1 minute) starts.
If the extraction switch is inputted once again, the extraction stops.
When an error occurs, the error display and its function takes priority.
Hot water lock function
1. Setting the hot water lock
It is the function that controls the hot water extraction according to the hot water lock switch setting.
When the hot water lock function is set, the hot water can be selected but its extraction does not
operate.
If the hot water extraction switch is on in the hot water lock mode, the bell sounds “ding-ding-ding”
and the hot water lock LED flashes three times in 1 second.
Bell: sounds “ding.”
Hot water lock switch ON
(Effective sensing time 1000ms)
Hot water lock LED is ON
CHP-06DL-eng.indb 19 2007-10-22 ソタタ・9:13:21
