ResMed Air 10 & S9 Series Devices
ResMed Air 10 and S9 series devices operate from 24V direct current and
the Freedom
TM
CPAP Battery provides 12V direct current; therefore, the
use of a 24V power converter is required in conjunction with the battery.
Our 24V power adapter was designed specifically for use with ResMed
Air 10 and S9 series devices and the Freedom
TM
CPAP Battery.
REQUIRED COMPONENTS
 Freedom
TM
CPAP Battery Kit
 ResMed 24V Power Converter

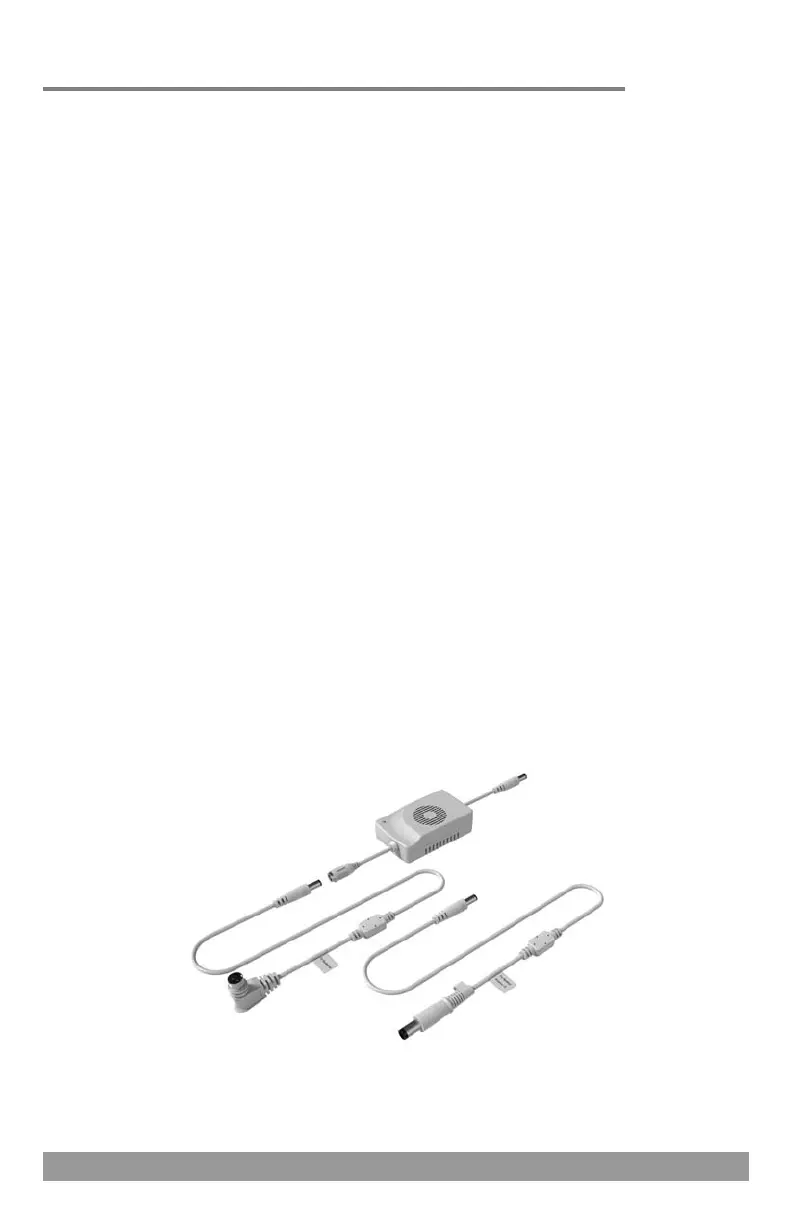

24V RESMED POWER CONVERTER
The 24V power converter includes the converter box and two output cords.
Each output cord has a tag attached to it noting which device it fits -
either ResMed Air 10 or ResMed S9 series devices.
Set the converter box and the appropriate output cord for your device aside.
Do not connect the output cord to the converter box yet as the converter
box must be connected to the Freedom™ battery first. See the connection
instructions on the following pages.
CONVERTER BOX

S9 SERIES
OUTPUT CORD

AIR 10 SERIES
OUTPUT CORD

HDM Z1 Series Devices
HDM Z1 series devices can be connected to the Freedom™ CPAP Battery
via the 150W sine wave power inverter.
REQUIRED COMPONENTS
 Freedom
TM
CPAP Battery Kit
 150W Sine Wave Power Inverter (power inverter)
Due to the initial power draw required to start the device the connection
instructions below must be followed in exact sequence in order to
prevent “tripping” the internal circuitry of the battery. If the battery does
shut down disconnect all components, press the charge level indicator
button to reset the battery and follow the instructions in exact sequence.
SINGLE BATTERY CONNECTION
 Plug the DC input cord into the DC OUT jack of the battery.
 Plug the power inverter into the DC input cord.
 Plug the AC power supply of the PAP device into the power inverter.
 Plug the AC power supply into the PAP device.
 Turn the PAP device on and it should begin functioning.
 The digital display screen will show the charge level of the battery.
You may press the charge level indicator button to illuminate this
screen. It will stay illuminated for a few seconds at a time.
22
150W SINE WAVE
POWER INVERTER

DC INPUT CORD

PAP AC
POWER SUPPLY

DC OUT JACK

