Respironics DreamStation Series Devices
DUAL BATTERY CONNECTION
Dual battery connection will require an additional Freedom
TM
CPAP Battery.
 Plug the 12V power adapter into the DC power pigtail cord.
 Plug the DC power pigtail cord into the DC OUT jacks of both batteries.
 Plug the 12V power adapter into the DC input port of the PAP device.
 Turn the PAP device on and it should begin functioning.
 The digital display screen will show the charge level of the battery.
You may press the charge level indicator button to illuminate this
screen. It will stay illuminated for a few seconds at a time.

DC OUT JACKS

12V POWER ADAPTER
PAP DC INPUT PORT

DC POWER
PIGTAIL CORD

25
Other PAP Device Models
DUAL BATTERY CONNECTION
Dual battery connection will require an additional Freedom
TM
CPAP Battery.
 Plug the DC power pigtail cord into the DC OUT jacks of both batteries.
 Plug the DC input cord into the DC power pigtail cord.
 Plug the power inverter into the DC input cord.
 Plug the AC power supply of the PAP device into the power inverter.
 Plug the AC power supply into the PAP device.
 Turn the PAP device on and it should begin functioning.
 The digital display screen will show the charge level of the battery.
You may press the charge level indicator button to illuminate this
screen. It will stay illuminated for a few seconds at a time.
DC OUT JACKS
150W SINE WAVE
POWER INVERTER

DC INPUT CORD

PAP AC POWER SUPPLY


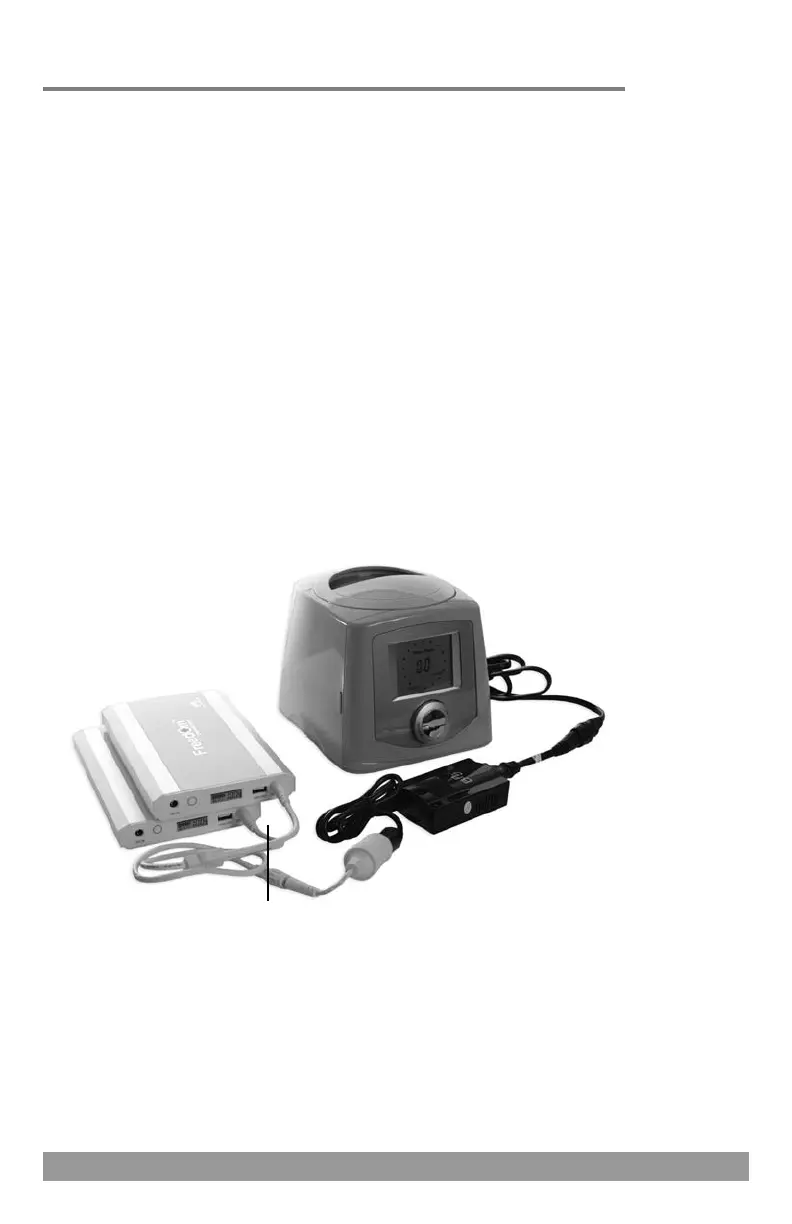

Image shows connection
to Fisher & Paykel ICON
series PAP device.

DC POWER
PIGTAIL CORD

