ResMed S8 Series Devices
DC POWER
PIGTAIL CORD
PAP AC POWER CORD
150W SINE WAVE
POWER INVERTER
DC INPUT CORD
DC OUT
JACKS
Although ResMed S8 series devices operate from 12V DC the DC input
ports run opposite polarity from the Freedom
TM
CPAP Battery; therefore,
the use of the 150W sine wave power inverter is required in conjunction
with battery. DO NOT connect a ResMed S8 device to the battery
without using the sine wave power inverter as doing so will cause
irreversible damage to the PAP device.

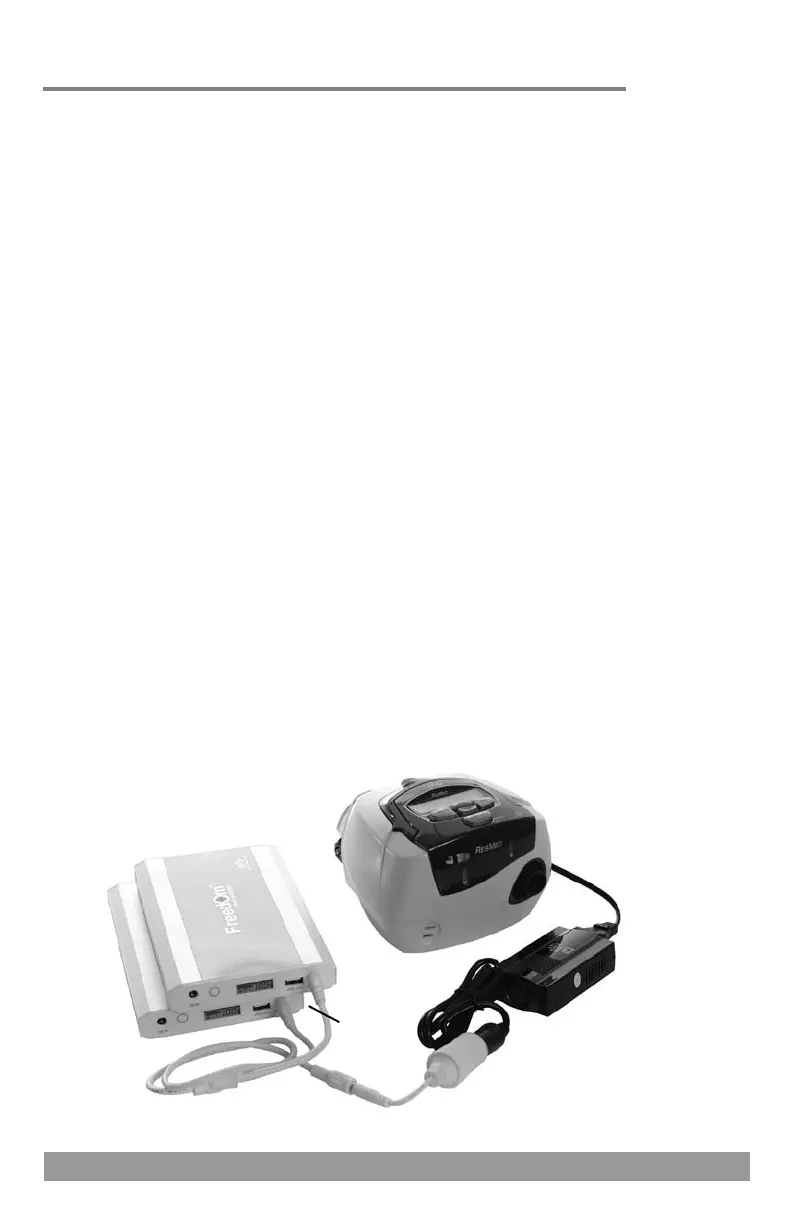

DUAL BATTERY CONNECTION
Dual battery connection will require an additional Freedom
TM
CPAP Battery.
Plug the DC power pigtail cord into the DC OUT jacks of both batteries.
Plug the DC input cord into the DC power pigtail cord.
Plug the power inverter into the DC input cord.
Plug the AC power cord of the PAP device into the power inverter.
Plug the AC power cord into the PAP device.
Turn the PAP device on and it should begin functioning.
The digital display screen will show the charge level of the battery.
You may press the charge level indicator button to illuminate this
screen. It will stay illuminated for a few seconds at a time.
17
18
DeVilbiss IntelliPAP Series Devices
DeVilbiss IntelliPAP series devices can be connected directly to the
Freedom
TM
CPAP Battery using the DC power pigtail cord and connector tip
“J” included in the Freedom
TM
CPAP Battery Kit. Note: IntelliPAP 2 series
devices must be connected to the Freedom™ CPAP Battery via the
150W sine wave power inverter.
REQUIRED COMPONENTS
Freedom
TM
CPAP Battery Kit
SINGLE BATTERY CONNECTION
Plug the DC power pigtail cord into the DC OUT jack of the battery.
Insert the connector tip with blue top labeled “J” into the DC power
pigtail cord.
Plug the DC power pigtail cord with “J” connector tip attached into the
DC input port of the PAP device.
Turn the PAP device on and it should begin functioning.
The digital display screen will show the charge level of the battery.
You may press the charge level indicator button to illuminate this
screen. It will stay illuminated for a few seconds at a time.
CONNECTOR TIP INSERTED
INTO PAP DC INPUT PORT
DC POWER PIGTAIL CORD
DC OUT JACK
