CPAP Freedom - HDM Z1 Series Devices - Dual Battery; Dual Battery Connection Steps & Caution

12
Respironics System One & M Series Devices
DC POWER
PIGTAIL CORD


DC OUT JACKS

CONNECTOR TIP
INSERTED INTO PAP
DC INPUT PORT

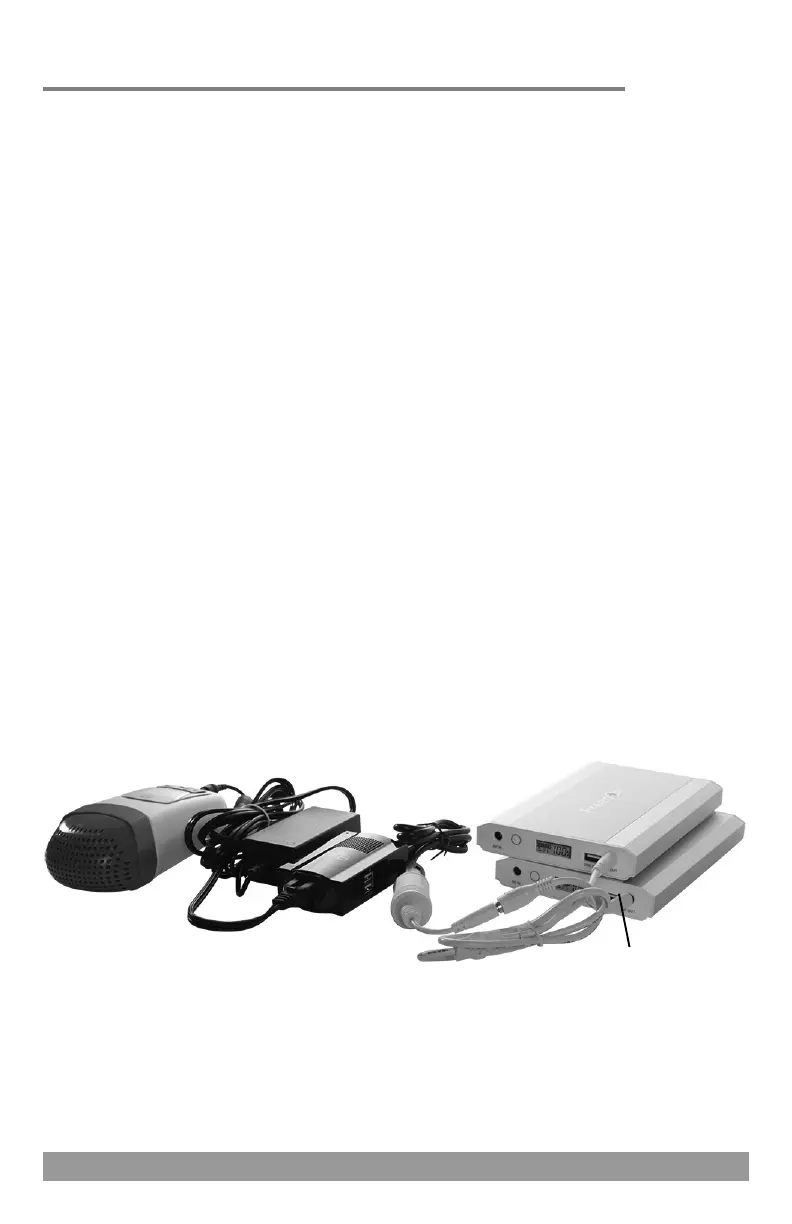

DUAL BATTERY CONNECTION
Dual battery connection will require an additional Freedom
TM
CPAP Battery.
 Plug the DC power pigtail cord into the DC OUT jacks of both batteries.
 Insert the appropriate connector tip into the DC power pigtail cord.
 System One 60 Series: Tip with black top labeled “W”
 System One 50 & M Series: Tip with yellow top labeled “N”
 Plug the DC power pigtail cord with appropriate connector tip attached
into the DC input port of the PAP device.
 Turn the PAP device on and it should begin functioning.
 The digital display screen will show the charge level of the battery.
You may press the charge level indicator button to illuminate this
screen. It will stay illuminated for a few seconds at a time.
Image shows connection
to Respironics System One
60 series PAP device.
23
HDM Z1 Series Devices
Due to the initial power draw required to start the device the connection
instructions below must be followed in exact sequence in order to
prevent “tripping” the internal circuitry of the battery. If the battery does
shut down disconnect all components, press the charge level indicator
button to reset the battery and follow the instructions in exact sequence.
DUAL BATTERY CONNECTION
Dual battery connection will require an additional Freedom
TM
CPAP Battery.
 Plug the DC power pigtail cord into the DC OUT jacks of both batteries.
 Plug the DC input cord into the DC power pigtail cord.
 Plug the power inverter into the DC input cord.
 Plug the AC power supply of the PAP device into the power inverter.
 Plug the AC power supply into the PAP device.
 Turn the PAP device on and it should begin functioning.
 The digital display screen will show the charge level of the battery.
You may press the charge level indicator button to illuminate this
screen. It will stay illuminated for a few seconds at a time.
DC POWER
PIGTAIL CORD

PAP AC
POWER SUPPLY
DC OUT JACKS



DC INPUT
CORD
SINE WAVE
POWER INVERTER

