Chapter 2 Overview
2.1 Inverter for Grid-tied PV Systems
3-Phase String Inverters are designed for use with carport, commercial
rooftop, and large-scale PV grid-tied systems. The system is generally made
up of PV modules, DC power distribution equipment, PV inverter and AC power
distribution equipment (Figure 2-1). The inverter converts the DC from PV
modules to AC with the same frequency and phase as the AC grid. All or part
of the AC power is supplied to local loads, and the surplus power is supplied to
the electricity grid.
Bidirectional
electric meter
AC power
distribution
equipment

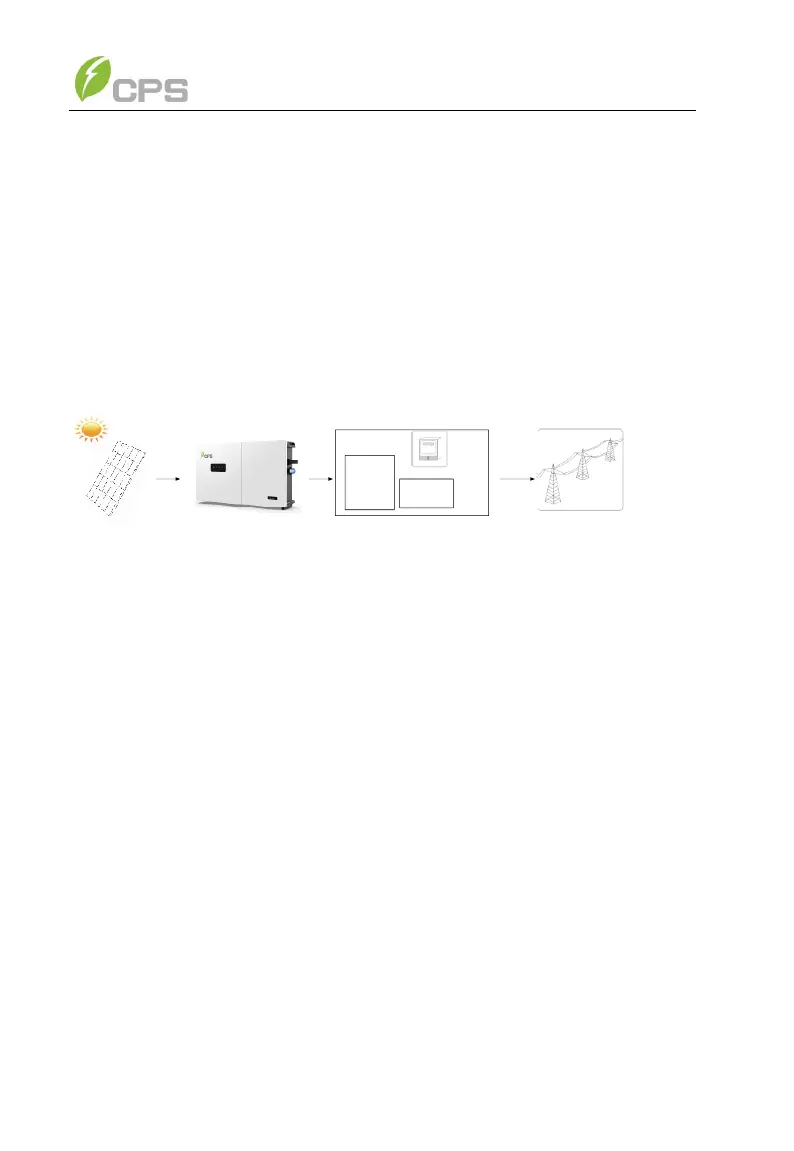

Figure 2-1 Grid-tied PV system
2.2 Product Features
◆ High conversion efficiency ： Advanced 3-level conversion technology with
SVPWM; Max. efficiency: 99%；CEC efficiency: 98.5%
◆ Grid adaptability: IEEE 1547, Rule 21, ISO-NE and HECO standards applicable
(Future); Reactive power adjustable; PF value: ±0.8, Remote Curtailment.
◆ Flexible communication: Supports standard Modbus RS485 and TCP/IP
communications to ensure compatibility with 3
rd
party monitoring and control
systems.
◆ Wide DC input voltage range：Operating DC Input Voltage Range: 860-1450Vdc
for CPS SCH100KTL-DO/US-600 and CPS SCH125KTL-DO/US-600 inverters;
750-1450Vdc for CPS SCH100KTL-DO/US-480 inverters; Max DC input voltage:
1500V
◆ Long Service Life: Uses thin-film and electrolytic capacitors to extend inverter's
service life.
◆ High protection degree: NEMA 4X enclosure meets the demanding needs of both
indoor and outdoor use.
◆ Intelligent Integration: Integrated load break rated DC disconnect switches, and
up to 20 fused string inputs eliminate the need for external combiner boxes,
simplifying installation.
