Chapter 3 Installation
Below is the installation procedure for the SCH100KTL-DO/US-600, SCH
125KTL-DO/US-600 and SCH100KTL-DO/US-480 inverters. Please read
carefully and install the products following the step-by-step instructions.
The inverter and other main items are shipped in two separate packages,
consisting of: A) The main inverter enclosure; B) The wire-box, mounting
bracket, user manual and accessory kit. Before installation, please check that
the following items are included in the packages:

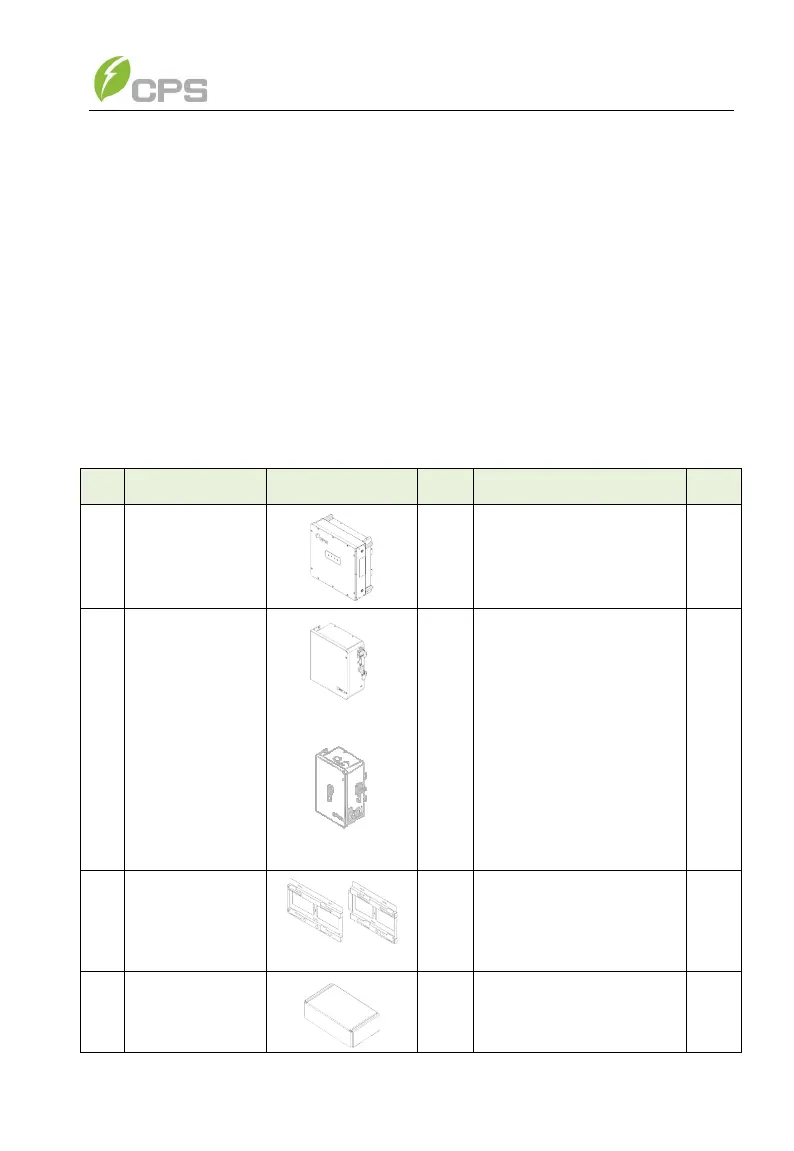

Table 3-1 Main Items
No.
Item
Figure
QTY
Note
Box
(1)
Main enclosure of
the PV inverter
1
The PV inverter
A
(2)
Wire-box of the PV
inverter
Standard wire-box
Centralized wire-box
1
Wire-box will vary depending on
the model ordered (Standard
wire-box with integrated DC fuse
inputs or Centralized wire-box
without DC fusing to be used with
external DC combiner)
B
(4)
Mounting bracket
1
Bracket to mount the PV inverter
(left bracket: inverter, and right
bracket: wire-box). Right bracket
will vary depending on the model
of wire-box ordered.
B
(5)
Accessory kit
1
Kit contains all necessary
hardware and accessories for
installation
B
