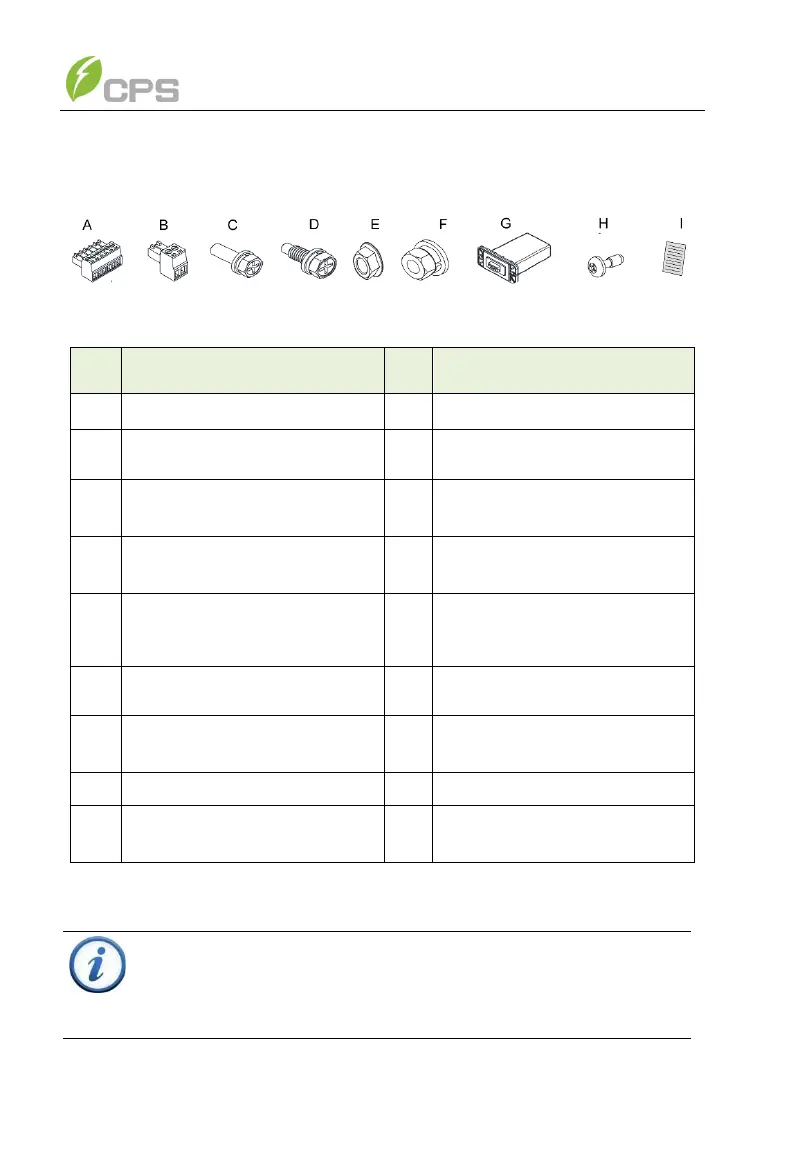

The Accessory kit (5) contains items listed below:
Table 3-2 Accessory Kit
No.
Item
QTY
Note
(A)
6-pin PCB connector plug
1
For RS485 communication
(B)
2-pin PCB connector plug
1
For power supply
(C)
M8x25mm machine bolts with integrated
lock washer
6
For mounting backet installation
(D)
M6x18mm Phillips screw
4
4 for inverter and mounting bracket; 1 for
Ground connection
(E)
M8 hexagon nuts with flange
7
To connect the left and right wall bracket,
and securing the main inverter to the wire-
box, 1 spare
(F)
M10 nut with flat gasket and spring
washer
3
For AC terminal connections
(G)
WiFi communication module
1
Enables mobile app interface via CPS
Connect Pro app
(H)
Philips screw
1
Spare (for wire-box cover)
(I)
User Manual
1
PV inverter installation and operation
manual
INSTRUCTION:
The items in the Accessory Kit Table 3-2 above are for the standard
configuration. The accessories provided may vary if optional parts are
purchased.
