2.6 Appearance and Main Item Description
Inverter with Centralized Wire-box
Inverter with Standard Wire-box

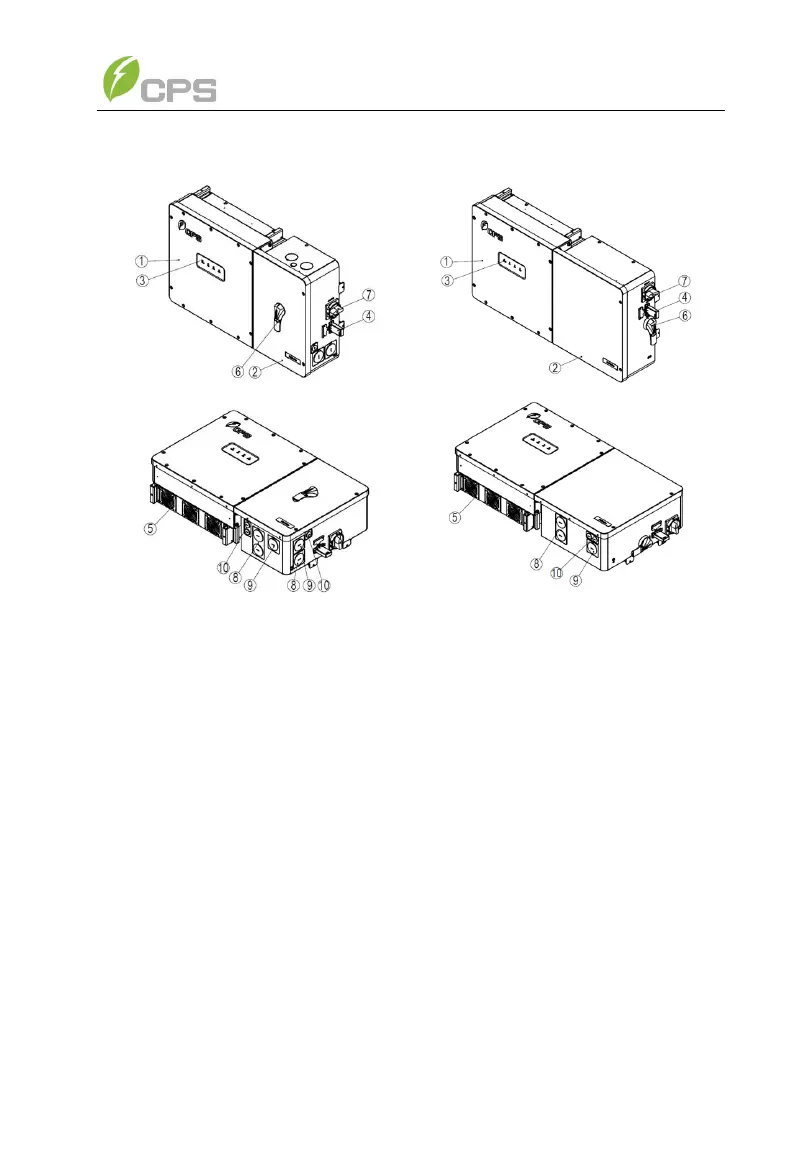

Figure 2-3 Appearance of the CPS SCH100/125KTL-DO/US-600 and SCH 100KTL-
DO/US-480 Inverters
Main items of the Inverter:
① Main inverter enclosure
② Inverter wire-box
③ LED indicator lights
④ WiFi module
⑤ Cooling fans
⑥ DC switch: DC power on/off
⑦ AC switch: AC power on/off
⑧ DC Input cable entry
⑨ AC output cable entry
⑩ Communication cable entry
