Po/Pn(%)
Ambient Temperature(℃)
45 50 55 60
100%
80%
60%
40%
20%
0
2%/℃

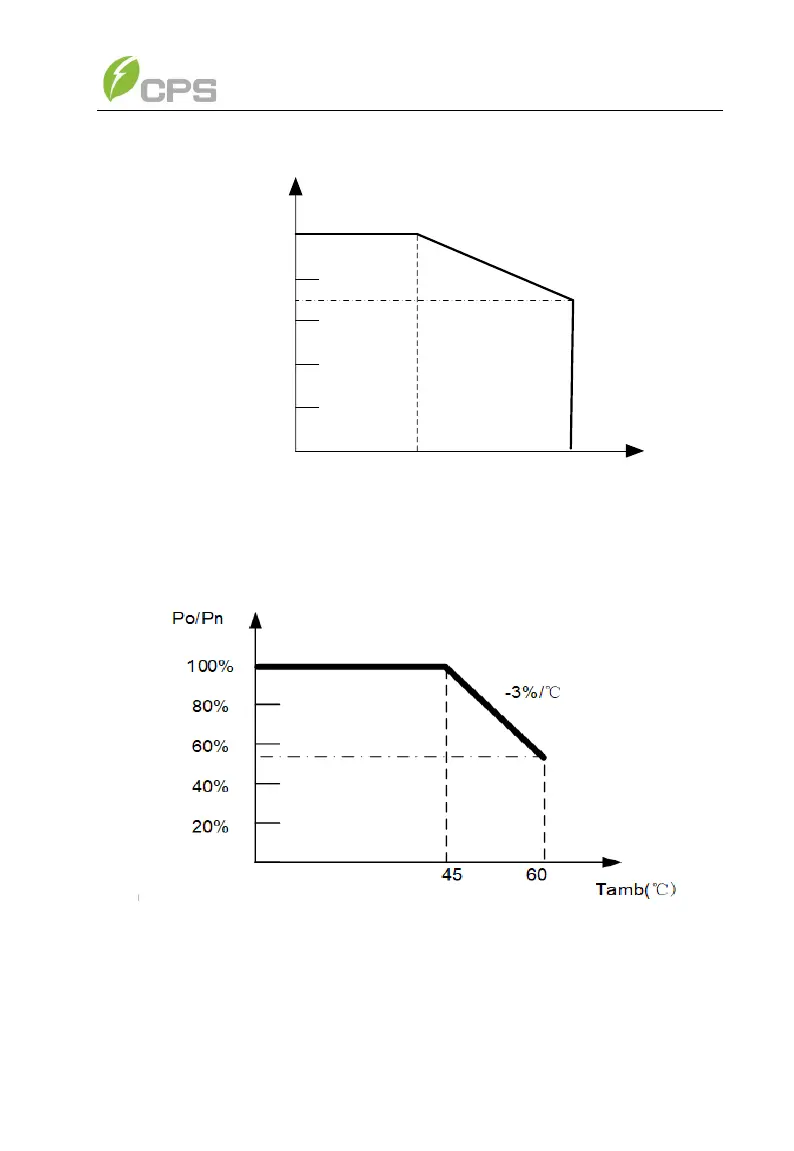

Figure 8-3 CPS SCH100/125KTL-US-600 Derating Curve with High
Temperature
Figure 8-3 CPS SCH100KTL-US-480 Derating Curve with High
Temperature
When the ambient temperature is higher than 113℉/ 45℃, the inverter output
power will begin to derate, as shown in Figures 8-2 and 8-3.
