CPS SCH100KTL-DO-600 - Page 21

17
(D) 18" MIN
10" WIRE WAY
(WITH OR WITHOUT)
(G1) 22" MIN (with)
(G2) 18" MIN (without)
OPTIONAL
BACK ROW
10"
WIRING
TROUGH
10"
WIRING
TROUGH
(B)
6"MIN
(B)
6"MIN
(A)
12"MIN
OPTIONAL
BACK ROW
(F1)
(D) 18" MIN
(C) 6' - 7"MAX
(H)
OVERHEAD STRUCTURE NOT REQUIRED
(F2) 6" or 12"
MINIMUM
NOT REQUIRED
10" WIRE WAY
BAFFLE
BAFFLE
(E) 12"
MIN
OPTIONAL
BACK ROW
10"
WIRING
TROUGH
10"
WIRING
TROUGH
(B)
6"MIN
(B)
6"MIN
(A)
12"Min.
(C) 6' - 7"MAX
OPTIONAL
BACK ROW
(E) 12"
MIN
(G1) 22" MIN
(with)
(F1)
(F2) 6" or 12"
MINIMUM
BAFFLE
OVERHEAD STRUCTURE NOT REQUIRED NOT REQUIRED
(G2) 18"
MIN
(A)
12"Min.
BAFFLE #2
BAFFLE #2
OPTIONAL
BACK ROW
OPTIONAL
BACK ROW
(E) 12"
MIN
(E) 12"
MIN
(C) 6' - 7"MAX
(F1)
(F2) 6" or 12"
MINIMUM
BAFFLE
OVERHEAD STRUCTURE NOT REQUIRED NOT REQUIRED

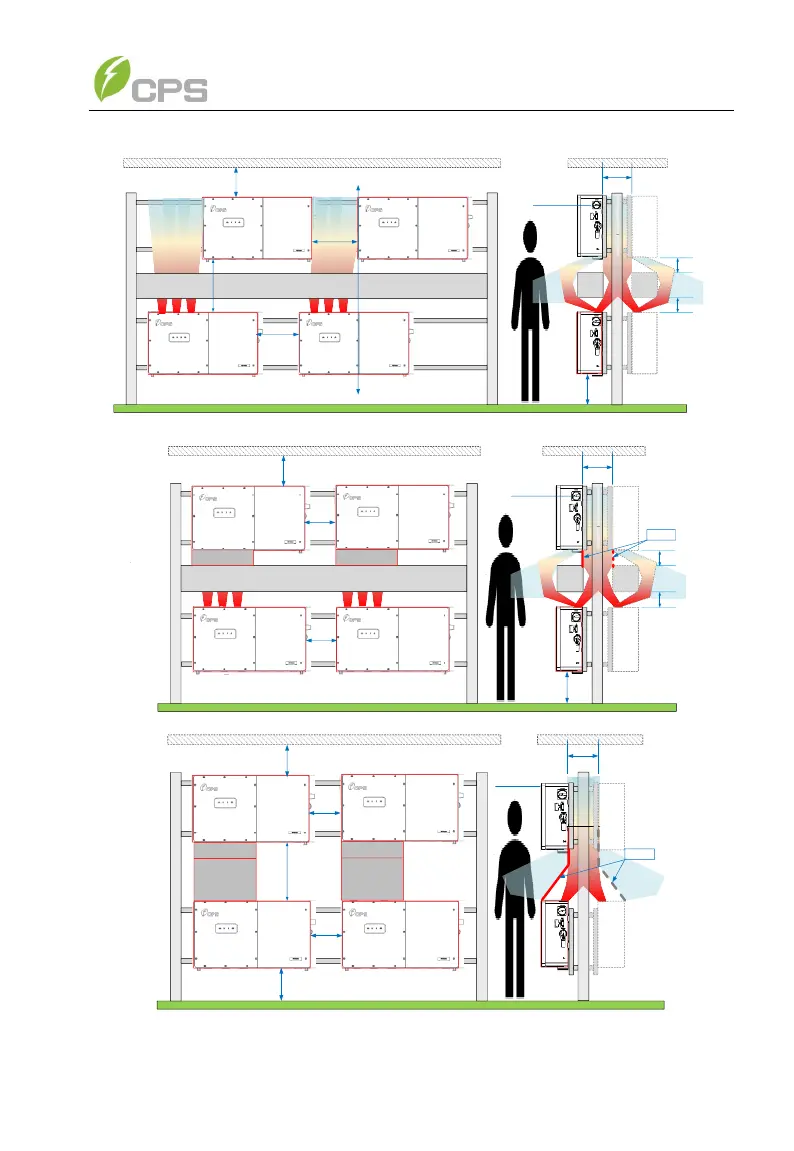

Figure 3-4a, b, c
Inverter Rack/Frame Mounting Dimensions
