30
3.3.2 Wire-box Details
(1) Exterior Wire-box Details

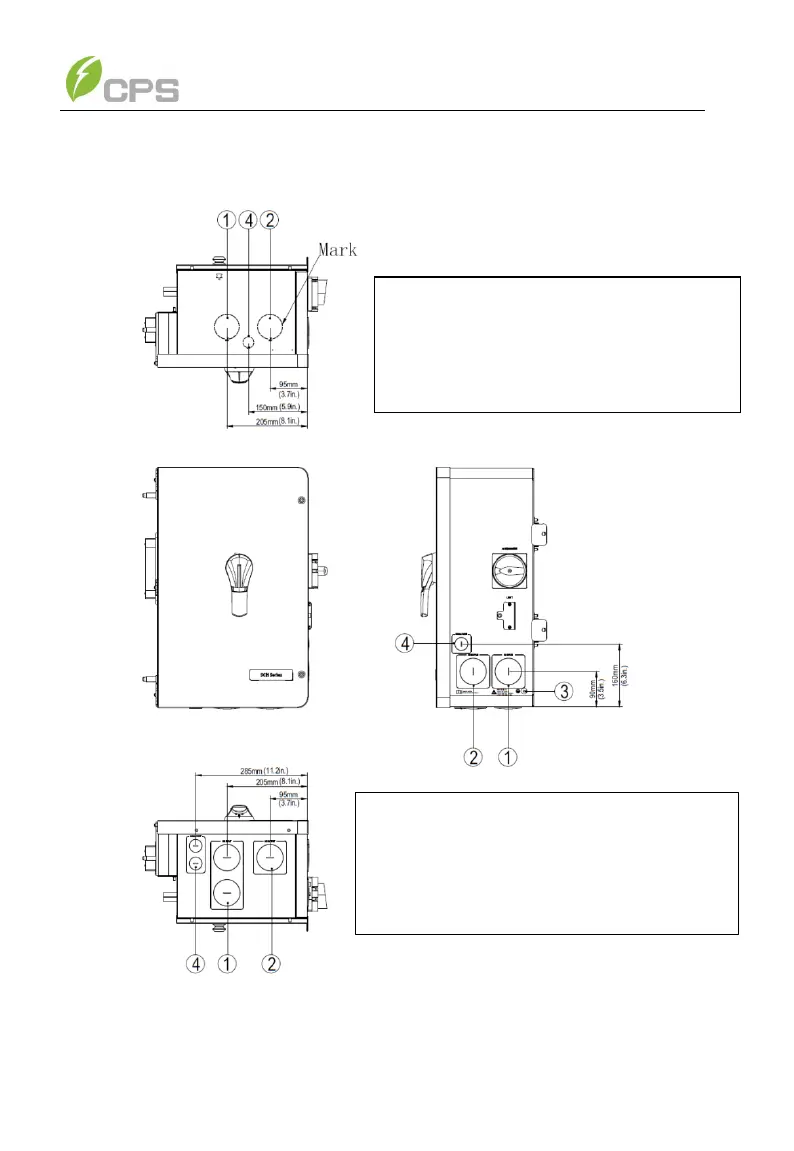

Figure 3-21A Conduit Knock-out Locations (Centralized Wire-box)
Top
Front
Bottom
Side
① Knock-outs for DC input (2” Conduit)
② Knock-out for AC output (2” Conduit)
③ External bonding connection point
④ Knock-out for communication output
(3/4” Conduit)
NOTE: 2-inch knockouts can be enlarged if
the hardware from the larger size does not
interfere with the installation of the cover or
other components. Enlarged holes should
be centered in the original hole if possible.
