CPS SCH100KTL-DO-600 - Page 73

69

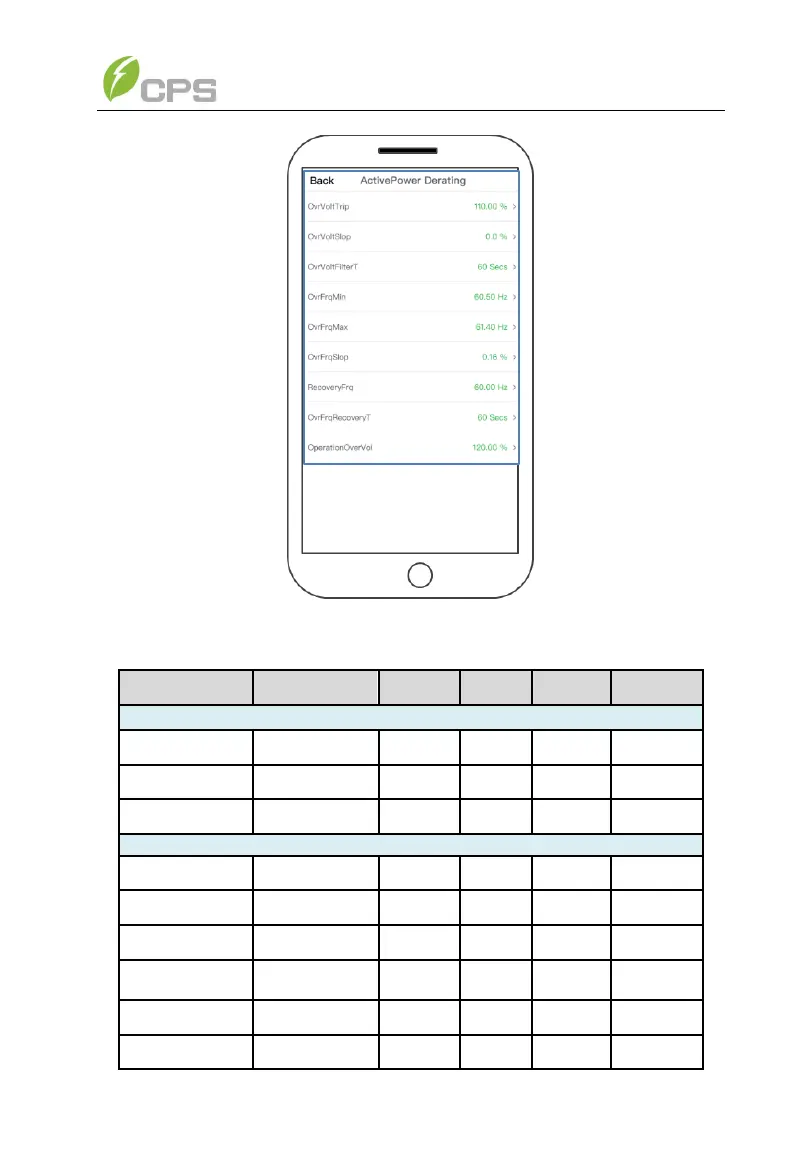

Table 5-2 Active Power Derating Setup
Parameter name
Description
Range
Grid code
IEEE-1547
Grid code
RULE-21
Grid code
ISO-NE
OVER-VOLTAGE DERATE (Table 5-7 (34) to Enable)
OVDeratStart
The trigger Voltage of
Overvoltage derating
{100%, 135%}
{110%}
{110%}
{110%}
OVDeratRate
Rate of Overvoltage
derate
{0%, 100%}
{0%}
{0%}
{0%}
OvrVoltFilterT(s)
The filtering time of Over
Voltage derating
{1 ,90}
{60}
{60}
{60}
OVER-FREQUENCY DERATE (Table 5-7 (29) to Enable)
OFDeratStart(Hz)
The trigger frequency of
Over Frequency derating
{60, 72}
{60.5}
{60.1}
{60.1}
OFDeratStop(Hz)
The end frequency of
Over frequency derating
{60, 72}
{61.4}
{62}
{62}
OFDeratRate(P%/Hz)
The rate of Over
frequency derating
{0.01, 100}
{0.16}
{30}
{30}
OFDeratRcovFre(Hz)
The recovery frequency
of Over Frequency
derating
{58.8, 66}
{60}
{59.90}
{59.90}
OFDeratRcovT(s)
The recovery time of
Over Frequency derating
{0,1200}
{60}
{600}
{600}
OptOverVolPrct
The Value of Operating
overvoltage protect
{100%, 135%}
{120%}
{120%}
{120%}
