Leveling The Router Table
The CXR1000 router table is equipped
with adjustable feet in order to allow
you to level the table. Follow the
following instructions to keep your
table steady during operations.
1. Place the router table on a
clean and level surface.
2. Loosen the (4) ½-12 hex nuts
on the router table feet. (Fig.38)

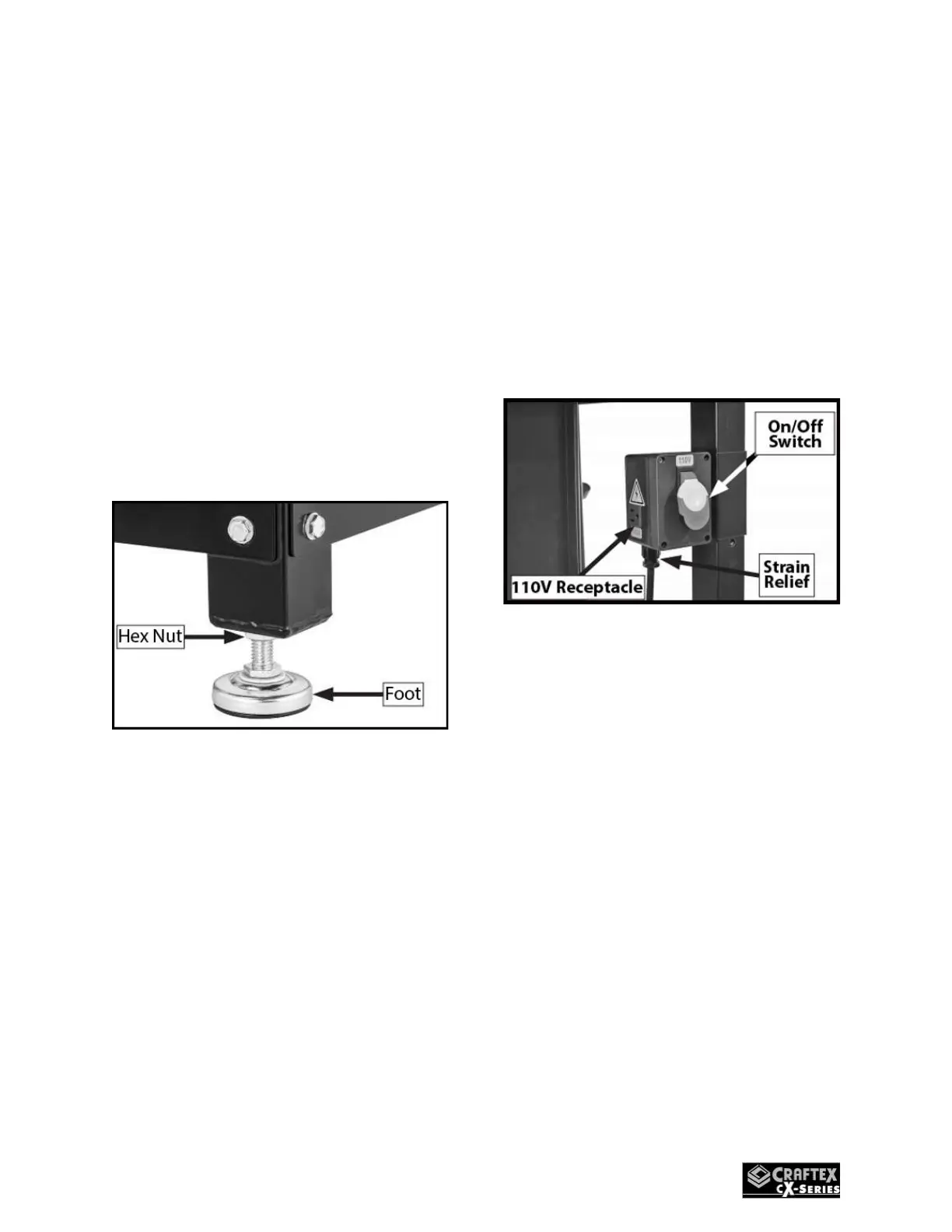

Figure 38
3. Adjust the feet to ensure the
table is stable and will not rock.
4. Tighten the hex nuts to lock the
table feet into place.
Power Cord Connections
For ease of operation the CXR1000
router table electrical box comes
equipped with a 3 prong grounded
receptacle (Fig.39). The power cord
from the router can be plugged
directly into the electrical box
allowing the operator to switch the
power ON of OFF from the front of
the machine rather than at the router
itself. The power cord on the
electrical box can be plugged into a
110V outlet.
Figure 39
1. Set the paddle switch to the
OFF position
2. Loosen the (2) 10-24 x 3/8
Phillips head screws on the side door
of the Dust Box, and feed the router
power cord through the opening.
3. Plug the router power cord into
the 110V receptacle on the table
electrical box.
4. Plug the router table cord
directly into a matching power supply
outlet.
