WARNING!
Read this manual in its entirety
before using the Router table. Wear
eye protection. Always keep the
router bit guard in place and in good
condition. Feed the workpiece
AGAINST the rotation of the router
bit. Keep your fingers away from the
revolving bit. Use fixtures when
necessary. Avoid not use awkward
hand positions.
Controls & Components
To become familiar with the basic
controls and components of this
machine, refer to the following
figures and descriptions.
Understanding these items and how
they work will help you to understand
the rest of the manual and minimize
your risk of injury when performing
operations on the router table.

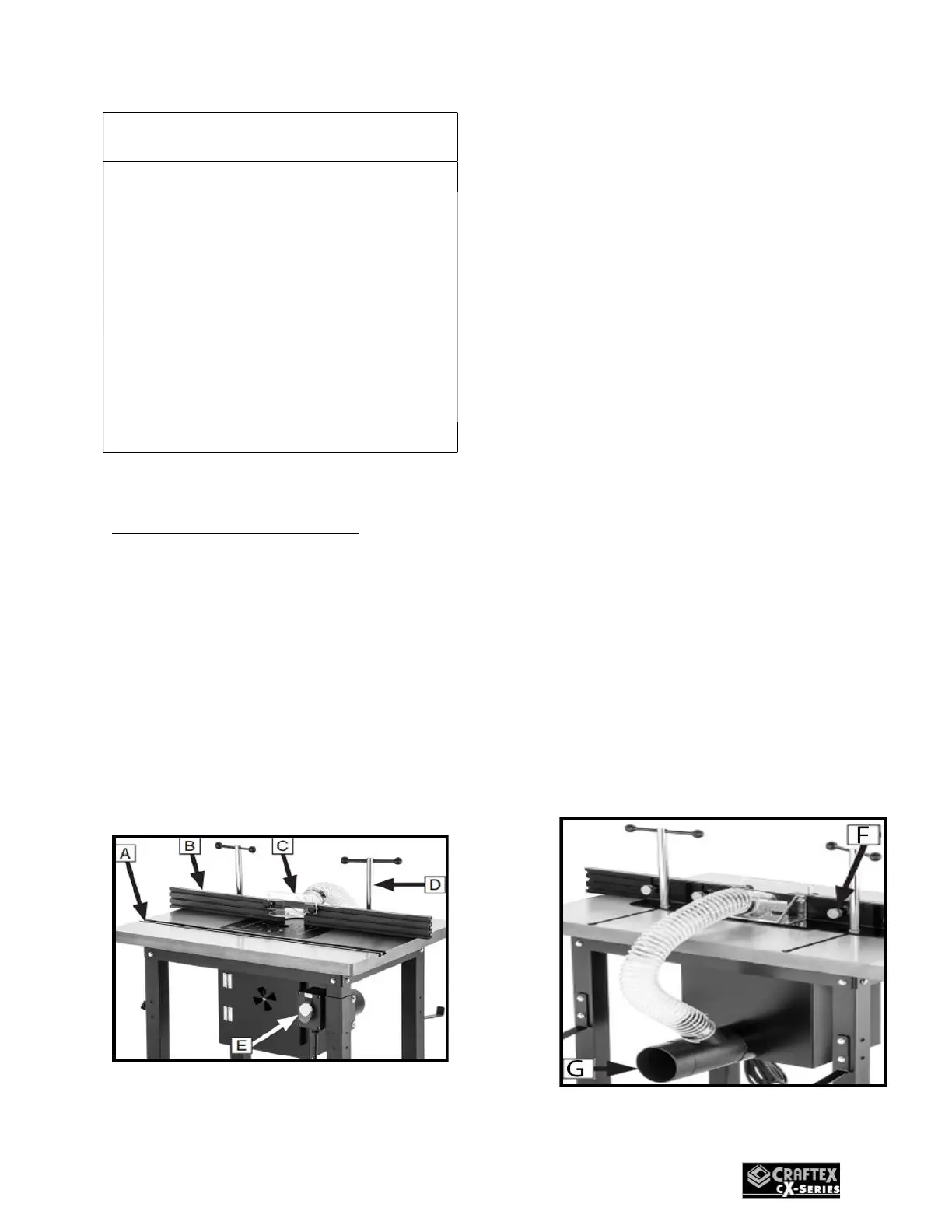

Figure 1
A. 3/8” T-Slot. Used for attaching
router table accessories, such
as miter gauges, jigs and
feather boards, etc.
B. The fence on the router table
provides support for the
workpiece when performing
routing operations. The ¼” T-
Slots allow the attachment of
hold-downs, feather boards.
Etc.
C. Router Bit Guard. Enables
visibility of the router bit and
workpiece while protecting the
user during operations.
D. Fence Locks. For securing the
fence assembly to the table.
E. ON/OFF Switch. Turn the
power on or off. Remove key to
disable the switch.
Figure 2
