Router Height Adjustment
Beneath the table insert the CRX1000
is equipped with a manually operated
router lift which is operated by a
crank handle inserted into the index
ring on the top of the insert plate.
1. DISCONNECT THE MACHINE
FROM THE POWER SOURCE!
2. Insert the crank handle into the
index ring (Fig.48) on the table insert.

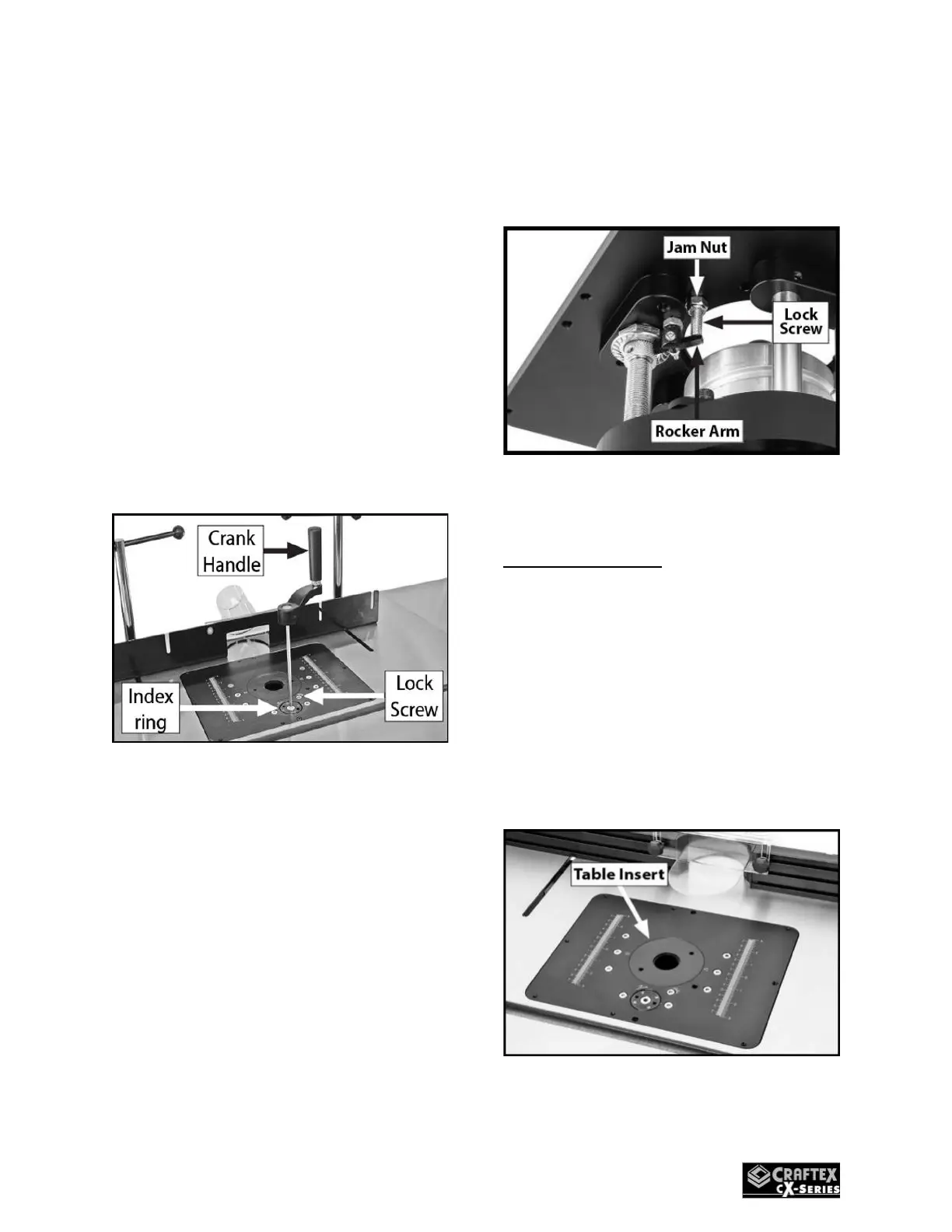

Figure 48
3. To raise the router, turn the
crank handle clockwise and counter
clockwise to lower it. The router will
lift 0.05” on one complete rotation.
4. To secure the height setting,
turn the lock screw clockwise until it
engages the rocker arm beneath the
insert plate (Fig.48). Be sure it is snug
but do not overtighten.
5. Tighten the lock screw jam nut
beneath the insert plate against the
plate to secure its position. (Fig.49)
Figure 49
Table Insert Plate
The CXR1000 table insert plate
(router lift) comes with a 1-1/4”
diameter insert ring which snaps into
the center of the table insert plate,
providing additional safety and
control near the router bit during
operations. (Fig.50)
Figure 50
