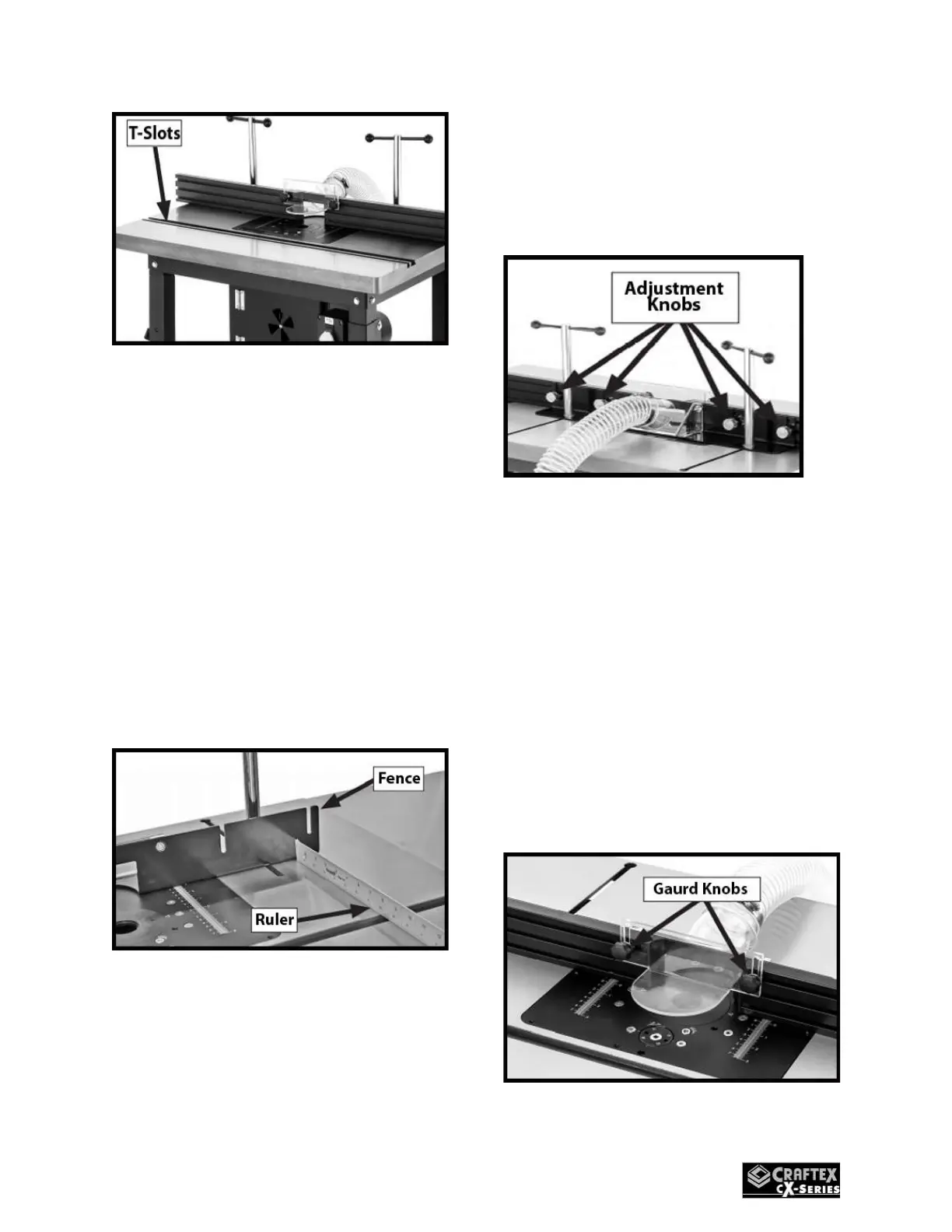

Figure 44
Fence, Miter Gauge & Bit Guard
The fence should always be parallel
with the table slots when using a
miter gauge. This will help to ensure
that kickback does not occur in during
this operation. With an accurate ruler
make sure the fence is at an equal
distance between the fence and the
table slot along the entire length.
(Fig.45)
Figure 45
The fence is comprised of the infeed
fence and the outfeed fence, both of
which can be moved to the side to
increase/decrease the clearance
around the router bit. They are
secured to the fence base with T-
Bolts and knobs (Fig.46).
Figure 46
A clear bit guard is included with the
CXR1000 to provide additional safety
under operations. Secured to the
fence with two knobs and T-bolts and
can adjust up, down or side to side.
The guard should be positioned about
1/8” above the workpiece and
centered horizontally on the gap
between the infeed and outfeed
fences. (Fig.47)
Figure 47
