TILTING THE BELT
SANDING TABLE
The belt sander table can be tilted to front
downward from 0° to 45°.
To tilt the table:
1. Turn off the sander and disconnect the
cord from the power source.
2. Loosen the two table fix lever s located
under the right and left sides of the
table.
3. Tilt the table to t he desired angle. Look
at the graduated scale attached,
indicating the tilting degree of the table.
4. Re-tighten both fix levers.

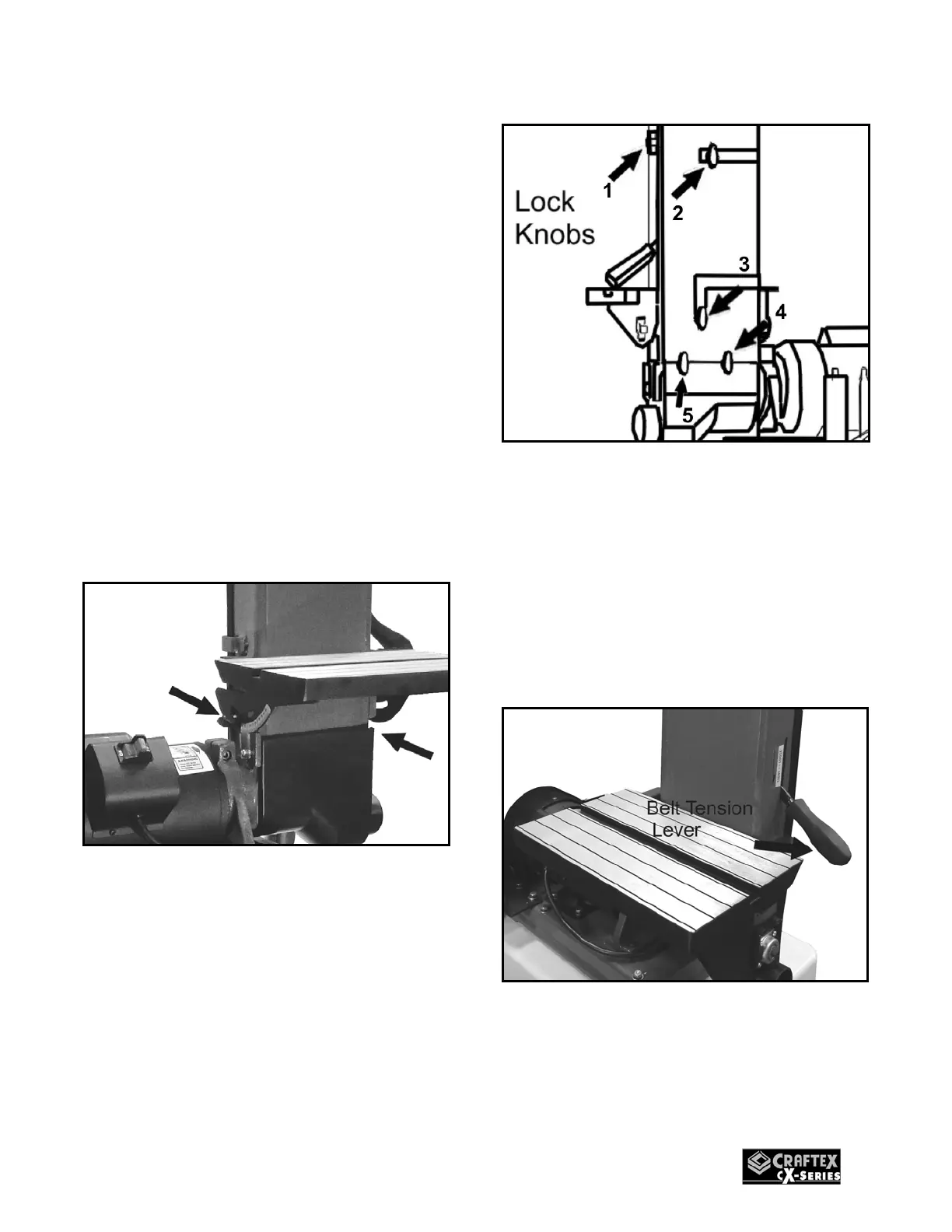

Figure-6 Belt sander tilting scale locks
REMOVING THE SANDING
BELT
1. Turn off the sander and disconnect the
cord from the power source.
2. Loosen the 5 lock k nobs securing the
belt guard and remove it. See figure-7
Figure-7 Lock knobs to be loosened
3. Loosen the two loc k screws located
under the table and remove the belt
sander table. See figure-6
4. Remove the table-tilt graduated scale.
5. Loosen the belt tens ion by shifting the
belt tension control lever upward.
Figure-8 Releasing the belt tension
6. Remove the sanding belt from the right
side.
