Repair Parts ..................................................
Parts List for Craftsman 10 Inch Table Saw
Model No. 299210

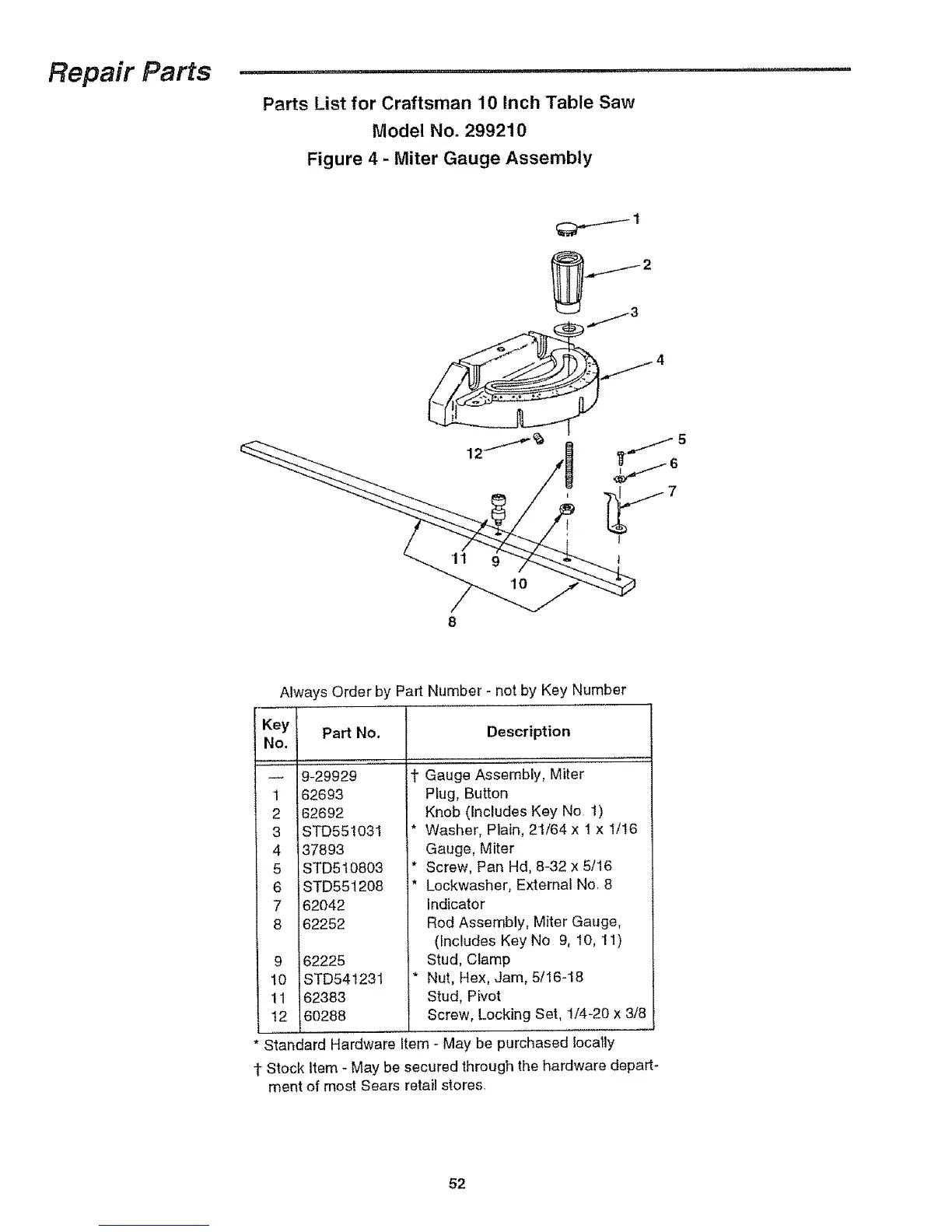

Figure 4 - Miter Gauge Assembly
1t
.j2
Always Order by Part Number - not by Key Number
Key ! Part No.
No. I
,9_29929
1 t 62693
2 t62692
3 ISTD551031
4 I37893
5 lSTD510803
6 ISTD551208
7 162042
8 162252
9 162225
10 ISTD541231
11 162383
12 16O288
i
Description
t Gauge Assembly, Miter
Ptug, Button
Knob (Includes Key No, 1)
* Washer, Plain, 21/64 x 1 x 1/16
Gauge, Miter
* Screw, Pan Hd, 8-32 x 5/16
* Lockwasher, External Nor 8
Indicator
Rod Assembly, Miter Gauge,
(hcludes Key No 9, 10, 11)
Stud, Clamp
* Nut, Hex, Jam, 5/16-18
Stud, Pivot
Screw, Locking Set, 1/4-20 x 3/8
* Standard Hardware Item - May be purchased Iocatly
t Stock item - May be secured through the hardware depart-
ment of most Sears retail stores,
62
