Repair Parts ...........................

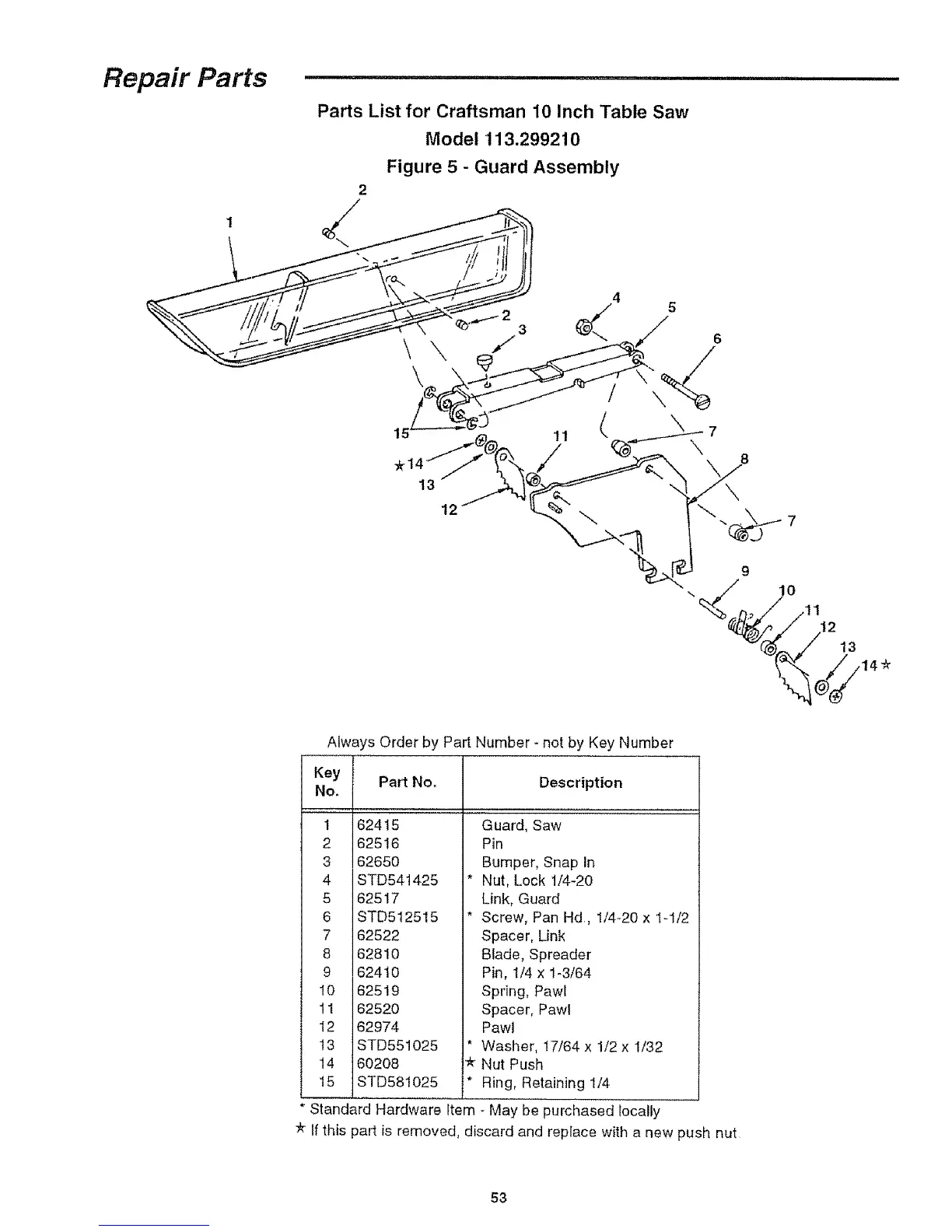

Parts List for Craftsman 10 Inch Table Saw
Model 113.299210
Figure 5 - Guard Assembly
2
13
12
\
Always Order by Part Number - not by Key Number
Part No. Description
624-_-- Guard, Saw
62516 Pin
62650 Bumper, Snap In
STD541425 Nut, Lock !/'4-20
62517 Link, Guard
STD512515 Screw, Pan Hd, 1/4-20 x l-1/2
62522 Spacer, Link
62810 Blade, Spreader
62410 Pin, 1/4 x I-3/64
62519 Spring, Pawl
62520 Spacer, Pawl
62974 Pawl
STD551025 Washer, 17/64 x 1/2 x 1/32
60208 Nut Push
STD581025 * Ring, Retaining 1/4
Standard Hardware Item - May be purchased Iocatly
If this part is removed, discard and replace with a new push nut
53
