Repair Parts
Parts List for Craftsman 10 Inch Table Saw
Model No. 113.299210

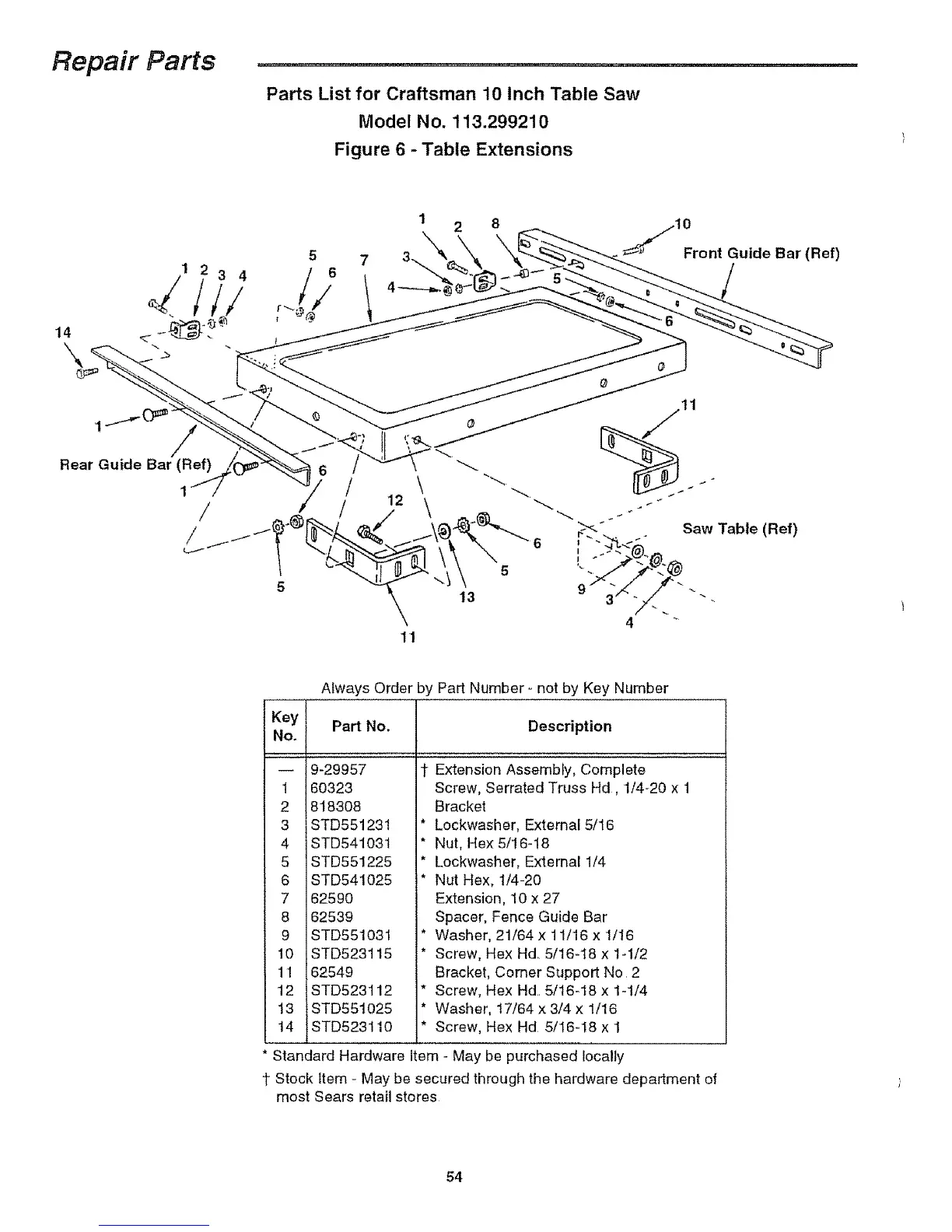

Figure 6 - Table Extensions
' /
Rear Guide Bar (Ref)
1
/
/
11
5
13
Front Guide Bar (Ref)
Always Order by Part Number _not by Key Number
Key Part No.
No.
I
-- 9-29957
1 60323
2 818308
3 STD551231
4 STD541031
5 STD55!225
6 STD541025
7 6259O
8 62539
9 STD551031
10 STD523115
11 62549
12 STD523112
13 STD551025
14 STD523110
Description
1 Extension Assembly, Complete
Screw, Serrated Truss Hd, 1/4-20 x 1
Bracket
* Lockwasher, External 5/16
* Nut, Hex 5/16-18
* Lockwasher, External 1/4
* Nut Hex, 1/4-20
Extension, 10 x 27
Spacer, Fence Guide Bar
* Washer, 21/64 x 11/16 x 1/16
* Screw, Hex Hd. 5/16-18 x 1-1/2
Bracket, Comer Support No 2
* Screw, Hex Hd 5/16_18 x 1-1/4
* Washer, 17/64 x 3/4 x 1/16
* Screw, Hex Hd 5/16-18 x 1
* Standard Hardware Item - May be purchased locally
t Stock Item - May be secured through the hardware department of
most Sears retail stores
