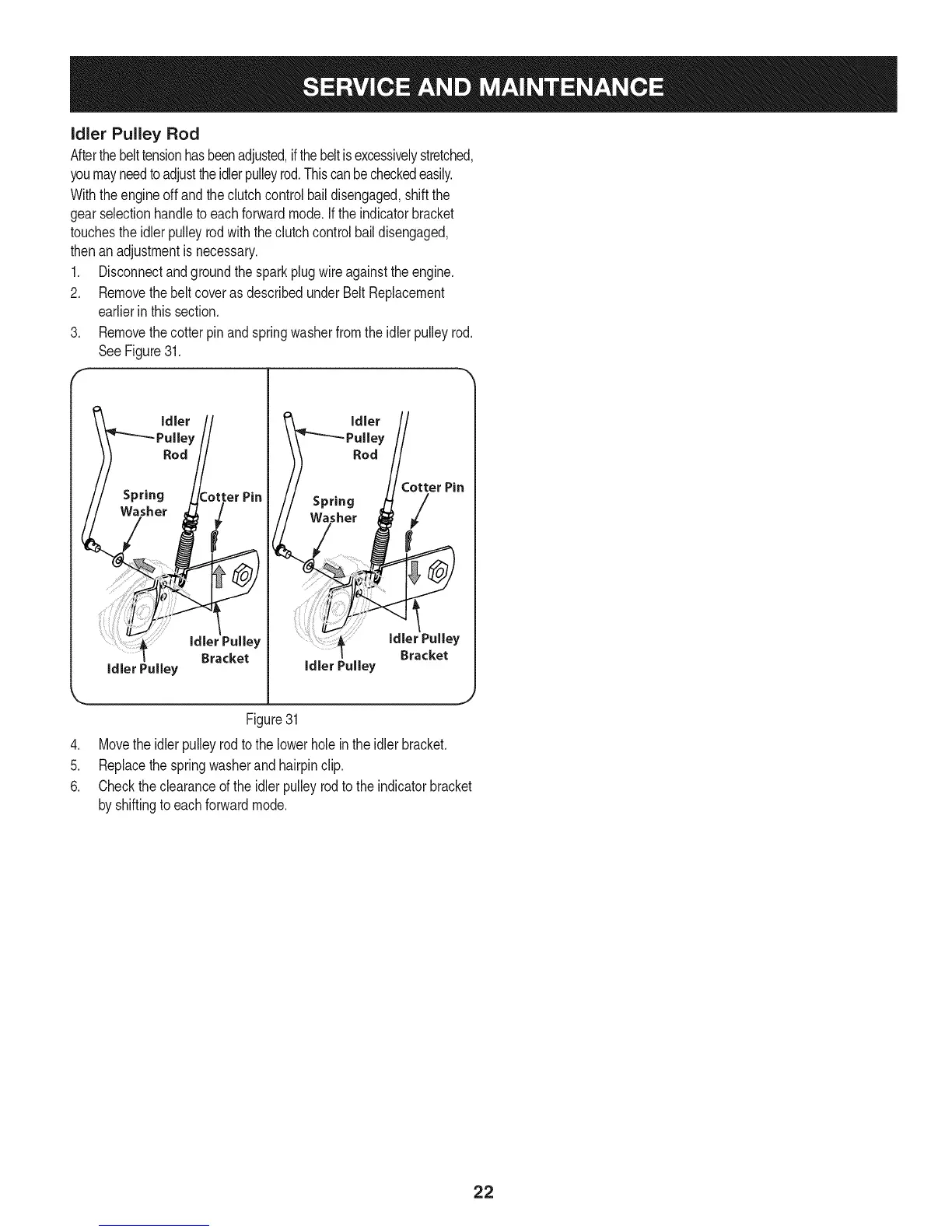

Craftsman 247.299321 - SERVICE AND MAINTENANCE; IDLER PULLEY ROD ADJUSTMENT

idler Pulley Rod
Afterthebelttensionhasbeenadjusted,ifthebeltis excessivelystretched,
youmayneedtoadjusttheidlerpulleyrod.Thiscanbecheckedeasily.
Withtheengineoff andthe clutchcontrolbaildisengaged,shiftthe
gearselectionhandletoeachforwardmode.Iftheindicatorbracket
touchestheidlerpulleyrodwiththeclutchcontrolbaildisengaged,
thenan adjustmentisnecessary.
1. Disconnectandgroundthe sparkplugwireagainsttheengine.
2. Removethebeltcoveras describedunderBeltReplacement
earlierinthissection.
3. Removethecotterpin andspringwasherfromthe idlerpulleyrod.
SeeFigure31.
F
idler Pulley
Pin
idler Pulley
Figure31
4. Movethe idlerpulleyrodtothe lowerholeinthe idlerbracket.
5. Replacethespringwasherandhairpinclip.
6. Checktheclearanceof theidlerpulleyrodto theindicatorbracket
byshiftingto eachforwardmode.
22
