Crane BevMAX Refresh 4 5800-4 - VMC Connections Overview

Page 34 of 62
2020 New Electronics Platform VMC
BevMax 4 Classic 5800-4/3800-4
BevMax 4 Classic 5800-E4/3800-E4
Part # 400069

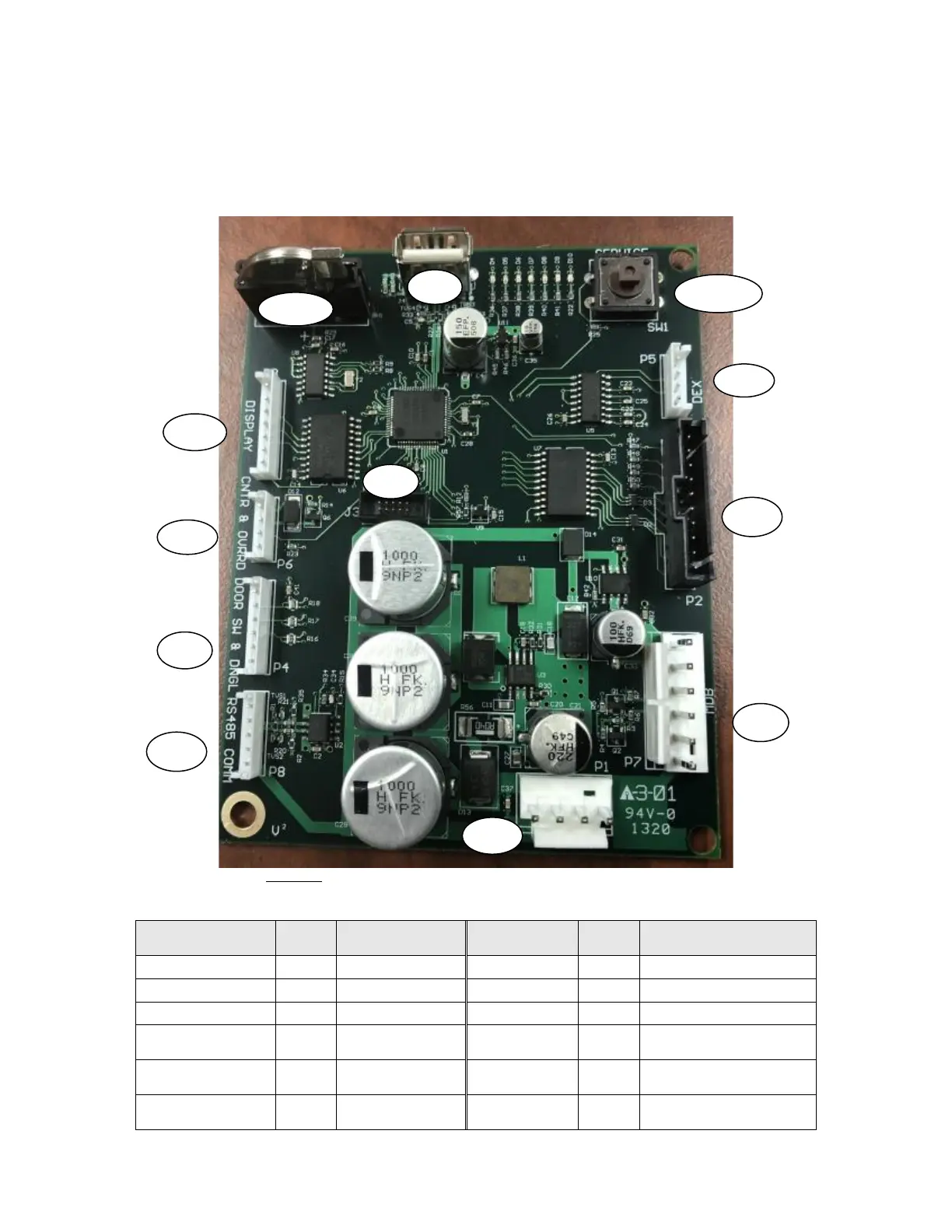

2020 New Electronics Platform BevMax 4 Classic VMC (400069) Connections
CONNECTION
BevMax 4
# of
Pins
DESCRIPTION
CONNECTION
BevMax 4
# of
Pins
DESCRIPTION
J4
-
USB Port
SW1
-
Service Switch
BH1
-
Battery
P5
4
DEX
P3
7
Display
P2
10
Keypad
P6
4
Electronic Counter
& Override Switch
P7
6
MDB
P4
6
Door Switch &
Dongle Harness
P1
4
Power from AC Distribution
Box
P8
5
RS 485 Comm
J3
10
Supplier Programming
Connector
P1
J3
P4
J4
BH1
P3
P8
P2
P5
P6
P7
SW1
