Crane BevMAX Refresh 4 5800-4 - Troubleshooting Tables; Coin Acceptance Issues; Bill Acceptance Issues

Page 47 of 62
TROUBLESHOOTING TABLES
COIN ACCEPTANCE ISSUES
PROBLEM
CAUSE
FIX
Coins Returned to
Customer With No
Credit Issued
 Coin Jam in Mech.
 Flight Deck dirty.
 No Power to Mech.
 Coin Return Lever activated.
 Vender in Service Mode.
 Select Block Enabled
 No Vend# Enabled
 Defective Coin Mech
 Clear Jam and Test.
 Clean Flight Deck.
 Check VMC D6 Yellow Diagnostic Light is On
when Service Door is opened.
Check Harness from Mech to VMC.
 Adjust Coin Return Lever.
 Close Service Door.
 Disable Select Block.
 Disable No Vend#
 Replace Mech.
Will Not Payback
Coins
 No Power to Mech.
 No Coins in Tubes.
 Tubes Programmed
incorrectly.
 Defective Coin Mech.
 Check VMC D6 Yellow Diagnostic Light is On
when Service Door is opened.
Check Harness from Mech to VMC.
 Fill Coin Tubes with Coins.
 Reprogram per Manufacturer
recommendation.
 Replace Coin Mech.
BILL ACCEPTANCE ISSUES
PROBLEM
CAUSE
FIX
Bill Acceptor will not
run.
 Prices / tube cash conditions.
 No Power to Bill Acceptor.
 Vender in Service Mode.
 Select Block Enabled
 No Vend# Enabled
 Defective Bill Acceptor.
 Check Mech Tubes.
 Check VMC D6 Yellow Diagnostic Light is On
when Service Door is opened.
Check Harness from Acceptor to MDB Harness
to VMC.
 Close Service Door and test bill acceptance.
 Disable Select Block.
 Disable No Vend#
 Replace Bill Acceptor.



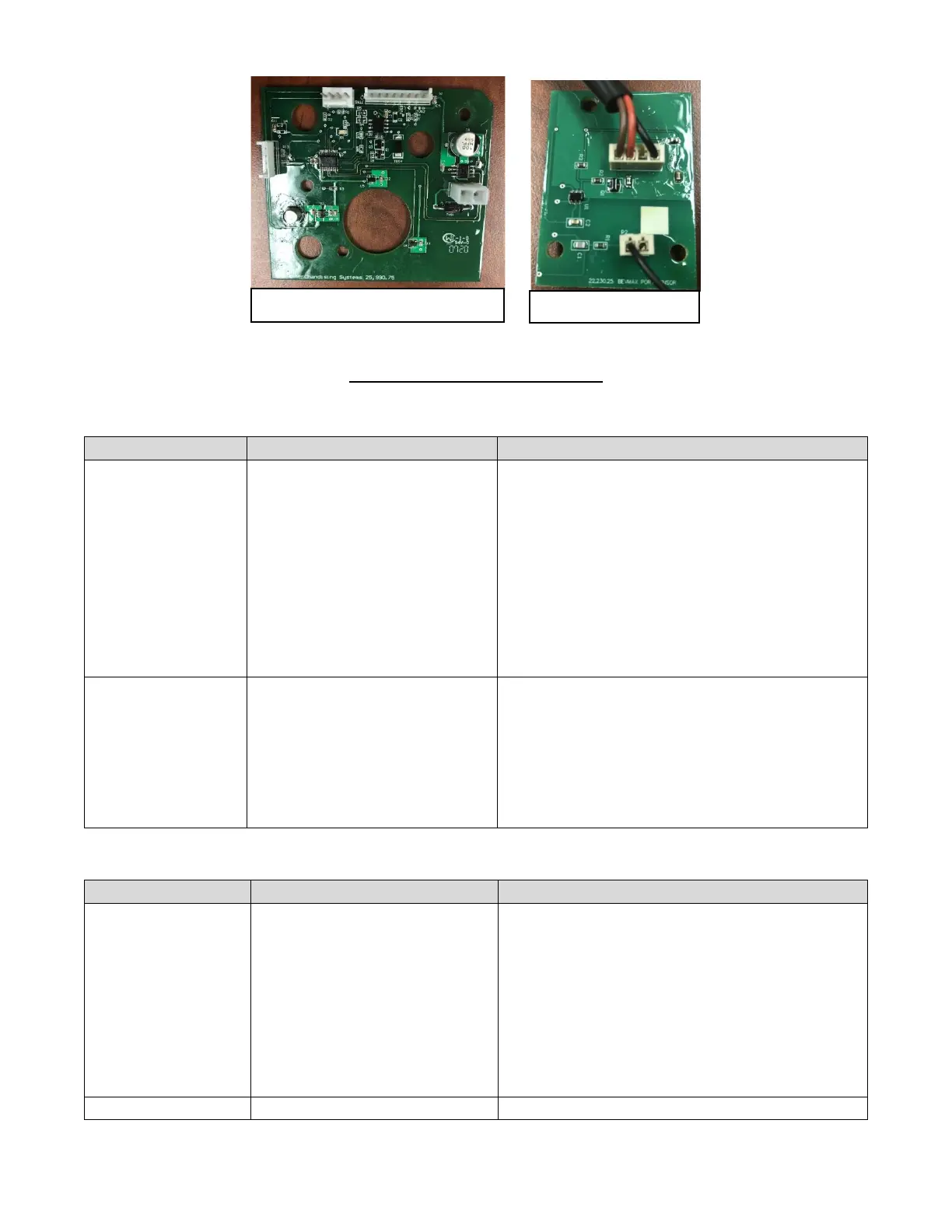

FR4 Port Sensor.
Cabinet Control Port Board.
