Creality CR-10 Smart Pro User Manual

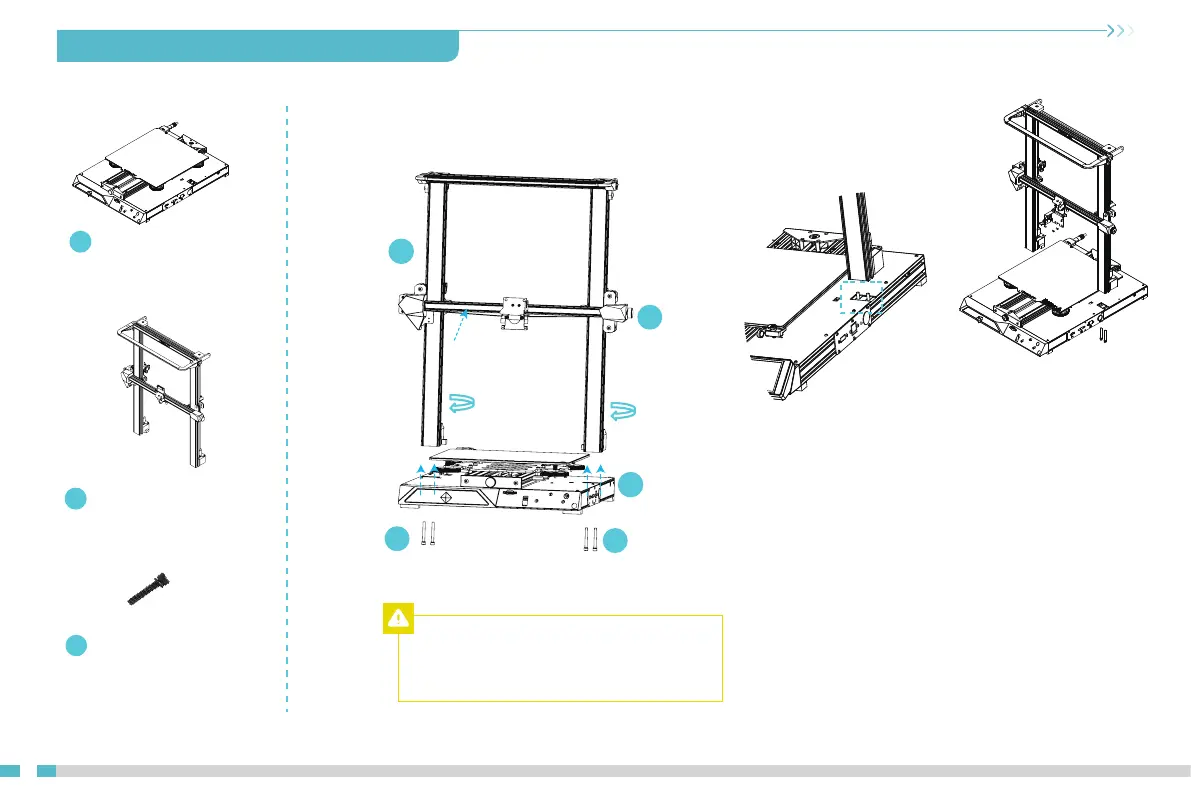

4. Install the Gantry Frame 安装龙门架
Twist the coupling to raise the X axis
to the position shown in Figure 16.
拧动联轴器使X轴上升到如图16所示位置。
Two Z-axis profiles, installed on the
inner step of the Y-axis bottom profile.
两根Z轴型材，靠Y轴底部型材内侧台阶安装。
9
M5x45 Sems Screw
M5x45组合螺丝
×4
x 1
Gantry Frame｜龙门架
2
x 1
Base Frame｜底座
1
9
9
16
2
1
04
X轴
X axis

Creality CR-10 Smart Pro Specifications

General

Build Volume	300 x 300 x 400 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Print Speed	up to 180 mm/s
Touch Screen	4.3-inch color touch screen
Bed Temperature	up to 100°C
Nozzle Temperature	up to 260°C
Printing Technology	FDM (Fused Deposition Modeling)
Machine Dimensions	578 x 522 x 648 mm
Resume Printing Function	Yes
Filament Runout Sensor	Yes
Nozzle Diameter	0.4 mm
Connectivity	Wi-Fi, USB
Supported Materials	PLA, ABS, PETG, TPU
Bed Leveling	Automatic Leveling
