EnderExtender.com Ender Extender™ 5 Installation Guide
Page 18

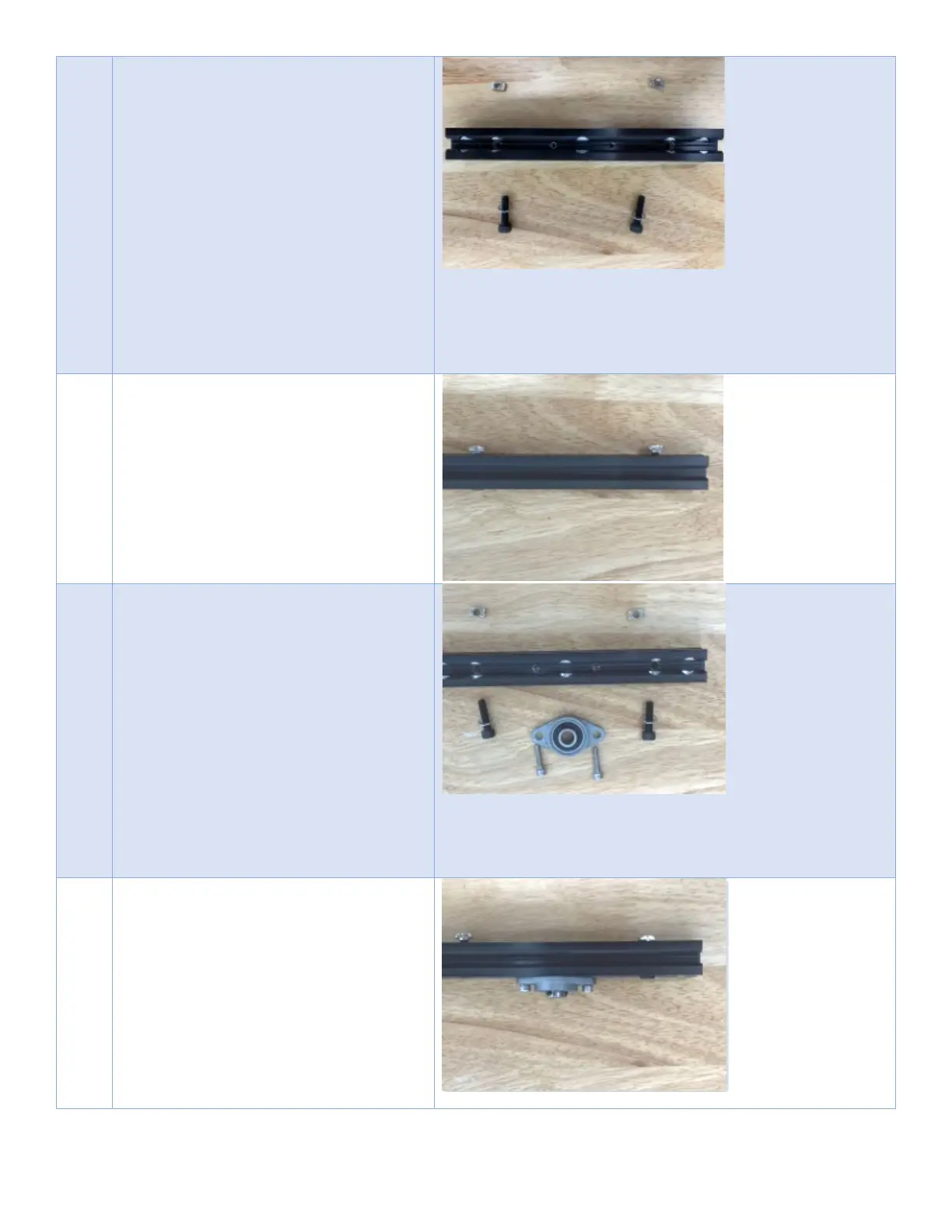

Gather required parts
Kit parts:
(2) M5x20 hex cap screws
(2) M5 lock washers
(2) M5 t-slot nuts
(1) 2020 rod mounting bracket
2
Affix the M5 lock washers to the M5x20
hex cap screws
Insert the M5x20 hex cap screws into the
left and right holes in the rod mounting
bracket
Attach the M5 t-slot nuts, leave enough
room for mounting on the printer frame
extrusion
3
Bottom Rod Mounting Bracket
Gather required parts
Kit parts:
(2) M5x20 hex cap screws
(2) M5 lock washers
(2) M5 t-slot nuts
(2) M4x16 hex cap screws
(1) KFL08 Horizontal Flange Bearing
(1) 2020 rod mounting bracket
4
Affix the M5 lock washers to the M5x20
hex cap screws
Insert the M5x20 hex cap screws into the
left and right holes in the rod mounting
bracket
Attach the M5 t-slot nuts, leave enough
room for mounting on the printer frame
extrusion
