White Rabbit Switch - WRS
2 Overview
2.1 Package
The WRS package is composed of various elements:
• The packaging box
• A power cable according to the country of distribution.
• The 18 SFP ports switch
• SFP LC connectors
– 16x AXGE-3454-0531 (violet)
– 2x AXGE-1254-0531 (blue)
Note: The SFP LC connectors are optional. Consult the SFPs Wiki for more informa-
tion about the compatibility of SFPs and how to use them.
2.2 Front and back panel

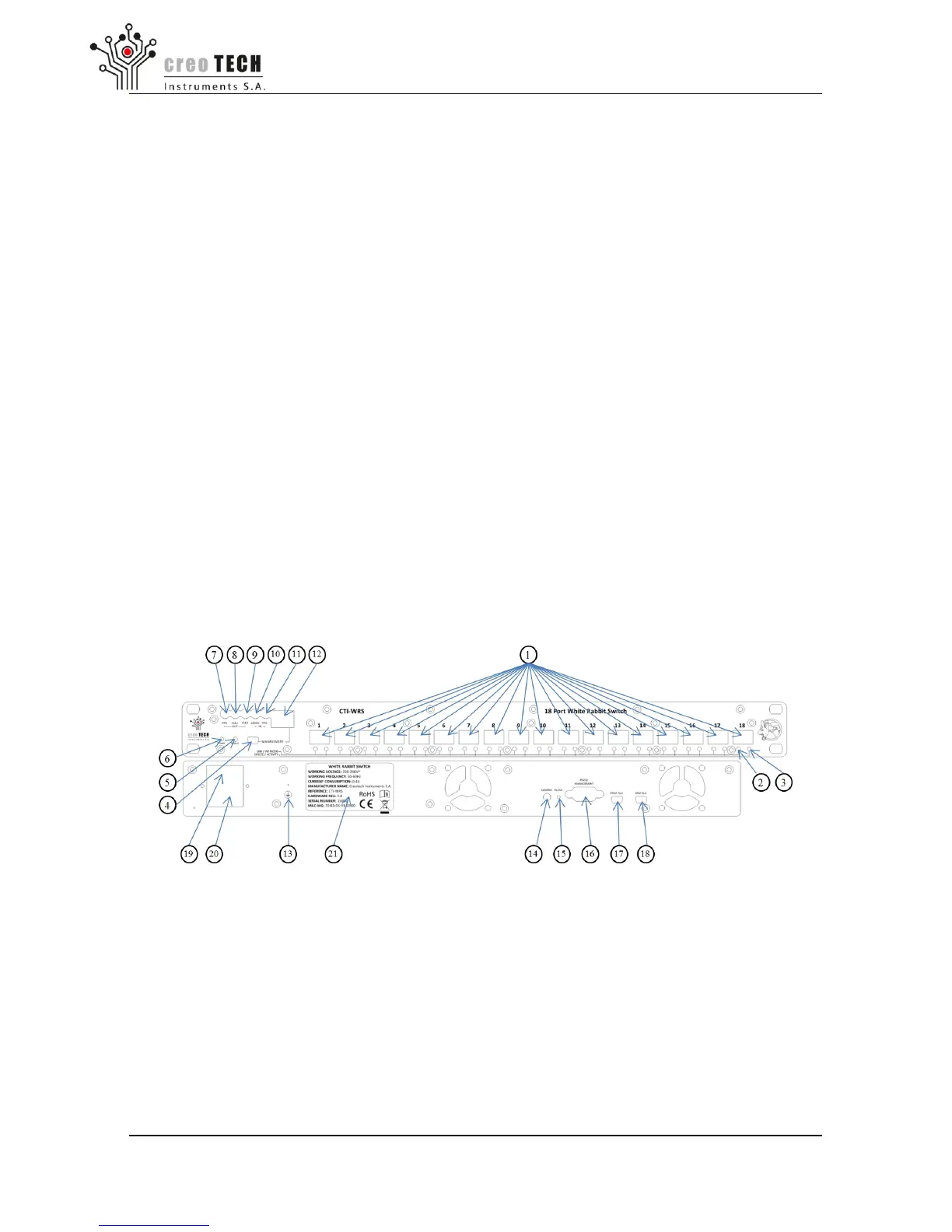

Figure 1: Front and Back Panel of the WRS
1. The 18 SFP ports
2. Synced/Activity LEDs
3. Link/WR Mode LEDs
4. Management Mini-USB (B) port
