White Rabbit Switch - WRS
3 Basics
3.1 Default settings
The device is factory configured with the following default settings:
• IP configuration is DHCP
• MACs are given by the manufacturer; labeled on back panel #21
• WR mode is BoundaryClock (Simple Master)
– The first port (SFPs 1) is configured as WR slave
– The other ports (SFPs [2-18]) are configured as WR master
• SSH user: root
• SSH password: (empty)
• Boot method: Nandflash firmware
• Web Management Interface user: root
• Web Management Interface password: (empty)
Media Access Control Address – MAC address

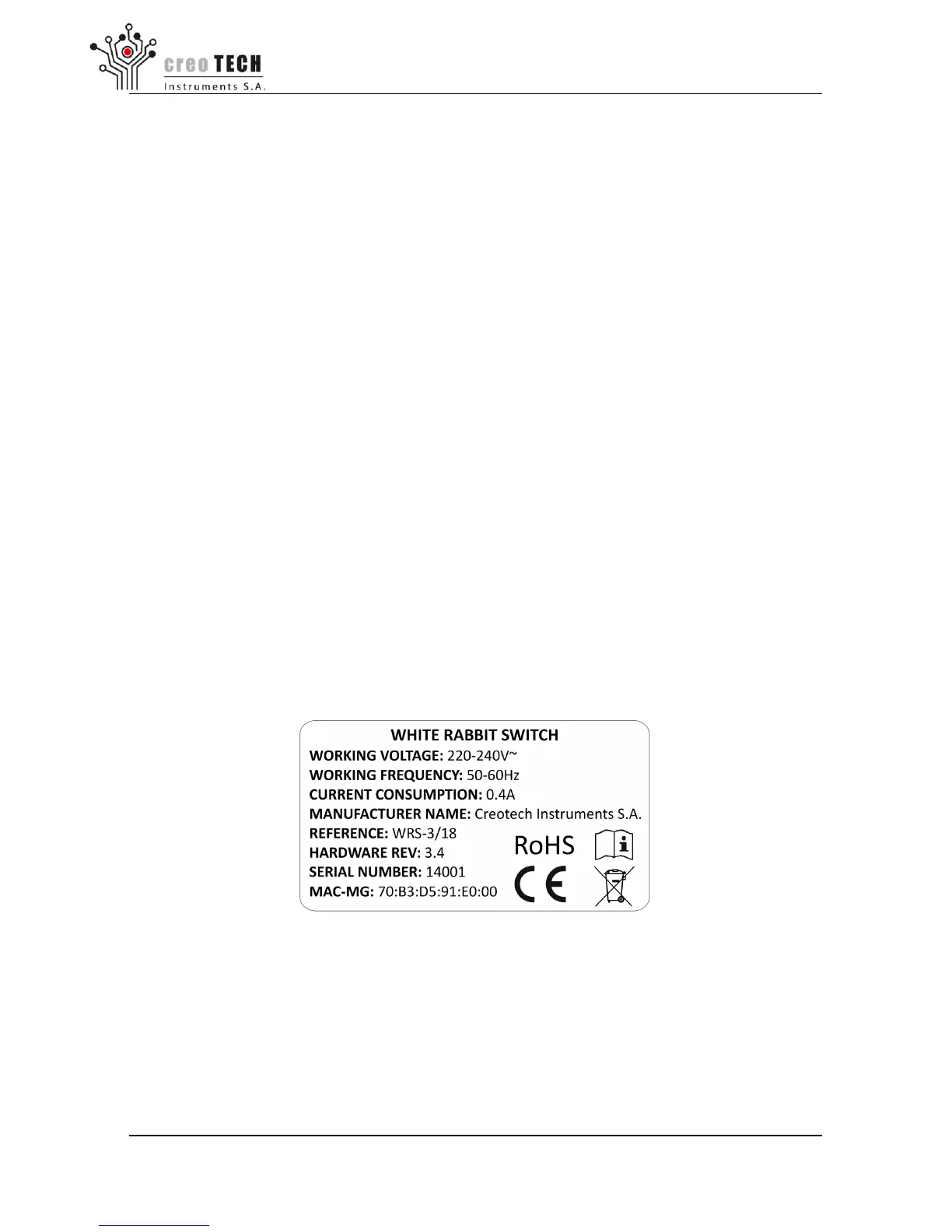

Figure 2: Serial Number Sticker
Main MAC-MG address is listed on a info sticker - Figure XX. Rest of address for 18 ports
are next 18 numbers counted from last three characters MAC-MG. For example MAC-MG
is 70:B3:D5:91:E0:00 so then SFP ports 1 to 18 have addresses from 70:B3:D5:91:E0:01 to
70:B3:D5:91:E0:18.
Creotech Instruments S.A. tel. +48 22 233 10 27
ul. Gen. L. Okulickiego 7/9 e-mail: support@creotech.pl
05-500 Piaseczno, Poland www.creotech.pl
Page 7 of 30
