White Rabbit Switch - WRS
6 Web Management Interface Features:
WMI is a web interface that allows the WRS management from a web browser. It dis-
plays the configuration and status of the main services and programs that are available for
the switch.
It acts as an abstraction layer between the dot-config file and the programs in /wr/bin/
folder, making the WR switch management easier for the user. It also gives the possibility to
restore/backup a specific configuration by saving/loading the dot-config file.

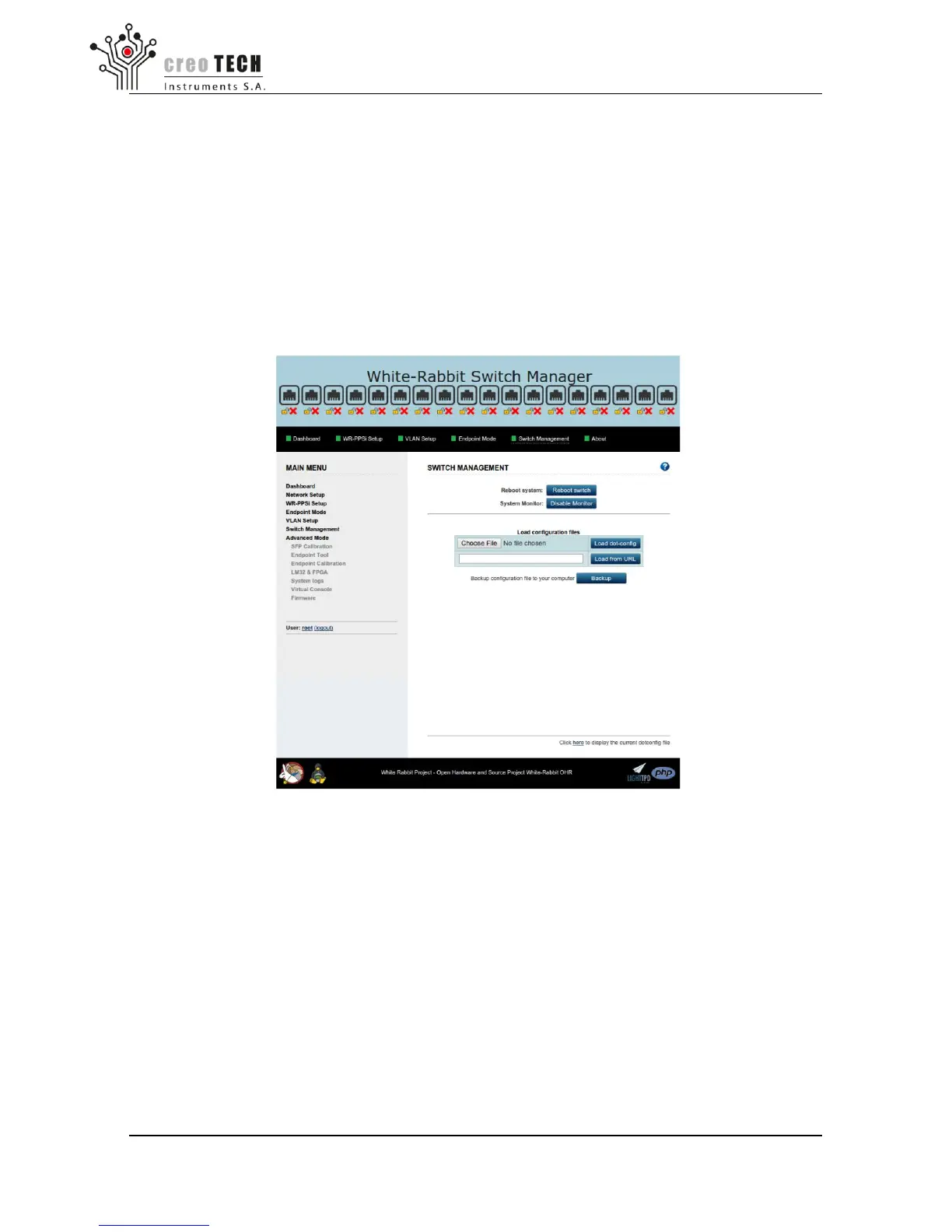

Figure 4: Web Management Interface - Switch Management
When you are logged in, on the left side is MAIN MENU. It displays the main configuration
and status of the main services and programms that are available for the switch, such as
endpoints’ mode and calibration status, SFP calibration, PTP, SNMP, VLANs, etc. It acts
as an abstraction layer between the back-end scritps and programs in /wr/bin/ folder, making
the WR switch management easier for the user.
Creotech Instruments S.A. tel. +48 22 233 10 27
ul. Gen. L. Okulickiego 7/9 e-mail: support@creotech.pl
05-500 Piaseczno, Poland www.creotech.pl
Page 16 of 30
