Wirecast Configuration

The Automate VXsystem uses Wirecast® streaming software to change live shots, layouts, and

output.

During initial setup, changes may need to be made to the Wirecast document to customize the

system, such as setting custom layouts with logos. The Wirecast document is located within

C:\Program Files\1 Beyond\Automate Project.wcst.

NOTE: The Wirecast document uses a specific naming convention for shots that must be

adhered to for the Automate VXsystem to function properly. These naming conventions are

described in the sections that follow.

The project provides basic shots for a layout A, including side-by-side shots, as well as a layout B

with an alternative appearance.

Configure Basic Shots

A basic shot is labeled with the input number and the layout it is associated with (for example,

A_Cam1, A_Cam2, A_Cam3, B_Cam1, B_Cam2, B_Cam3, and so forth).

NOTE:The naming convention above must be used for the Automate VXsystem to function

properly.

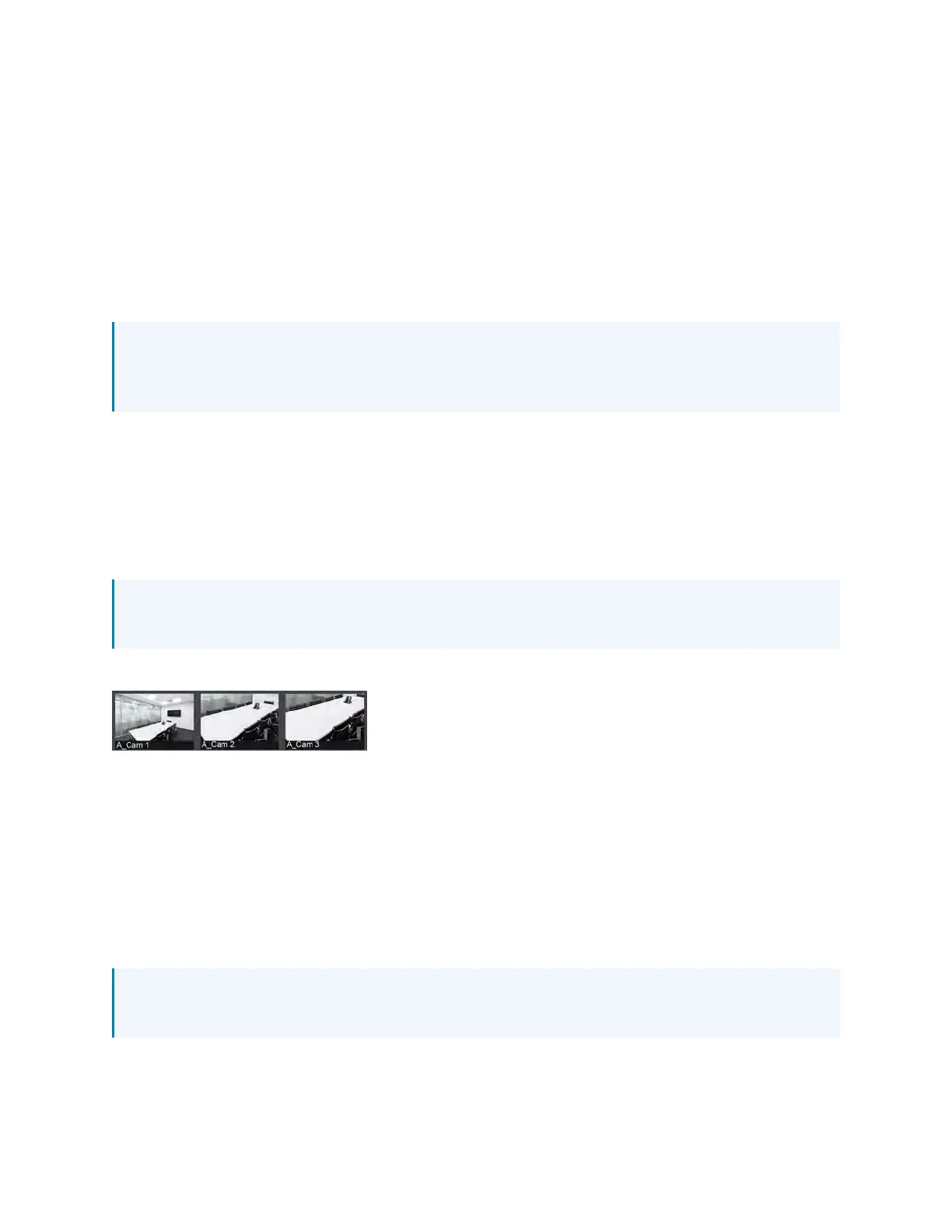

Basic Wirecast Shots

If using less than three inputs on the IV-SAM-VXS-1B or less than seven inputs on the IV-SAM-

VXS-1B, any unused basic shots can be removed by right-clicking the shot and then selecting

Delete Shot.

Create Side-by-Side Shots

When side-by side shots are turned on, two active speaking participants are shown

simultaneously. The labeling convention for side-by-side shots is similar to basic shots with the

second camera added to the end (for example, A_Cam1_2, A_Cam1_3, A_Cam2_3, and so forth).

NOTE:Not every camera permutation is required, and the lower camera number will always

be used first. For example, A_Cam1_2 is used, but A_Cam2_1 is not.
