Physical Description

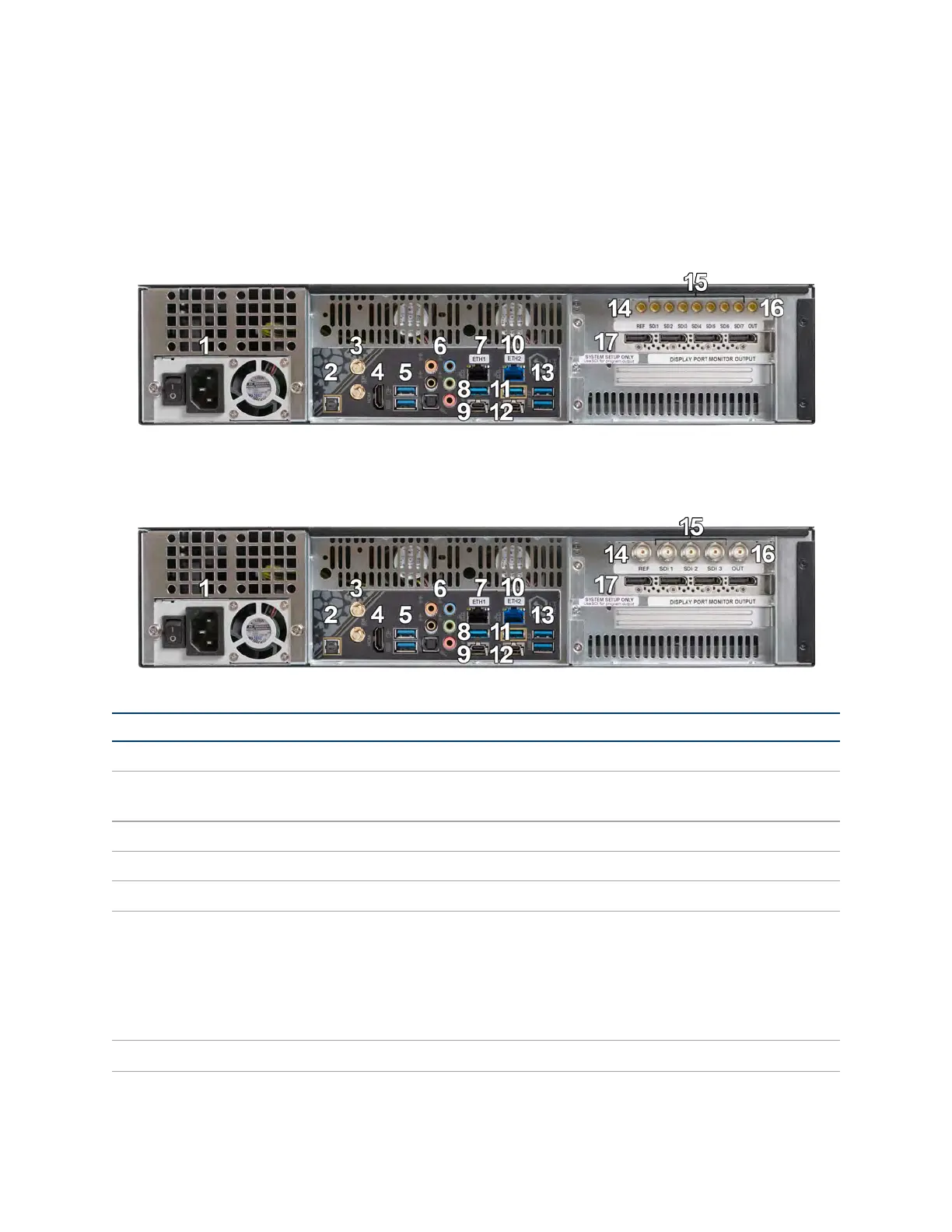

The camera switcher provides the following connectors and indicators.
IV-SAM-VXP-1BConnectors and Indicators
IV-SAM-VXS-1BConnectors and Indicators
No. Name Description
1 Power ACpower
2 BIOSFlashback
Button
Not used
3 Wi-Fi Connects the antenna to the onboard Wi-Fi™ network chip
4 HDMI Not used
5 USB 3.2 Gen 1 2x USBType-A ports for peripheral device connections
6 Audio Connections Orange:Central/bass speaker out
Blue:Line in
Black:Rear speaker out
Green:Headphone/speaker out
Pink:Microphone in
Optical:Optical SPDIFout
7 ETH1 1 Gbps RJ-45 Ethernet port
