2-Series Integrated Dual Bus Control System Crestron AV2 & PRO2
TIME
This menu can only be obtained by entering the correct access code. The default
access code is 1234. Use the Viewport (Functions | Set Front Panel Password
(CNX / 2-Series only)) to assign a unique access code.

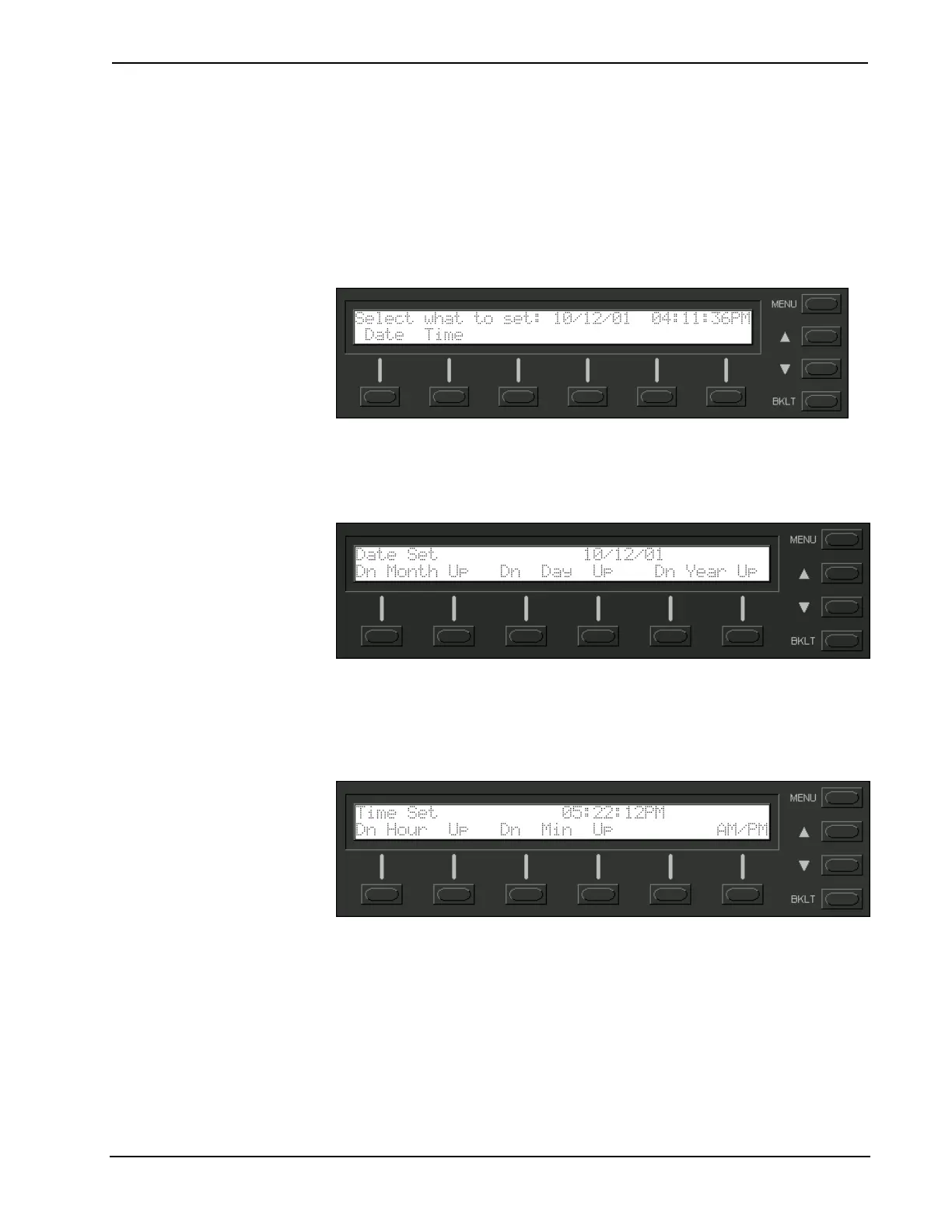

The default Date/Time Menu, shown after this paragraph, permits alterations to the
current system date and time shown on the top line. Select either Date or Time to
open the respective submenu.
Default Date/Time Menu
The Date Set submenu, shown after this paragraph, permits alterations to the current
system date, shown on the top line. Use the Dn (down) and Up selection buttons for
month, day, and year decremental or incremental changes, respectively.
Date Set Submenu
The Time Set submenu, shown after this paragraph, permits alterations to the current
system time, shown on the top line. Use the Dn (down) and Up selection buttons for
hour and minute (Min) decremental or incremental changes, respectively. The
AM/PM selection button toggles between AM and PM.
Time Set Submenu
COM
This button allows the user to monitor the transmission and reception traffic on every
COM-type device and card that is active in the SIMPL Windows program that is
loaded into the 2-Series control system. This includes all devices connected via
Cresnet (e.g. ST-COM) and Ethernet (e.g. CEN-COM) as well as the built-in card
(slot 4) and cards inserted into the expansion slots (e.g. CNXCOM-2 and C2COM-
3). Serial transmission to IR ports can also be monitored. Refer to "COM Analyzer"
on page 41 for details.
12 • Integrated Dual Bus Control System: AV2 & PRO2 Operations Guide - DOC. 5957A

Crestron AV2 Specifications

General

Internal memory	64 GB
Internal memory type	SDRAM
Internal storage capacity	0.004 GB
AC input voltage	100-250 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Housing material	Metal

Weight and Dimensions

Depth	261.9 mm
Width	432.6 mm
Height	90.4 mm
Weight	3220 g
