DigitalMedia Presentation Systems Crestron DMPS-100/200/300-C/300-C-AEC
26 • DigitalMedia Presentation Systems: DMPS-100/200/300-C/300-C-AEC Operations Guide – DOC. 7219D

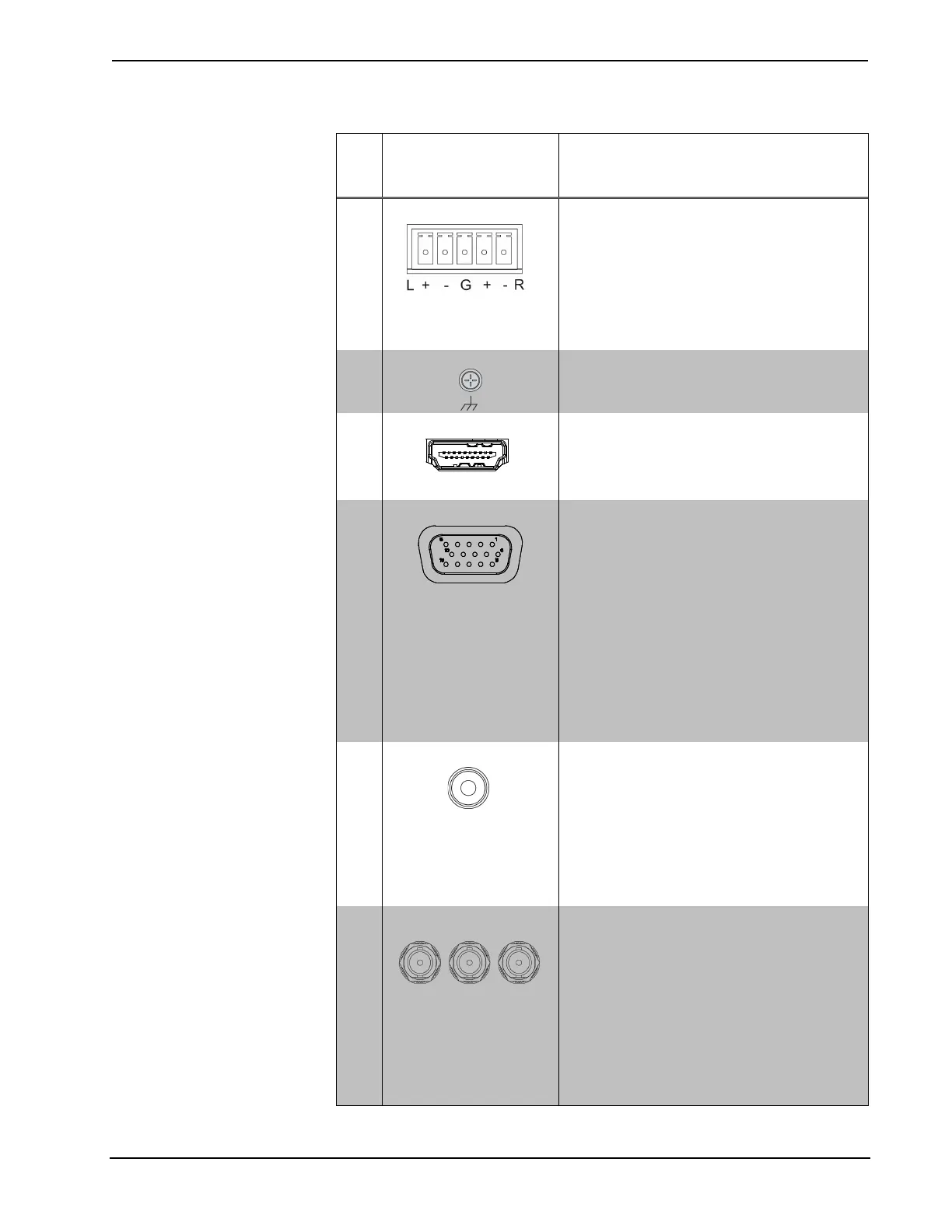

Connectors, Controls & Indicators (Continued)
# CONNECTORS
1
,
CONTROLS &
INDICATORS
DESCRIPTION
34 AUX OUT
(1) for DMPS-100; (2) for DMPS-200 and
DMPS-300: 5-pin 3.5 mm detachable terminal
blocks;
Balanced/unbalanced stereo line-level audio
outputs;
Output impedance: 200 Ω balanced,
100 Ω unbalanced;
Maximum output level: 4 Vrms balanced, 2
Vrms unbalanced
35 G (1) 6-32 screw, chassis ground lug
36 HDMI INPUT
(4) for DMPS-100; (5) for DMPS-200 and
DMPS-300: 19-pin Type A HDMI female,
digital video/audio inputs;
Signal types: HDMI, DVI, or DisplayPort
Multimode
3, 4
37 RGB INPUT (3) DB15HD female, analog RGB/video inputs;
Signal Types: RGBHV, component, S-video, or
composite
5, 6
Formats: RGBHV, RGBS, RGSB, YPbPr, Y/C,
NTSC or PAL;
Input level: 0.5 to 1.5 Vp-p with built-in dc
restoration;
Input impedance: 75 Ω nominal;
Sync detection: RGBHV, RGBS, RG
S
B,
YPbPr; Sync input level: 3 to 5 Vp-p;
Sync input impedance: 2.2k Ω;
NOTE: RGB inputs 3-5 and HDMI inputs 3-5
are mutually exclusive; HDMI overrides RGB
when using the auto-switching feature
38 S/PDIF Part of INPUT 4 for DMPS-100; part of INPUT5
for DMPS-200 and DMPS-300:
(1) RCA female,
S/PDIF coaxial digital audio input;
Input impedance: 75 Ω;
NOTE: The respective S/PDIF inputs and
HDMI inputs are mutually exclusive; HDMI
overrides S/PDIF when using the
auto-switching feature.
Supported format is 2-channel PCM
39 Y, P
B
/Y, P
R
/C/COMP Part of INPUT 4 for DMPS-100; part of INPUT
5 for DMPS-200 and DMPS-300: (3) BNC
female comprising (1) auto-sensing multi-
format analog video input;
Signal types: Component, S-video, or
composite; Formats: YPbPr, Y/C, NTSC or
PAL; Input level: 1 Vp-p nominal;
Input impedance: 75 Ω nominal;
NOTE: The respective video inputs, RGB
inputs, and HDMI inputs are mutually
exclusive; HDMI and RGB override video
when using the auto-switching feature
(Continued on following page)
