Supplemental Guide – DOC. 7927G TSW-560/TSW-760/TSW-1060: Touch Screens• 9

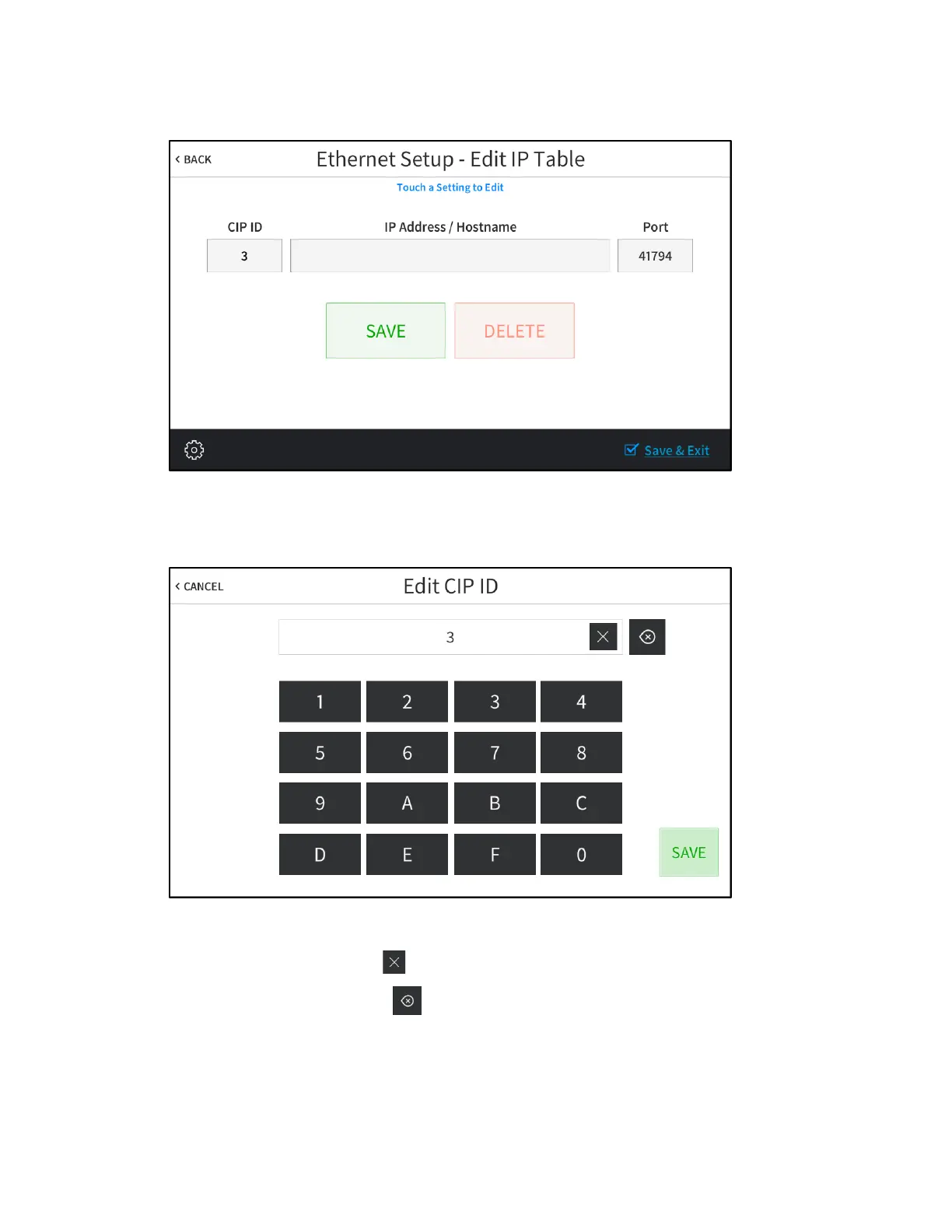

Ethernet Setup - Edit IP Table Screen
Tap the CIP ID text field to display the on-screen hex keypad.
On-Screen Hex Keypad
• Use the keypad to make the new entry.
• Tap the clear button in the text field to clear any previous entry.
• Tap the delete button to delete the last digit.
• Tap SAVE to save a new entry or tap < CANCEL
to discard any changes. The
display returns to the
Ethernet Setup - Edit IP Table screen.
On the Ethernet Setup - Edit IP Table screen, tap the IP Address / Hostname text field
to display an on-screen keyboard.
