Crestron TSW-760 Supplemental Guide

12 • TSW-560/TSW-760/TSW-1060: Touch Screens Supplemental Guide – DOC. 7927G
Display Setup
Tap Display Setup on the Setup screen to display the Display Setup screen.

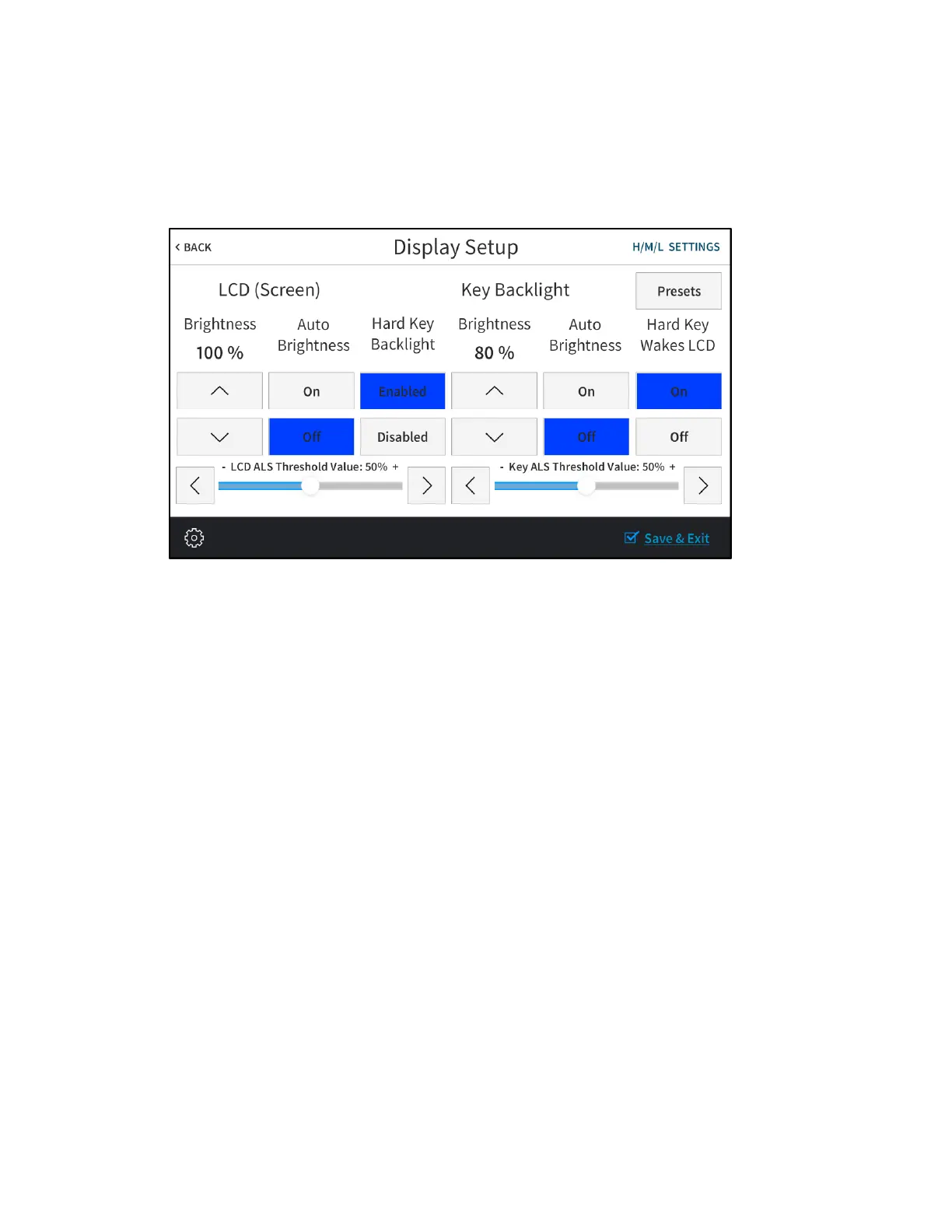

Display Setup Screen
Use the Display Setup screen to adjust the LCD display and hard key backlight settings.
• LCD (Screen)
‒ Tap the up and down arrow buttons under Brightness to raise or lower the
LCD display brightness level incrementally from 0 to 100%.
‒ Tap On or Off under Auto Brightness to turn automatic brightness on or off
for the display.
‒ Tap the left and right arrow buttons on either side of LCD ALS Threshold
Value to adjust the ALS (ambient light sensor) threshold value for switching
between high and low auto-brightness presets on the LCD display.
• Key Backlight
‒ Tap Enabled or Disabled under Hard Key Backlight to enable or disable the
hard key backlight.
‒ Tap the up and down arrow buttons under Brightness to raise or lower the
key backlight brightness level incrementally from 0 to 100%.
‒ Tap On or Off under Auto Brightness to turn automatic brightness on or off
for the key backlight.
‒ Tap On or Off under Hard Key Wakes LCD to turn the ability to wake the
LCD by pressing any hard key on or off.
‒ Tap the left and right arrow buttons on either side of Key ALS Threshold
Value to adjust the ALS threshold value for switching between high and low
auto-brightness presets on the key backlight.

Crestron TSW-760 Specifications

General

Resolution	1280 x 800 pixels
Touch Technology	Capacitive
Network	10/100 Ethernet
Operating System	Crestron OS
Operating Temperature	32° to 104°F (0° to 40°C)
Memory	2 GB RAM
Display Size	7 in
Wi-Fi	802.11a/b/g/n
Bluetooth	Bluetooth 4.0
Power	PoE (Power over Ethernet)
Mounting	table top mount
