Crestron TSW-760 Supplemental Guide

Supplemental Guide – DOC. 7927G TSW-560/TSW-760/TSW-1060: Touch Screens• 11
Audio Setup
Tap Audio Setup on the Setup screen to display the Audio Setup screen.

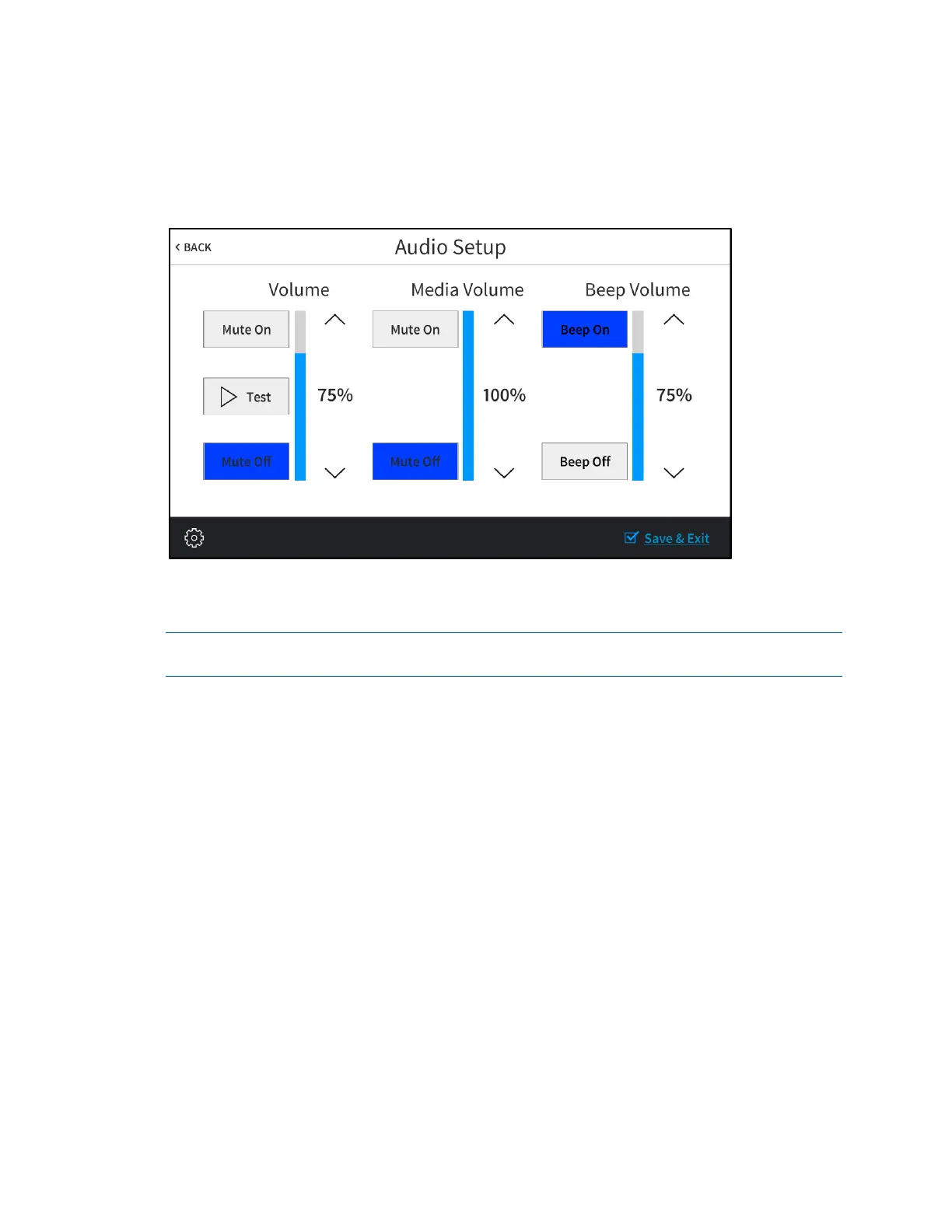

Audio Setup Screen
Use the Audio Setup screen to control the master volume, media volume, and beep
volume settings for the touch screen.
NOTE: The Media Volume controls adjust the H.264 streaming media level in relation to
the Volume controls.
• Volume
‒ Tap the up and down arrow buttons to raise or lower the touch screen master
volume incrementally from 0 to 100%.
‒ Tap Mute On or Mute Off to mute or unmute the master volume.
‒ Tap Test to play a test recording at the current volume level.
• Media Volume
‒ Tap the up and down arrow buttons to raise or lower the touch screen media
volume incrementally from 0 to 100%.
‒ Tap Mute On or Mute Off to mute or unmute the media volume.
• Beep Volume
‒ Tap the up and down arrow buttons to raise or lower the touch screen beep
volume incrementally from 0 to 100%.
‒ Tap Beep On or Beep Off to turn the beep volume on or off.
Tap < BACK to return to the Setup screen.

Crestron TSW-760 Specifications

General

Resolution	1280 x 800 pixels
Touch Technology	Capacitive
Network	10/100 Ethernet
Operating System	Crestron OS
Operating Temperature	32° to 104°F (0° to 40°C)
Memory	2 GB RAM
Display Size	7 in
Wi-Fi	802.11a/b/g/n
Bluetooth	Bluetooth 4.0
Power	PoE (Power over Ethernet)
Mounting	table top mount
