Fixing of the charger is made by 4 x M5 round head screws (screw head diameter less than 10 mm).
Centre distance: see section 3.1.

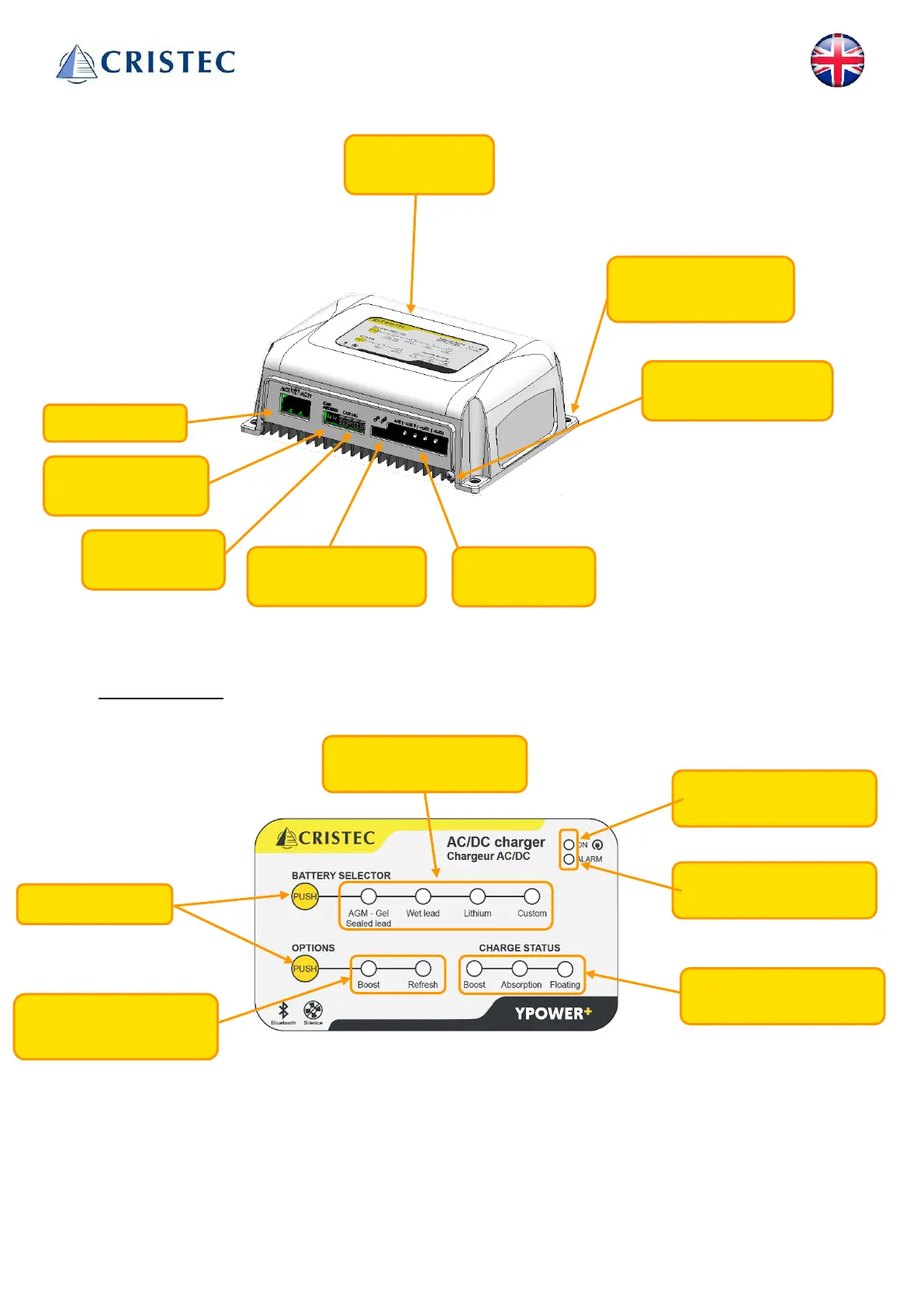

2.3 USER INTERFACE
Fixing of the charger
with 4 x M5 screws
User Interface
Protection Earth
(PE)
AC input
CANBUS address
selector
Output DC
connector
2 CANBUS
connectors
connector
Push buttons.
Battery type indicator
Boost and/or Refresh
indicator
AC input indicator
Alarm indicator
Charging phase indicator
