WAGO WINSTA connector reference 770-103 allows the insertion of 2 cables made with 3 wires of 4mm²
each.
The type of cable (H07-VK, MX, etc.) should be defined by the installer according to the application type and
applicable standards.
For applications where the electricity network may be either 115VAC or 230VAC, always choose the cross
section recommended for 115VAC.
Always use cable markers without insulating collars in accordance with installation standards governing AC
network input connections.
The rating of the upstream circuit-breakers should match the equipment's requirements.

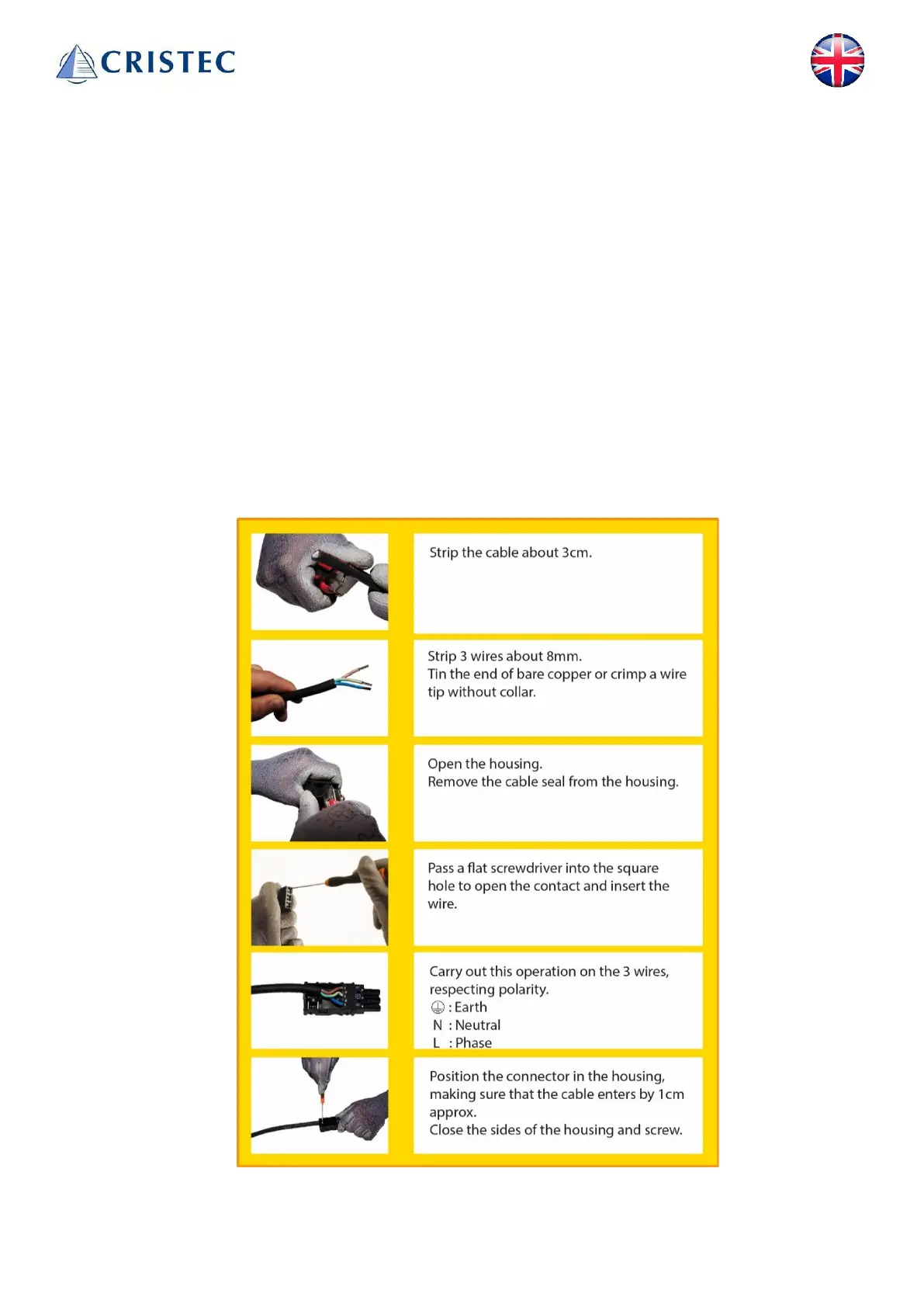

Mounting of AC supply connector
The AC input must be made using a WAGO connector type WINSTA reference 770-103. (Not provided in OE
version).
