Crow Arrowhead Elite V6 - Input and Output Configuration; Input Configurations (Zone Wiring Details)

Page 7

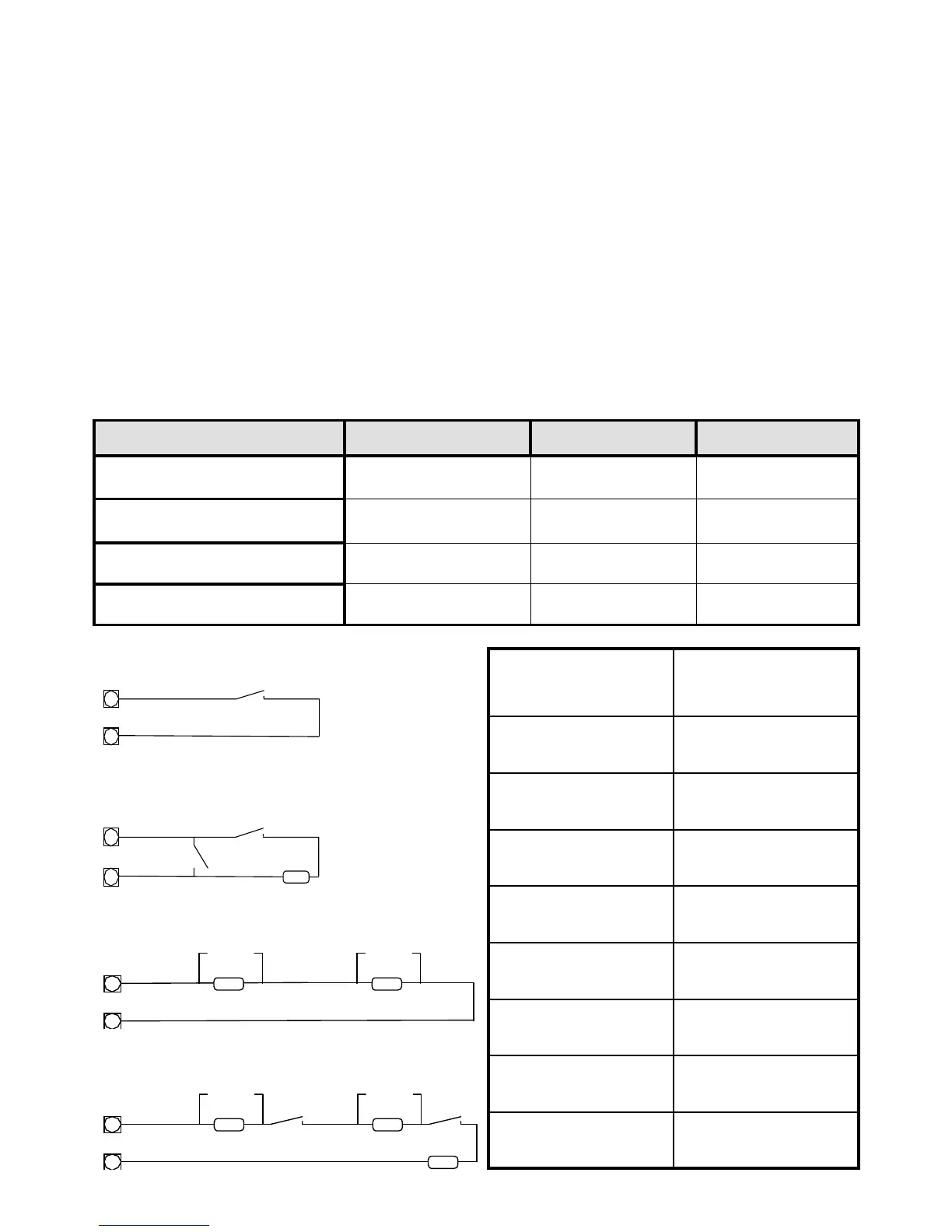

INPUT CONFIGURATIONS (ZONE WIRING DETAILS)
The Elite V6 has 10 separate programmable monitored analogue inputs,
8 x Programmable, multi-state detection inputs
1 x Programmable tamper input
1 x Programmable key-switch input
Each input must be terminated with a short or the appropriate combination of end-of-line resistors,
depending upon the programmed configuration.
ZONE INPUTS - Each of the 8 zone inputs can be independently assigned one of the following configuration options;
Type 1(8Z) 8 Zone Short circuit input NO-End-of-Line (EOL).
Type 2(8Z) 8 Zone Single-End-of-Line 2k2 (EOL) with no tamper.
Type 3(16Z) 16 Zone Double-End-of-Line (EOL) No Tamper.
Type 4(16Z) 16 Zone Double-End-of-Line (EOL) With open & short circuit Tamper.
The following table shows end-of-line resistor configurations. The reference to LEDS in bold below relate to the
program option setting at addresses P410E & P419E. The options 1-8 at addresses P410E & P419E relate to zone
inputs 1-8. If an input is set to EOL at address P419E then it relates to the single zone being a 2K2 resistor but if
zone doubling is turned on for the same input (P410E LED On) then EOL means that the tamper resistor is 2K2.
Zone Type Low Zone Hi Zone Tamper
Type 1(8 Zone No EOL)
P410E LEDS Off, P419E LEDS Off
N / A (Short circuit)
[ No Resistors Required ]
None
[ N / A ]
None
[ N / A ]
Type 2(8 Zone EOL, No Tamper)
P410E LEDS Off, P419E LEDS On
2k2
(Red, Red, Red, Gold)
None
[ N / A ]
None
[ N / A ]
Type 3(16 Zone EOL, No Tamper)
P410E LEDS On, P419E LEDS Off
4k7
(Yellow, Purple, Red, Gold)
8k2
(Grey, Red, Red, Gold)
None
[ N / A ]
Type 4(16 Zone EOL, with Tamper)
P410E LEDS On, P419E LEDS On
4k7
(Yellow, Purple, Red, Gold)
8k2
(Grey, Red, Red, Gold)
2k2
(Red, Red, Red, Gold)
LED at Address P410E
(Zone Doubling)
ª
LED at Address P419E
(EOL or Tamper)
ª
LED # 1
Off = Zone 1 only
On = Zones 1 & 9
LED # 1
Off = No EOL
On = Zone EOL or Tamper
LED # 2
Off = Zone 2 only
On = Zones 2 & 10
LED # 2
Off = No EOL
On = Zone EOL or Tamper
LED # 3
Off = Zone 3 only
On = Zones 3 & 11
LED # 3
Off = No EOL
On = Zone EOL or Tamper
LED # 4
Off = Zone 4 only
On = Zones 4 & 12
LED # 4
Off = No EOL
On = Zone EOL or Tamper
LED # 5
Off = Zone 5 only
On = Zones 5 & 13
LED # 5
Off = No EOL
On = Zone EOL or Tamper
LED # 6
Off = Zone 6 only
On = Zones 6 & 14
LED # 6
Off = No EOL
On = Zone EOL or Tamper
LED # 7
Off = Zone 7 only
On = Zones 7 & 15
LED # 7
Off = No EOL
On = Zone EOL or Tamper
LED # 8
Off = Zone 8 only
On = Zones 8 & 16
LED # 8
Off = No EOL
On = Zone EOL or Tamper
Type 1 (8 Zones, Short Circuit)
n/c
Type 2 (8 Zones, 2k2 EOL, No tamper)
n/c
n/o
2k2
Type 3 (16 Zones, 4k7 & 8k2 EOL with No tamper)
A lar m Co ntac t
n/c or n/o
4k7
A lar m Co ntac t
n/c or n/o
8k2
Type 4 (16 Zones, 4k7 & 8k2 EOL , 2k2 EOL for tamper)
2k2
Tamper
A larm Contac t
n/c or n/o
4k7
A larm Contac t
n/c or n/o
8k2
Tamper
