Crown Macro-Tech MA-5002VZ - PIP Terminator Shelf Assembly, View A

MA-5002VZ Service Manual 130446-1 Rev A
7-20 Exploded View Parts
©2000 Crown International, Inc.

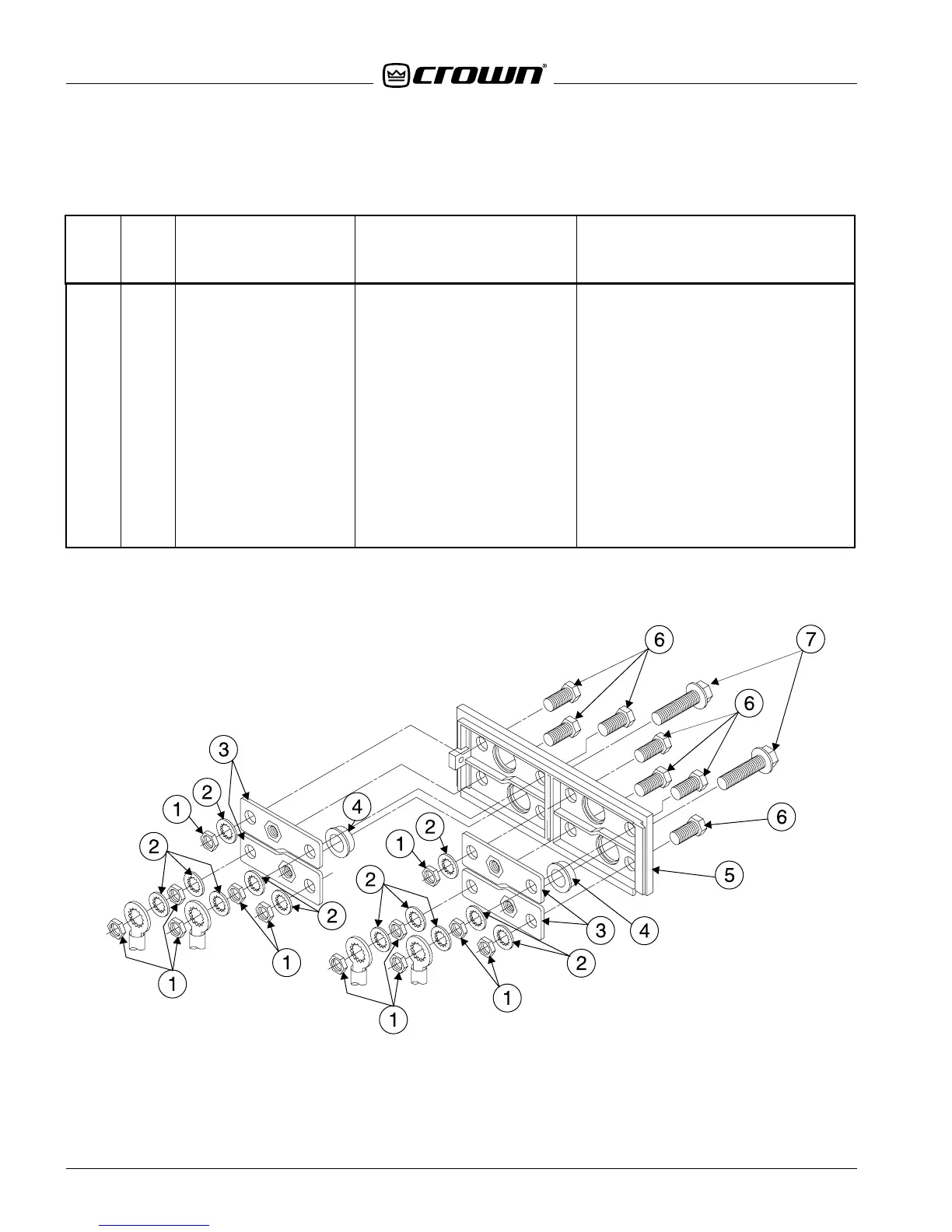

Figure 7.10 PIP Terminator Shelf Assembly, View "A"
7.10 PIP Terminator Shelf Assembly, View "A"
(USA Units only)
NotesItem # QTY Part Number Description
1 16 C 8835-8 .25-32 Nut
2 12 A10094-9 Lockwasher, .25 Int. Star
3 4 M21078-7 Terminator Bar
4 4 D 7924-0 Bushing, Steel
5 1 D 7816-8 Terminator Panel
6 8 C 8794-7 Un-insulated Banana Jack
7 4 A10170-12516 .25-20x1 Machine Screw Output, slot hex-washer head
