8.3.7 4 -20mA
Settings → 4-20mA
Settings → 4-20mA → Channel 1
0.000 m³/h
1098.9 m³/h
169,8 m/s 1098.9 m³/h
1098.9 m³/h
0.000 m³/h
169,8 m/s 1098.9 m³/h

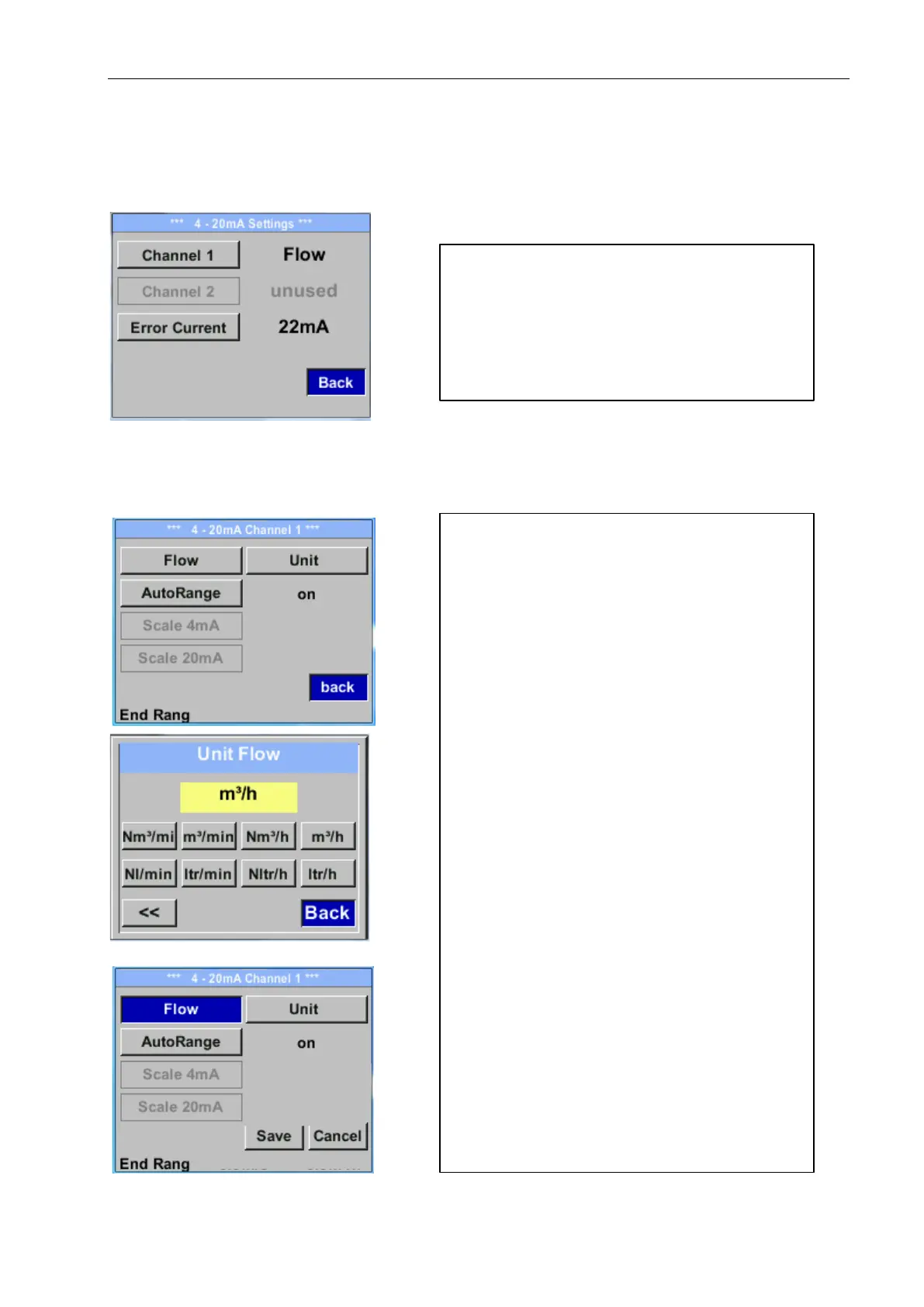

To make changes, first select a menu with button
„>“ and confirm selection by pressing „OK“ .
The 4-20 mA Analogue output of the Sensor VA
550 can be individually adjusted.
It is possible to assign following values
„Temperature“, „Velocity“ und „Flow“ to the
channel CH 1.
To make changes, first select the value item with
button „>“.and confirm
Moving between the different measurements
values or to deactivate the 4-20mA with setting to
„unused“ by pressing „OK“.
To the selected measurement value a
corresponding / appropriate unit needs to be
defined. Select „Unit“ with „>“ and open menu
with „OK“.
Select required unit with „>“ and take over by
pressing „OK“.
Here e.g. for the measurement value Flow,
procedure for the other measurements values is
analog.
For saving the changes done press button
„Save“ to discard the changes press button
“Cancel”.
Leaving the menu with „Back“.
