CTX DZ33I - Base Section Assembly

D. Base Section Assembly
1. Locate the carton containing the oven base. Remove and inventory the contents. Refer to the correct
parts lists below and also to Figure 2-1.

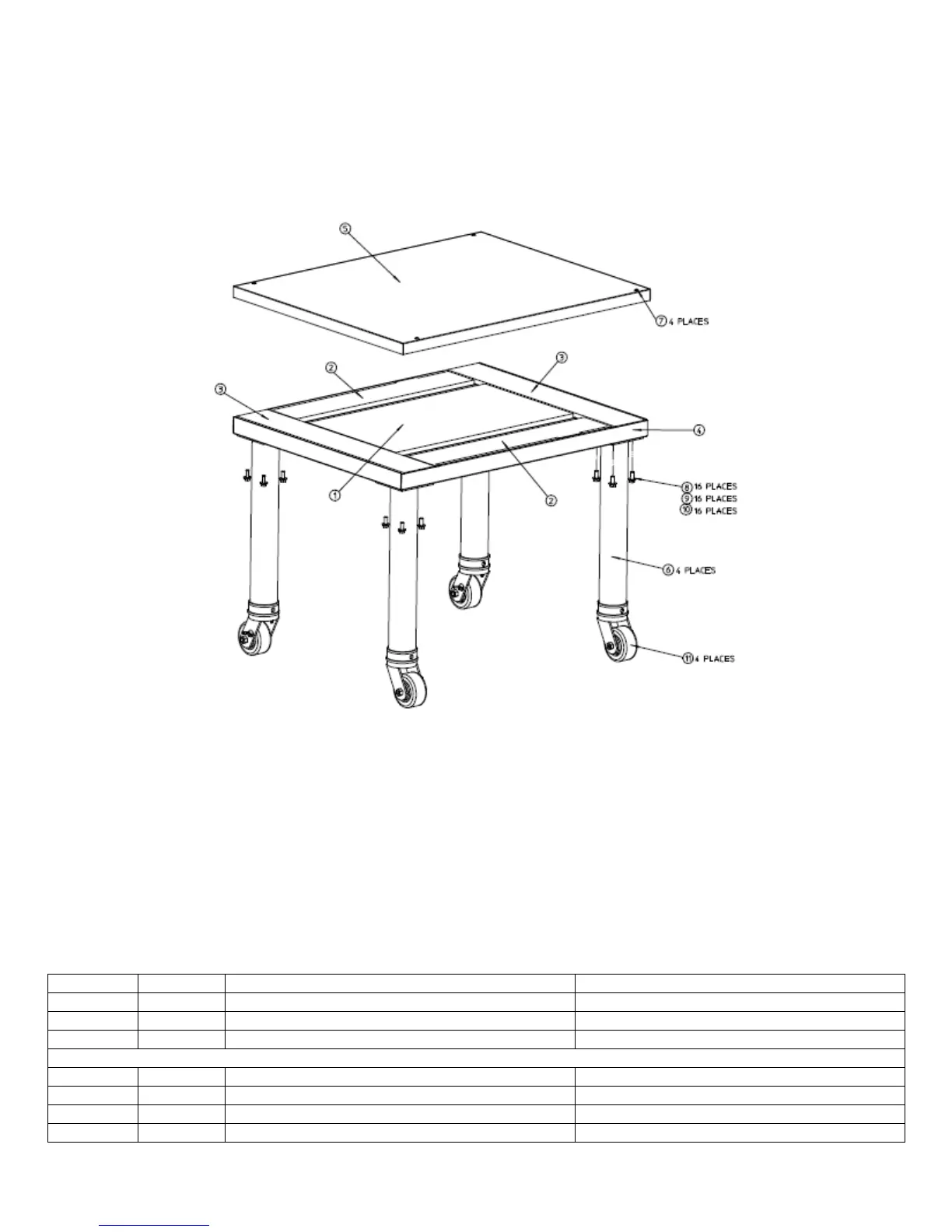

Figure 2-1
Single Oven Stand Parts
Item
Qty,
Part Number
Description
1
1
67880
INSUL, BASE PART A
2
2
67881
INSUL, BASE PART C
3
2
67882
INSUL, BASE PART B
PARTS LISTED ABOVE ARE FROM 69978 KIT, DZ33I INSULATION
4
1
67884
WLDMT. BASE DZ33
5
1
67614
PANEL, TOP
6
4
66948
ASSY. LEG, CASTER
7
4
59156
SCR, SL TRUSS HD SS 10-32X1-1/2”
