SECTION 3 – OPERATION
A. LOCATION OF CONTROLS
1. Operation Controls
The following information provides a basic description of the oven’s controls, their locations and the
functions they perform. It is necessary that the operator be familiar with them.
Fan Warning Light: The light will illuminate
when the inside control compartment
reaches 130F (54.4C).
Cooling Fan, Grille and Filter: Air is drawn
through the grille and foam filter by a
24 volt DC cooling fan located
Immediately behind. The fan circulates air
throughout the entire electrical raceway to
cool front panel, top panel, and the electrical components.
Circuit Breaker: (3 amp) Provides
overload protection for the control circuit.

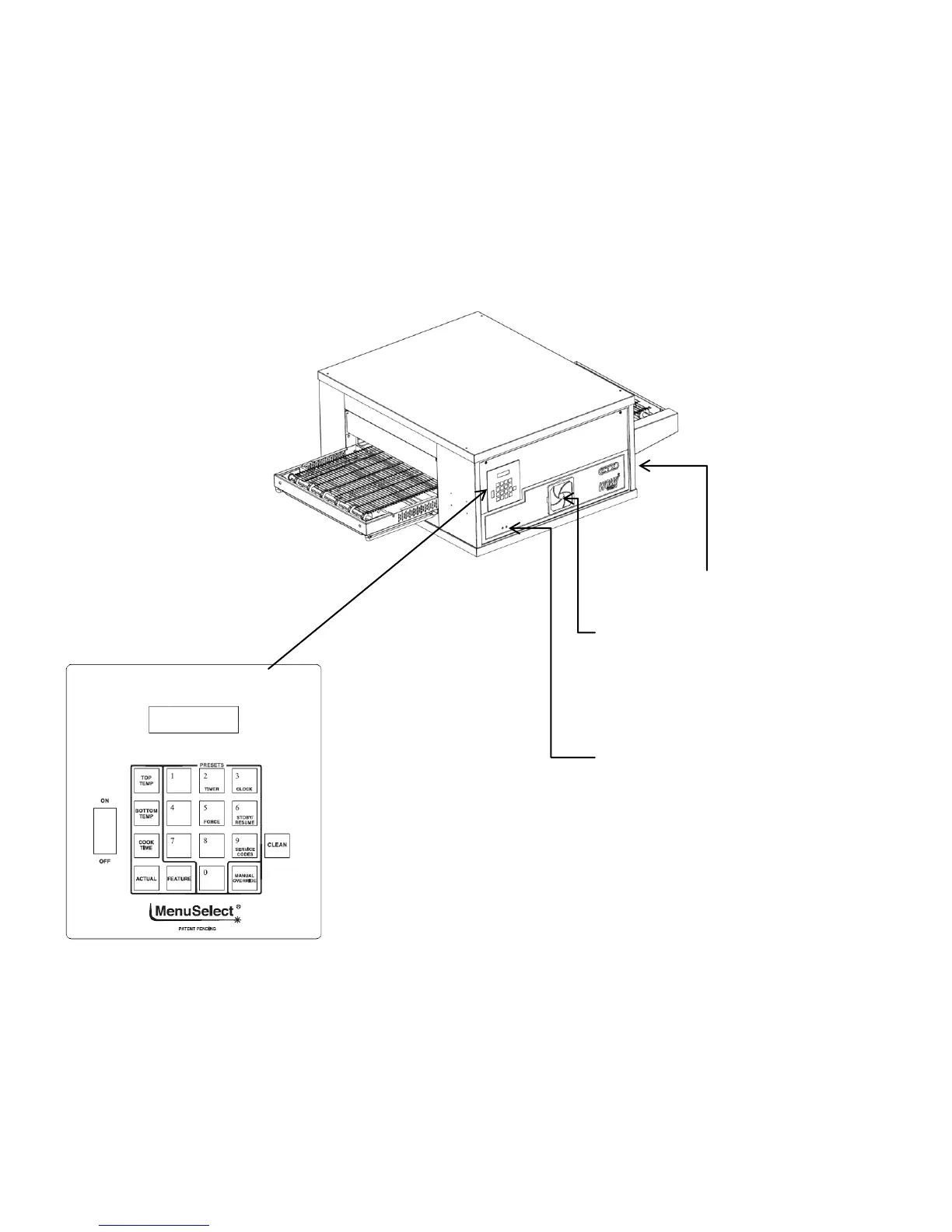

Figure 3-1
Operating Controls
