8-46 Periodic Maintenance and Adjustment
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off the
electrical circuit in question.

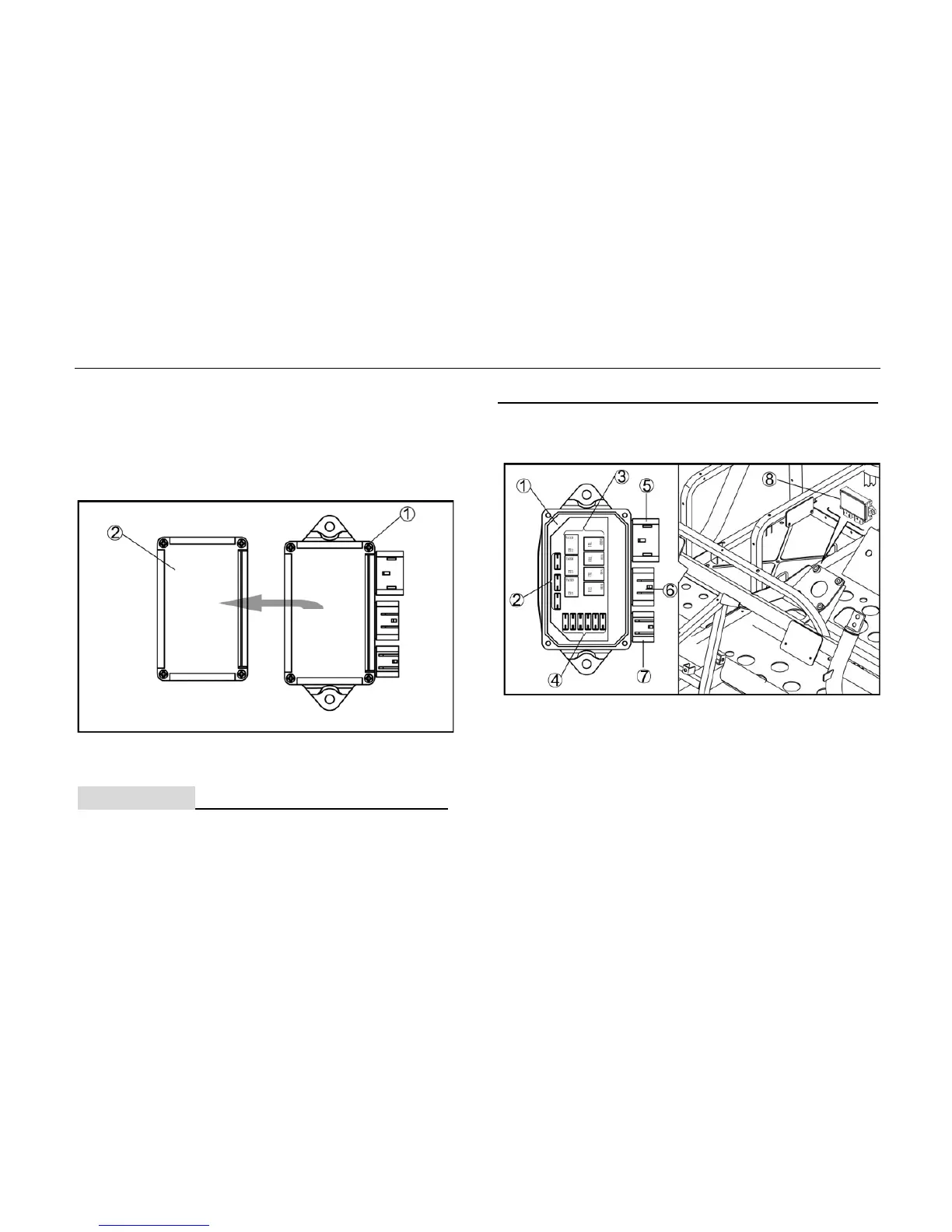

2. Remove the front cover, then unplug the
relay assembly and open the relay
cover.
1. Screw M3 （×4） 2. Relay cover
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing
a fuse.
3. Remove the blown fuse, and then install
a new fuse of the specified amperage.
1. Relay assembly 2. Backup fuse
3. Relay 4. Fuse box
5.
Adapter connector 3 6. Adapter connector 2
7. Adapter connector 1 8. ECU
