© CUB CAMPERS • H16 OWNER’S MANUAL • REVISION 1 – 31/10/2023 PAGE 28 of 53
17. WATER TANKS
The H16 is fitted with a 100L water tank, and one 100L grey water tank.
• All water inlets are in a steel box behind the driver side wheel, featuring domestic hose
fitting inlets for each tank and a mains water inlet for connecting to town water with
a hose. When connected, the town water will pressurize the water system and bypass
the water tank.

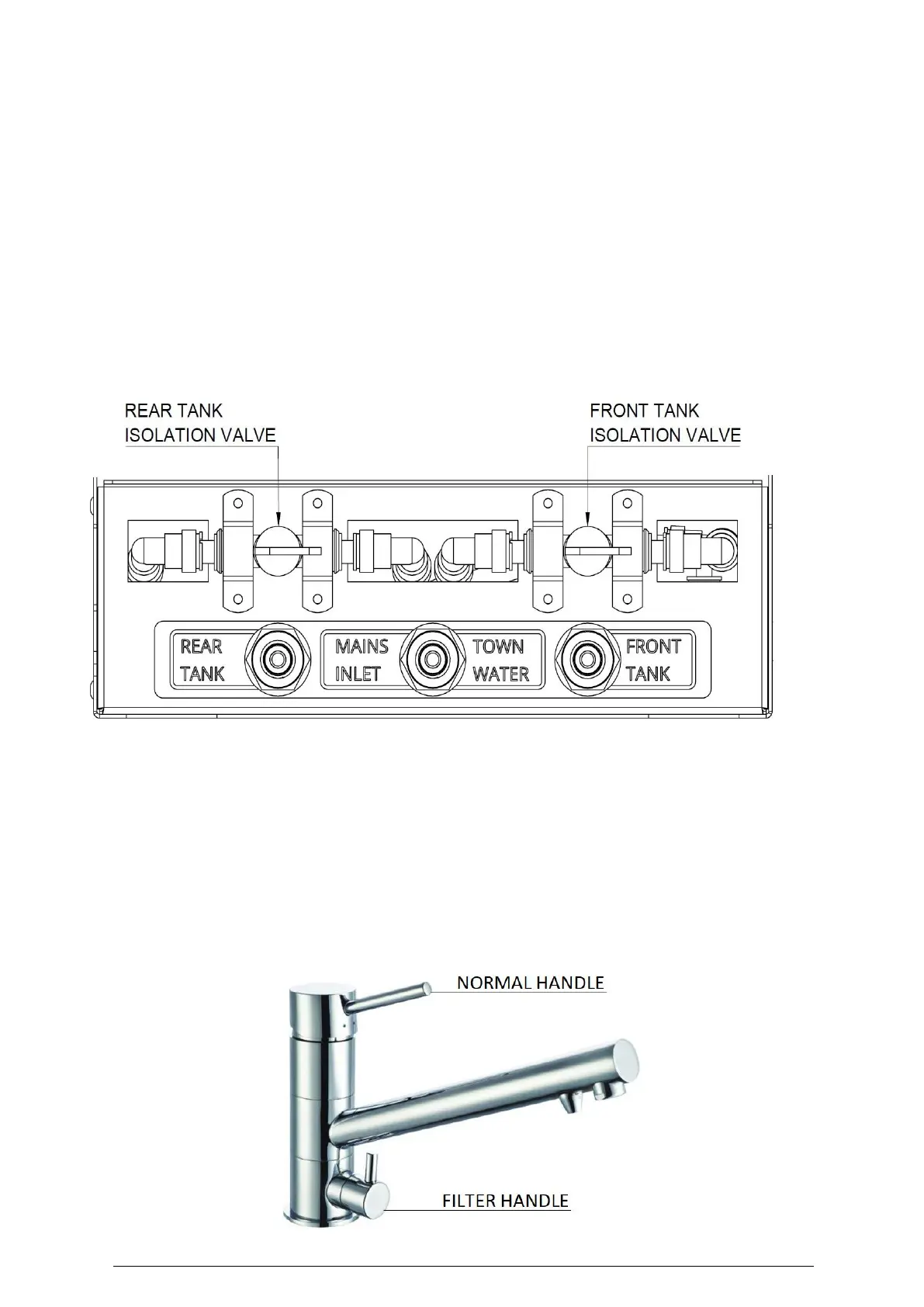

• This water box also includes isolation tap pictured below in the open positions. The
tank can be filled while they are isolated. Make sure at least one valve is open before
using the water pump.
Image is if 2
nd
tank is optioned.
• The grey water tank has a ball valve located behind the driver side wheel.
• The water tank gauges are shown on the REDARC display unit if a TVMS is optioned or
on the water level indicator
• The internal kitchenette tap features an inbuilt water filter. The filter canister for this
is accessible by removing the two top drawers. To remove the drawers, pull out all the
way and then firmly lift up and the drawer should click out of the track.
