© CUB CAMPERS • H16 OWNER’S MANUAL • REVISION 1 – 31/10/2023 PAGE 41 of 53
22. ENSUITE ROOF VENT

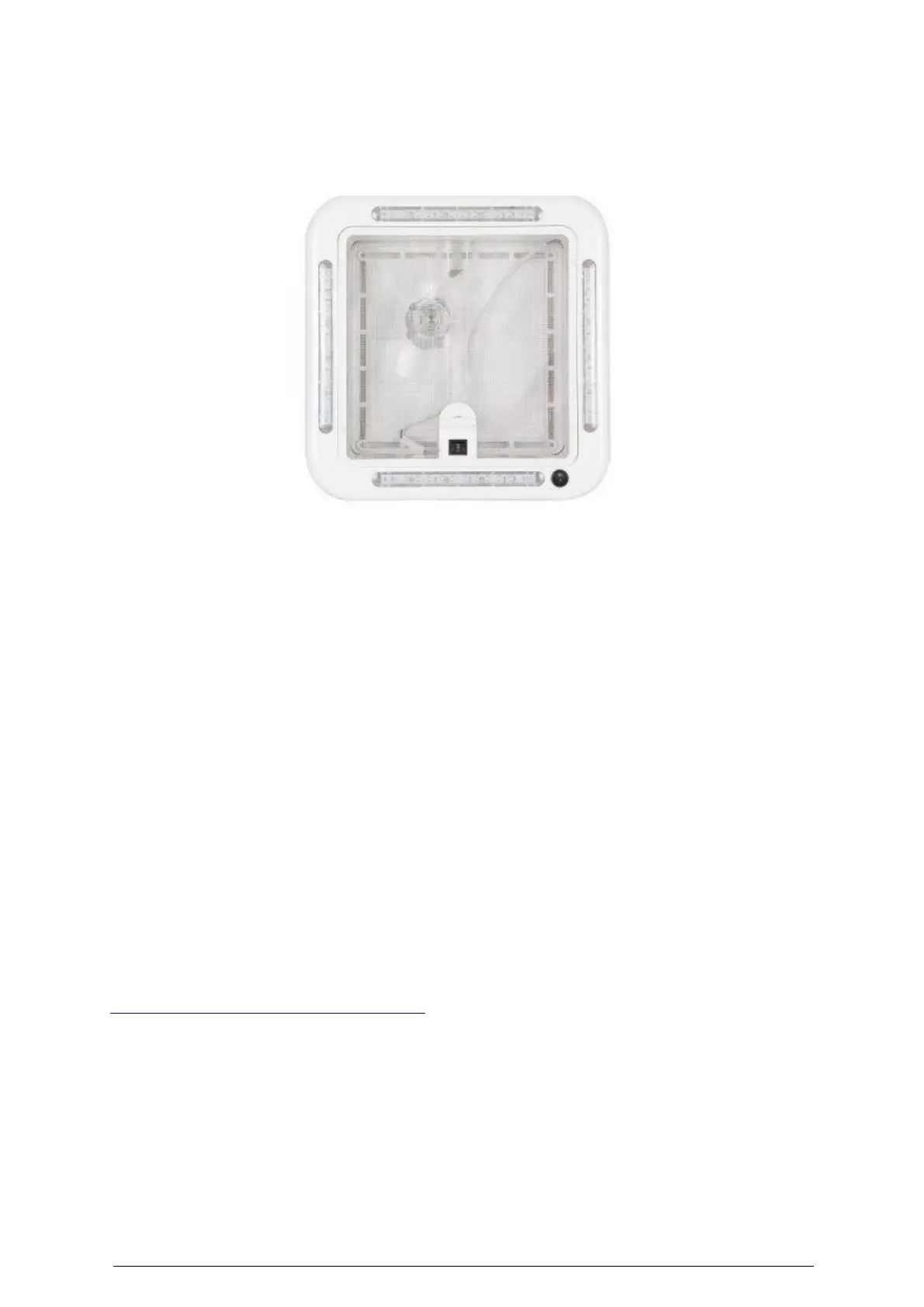

The H16 is fitted with a Finch Australia 12 Volt Shower Hatch with LED
• The hatch features permanent / fixed ventilation
• The 2-way fan means it can be used to either extract steam from the bathroom or
bring in the fresh air from outside.
• The flywire screen is easily removable for cleaning.
NOTE: Make sure vent is closed when driving or if there is strong wind or rain to prevent
damage.
23. ENTRY DOOR
The H16 Camec entry door with flyscreen is fitted with a lower vent for cross flow
ventilation.
NOTE: Do NOT obstruct the vent it is required to allow air flow in the cabin where a gas
installation is fitted.
24. TABLE LEGS
Click for LAGUN Table Leg User Manual
Inside the H16 there are two tables on Lagun table legs which can support approximately 22kg
of weight each. For more information see the provided User Manual.
• The bottom handle releases the vertical height adjustment. Be careful when releasing
as gravity will pull it down.
• The top handles can release to allow the table to swivel 360 degrees.
