Cub H16 - H16 Packing Weight Distribution Guide

© CUB CAMPERS • H16 OWNER’S MANUAL • REVISION 1 – 31/10/2023 PAGE 6 of 53

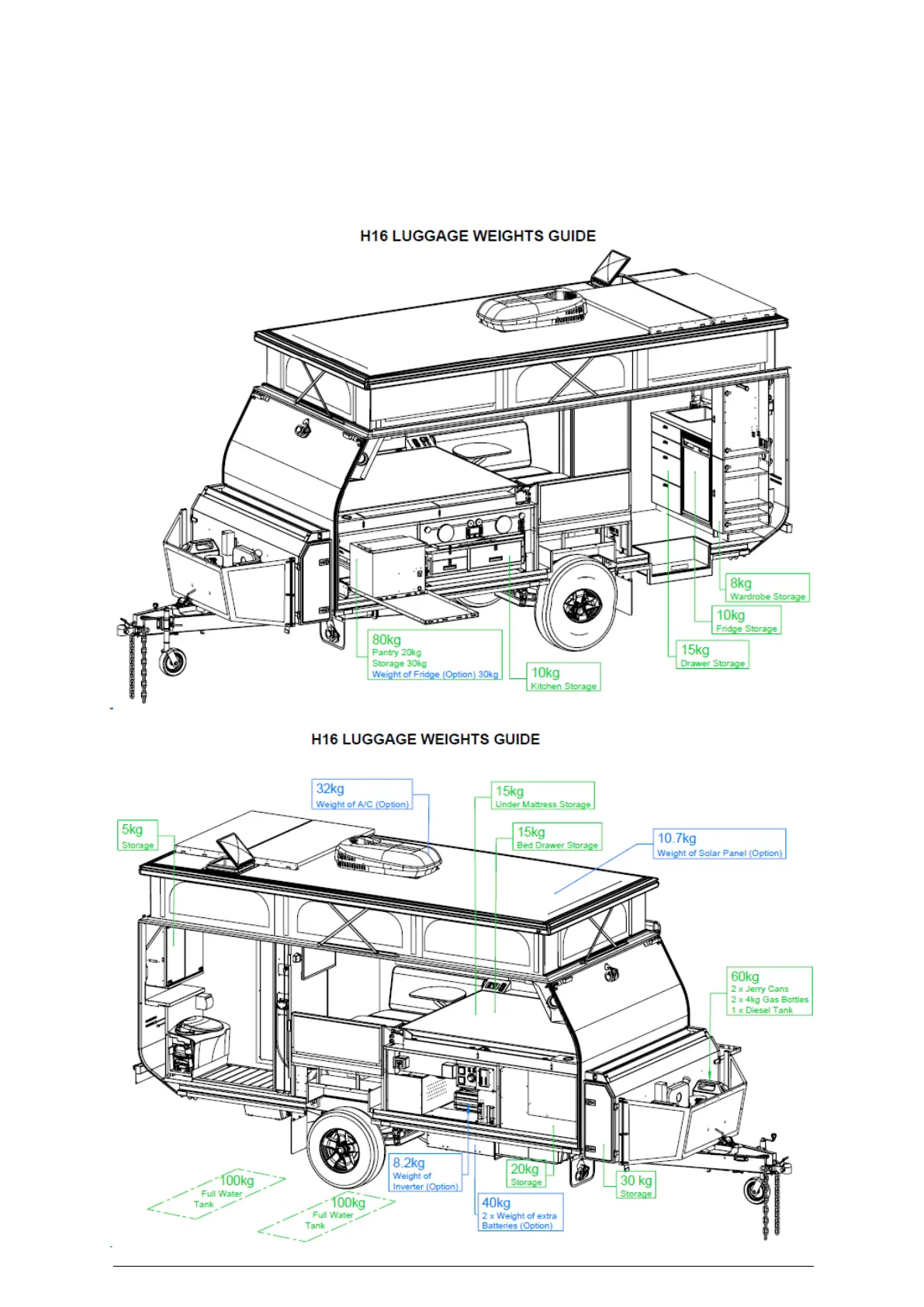

H16 - Packing Weight Distribution Guide
It is important to note that options added to your caravan at the time of purchase
or aftermarket will affect these weights – therefore this illustration is a guide only
and is shown with several optional upgrades.
