Cubicon Style Plus-A15 Series User Manual

Name: Cubicon Style Plus-A15 Series
Brand: Cubicon
Rating: 4 (1 reviews)

71 pages

To Next Page

To Previous Page

CUBICON Style Plus-A15 Series User Manual

Motion(Motor)

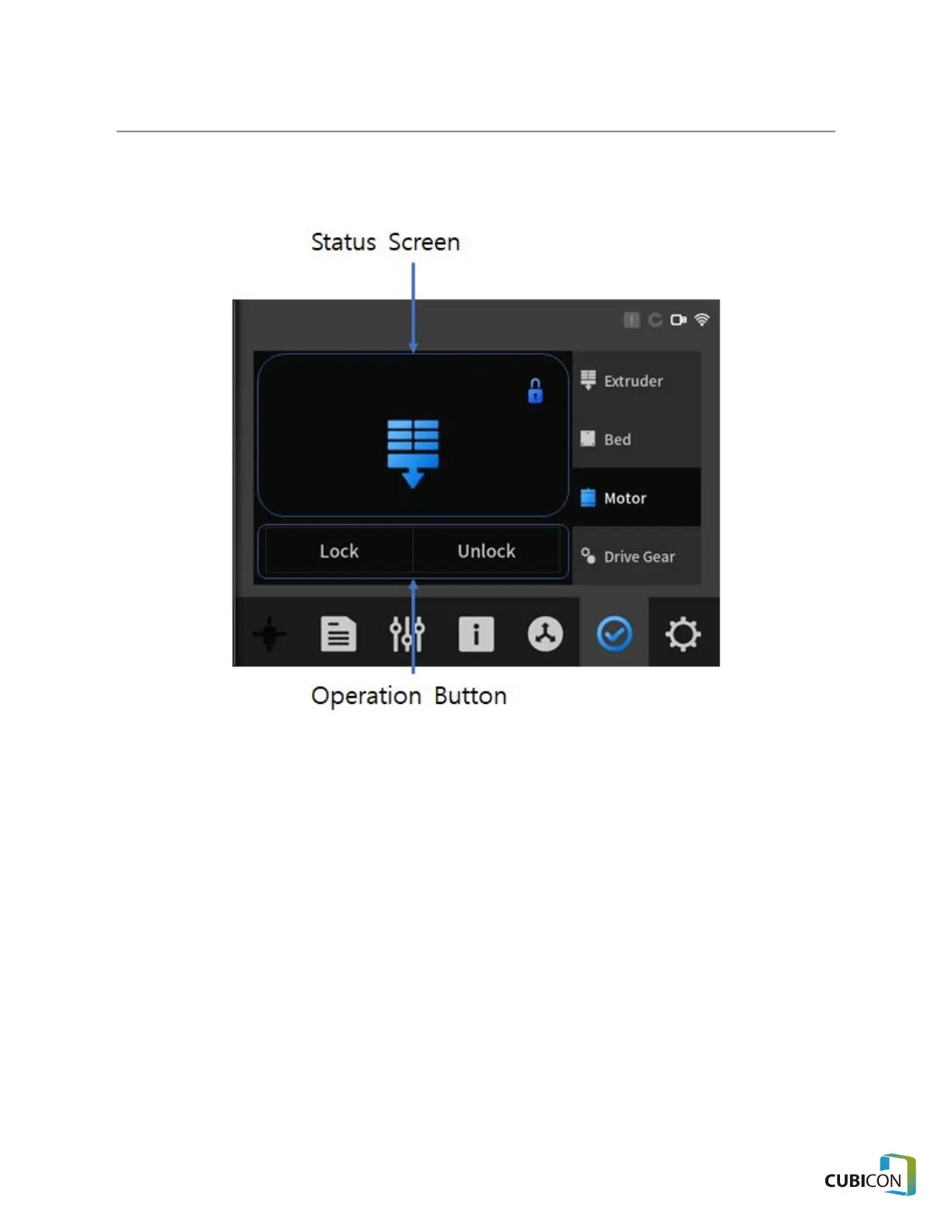

It is a screen that can test the operation by setting/clearing the lock of an extruder operation motor.

● Lock button: Sets motors of X/Y and Z axes to a lock state.

● Unlock button: Sets motors of X/Y and Z axes to an unlock state, and allows the Extruder and

the bed to move manually.

Table of Contents3
Service & Safety5
Service5
Caution for the Safety6
Location of Labels9
Components & Preparation for the Use12
Components and Accessories12
Opening of Packaging14
Name of each Part16
Mounting the Clean Filter21
Turing on the Printer22
Mounting the Filament Spool23
Assembling and Disassembling the Filament Hose25
Overview26
Print29
File30
Control31
Control(Filament)31
Control(Preheat)32
State33
Motion34
Motion(Extruder)34
Motion(Bed)35
Motion(Motor)36
Motion(Drive Gear)37
Inspection38
Settings39
Settings(Function)39
Settings(Network)41
Settings(Firmware)43
Settings(Language)44
Settings(System)44
Settings(History)46
Printing47
Maintenance49
Maintenance of the Extruder49
Disassembly of the Extruder Module49
Extruder(Management)53
How to Maintain the Nozzle in a Good Condition53
Cleaning the Inside of the Nozzle Using the Loading53
Cleaning the Inside of the Nozzle Using the Nozzle Management Pin54
Cautions Regarding the Use of the Nozzle Management Pin55
Cleaning the Outside of the Nozzle56
Replacing the Nozzle Kit of the Extruder Module58
Maintenance of the Heating Bed59
Replacing the Clean Filter61
Update62
Using a USB Memory Stick62
Automatic Update63
Trouble Shooting64
Defect of the Device64
Filament Can't be Discharged through the Nozzle64
Data in a USB Drive Can't be Viewed65
Data in a USB Drive Can't be Printed65
When Printing, the Printing Doesn't Progress as Auto Leveling Fails65
The Function of Filament Existence Detection Sensor Doesn't Work Normally66
Filament Auto Loading Function Doesn't Work66
It Can't Recognize a Genuine Filament66
Operation Gets Interrupted During Printing67
Problems in the Printout and the Operation Errors67
Network Connection Can't be Made between Cubicreator and the Device67
A Sculpture Doesn't Get Adhered to the Base (Heating Bed) and It Gets Taken off67
The Part of a Sculpture, Mostly the Edge of the Base Gets Taken off from the Bottom68
Middle of a Sculpture Gets Cracked68
A Sculpture Can't be Taken off from the Floor (Heating Bed)68
Even Though the Printing Is Completed, Only a Part of a Sculpture Has Been Printed and some Parts Haven't Been Printed or Have Printed Abnormally69
Product Specifications70
